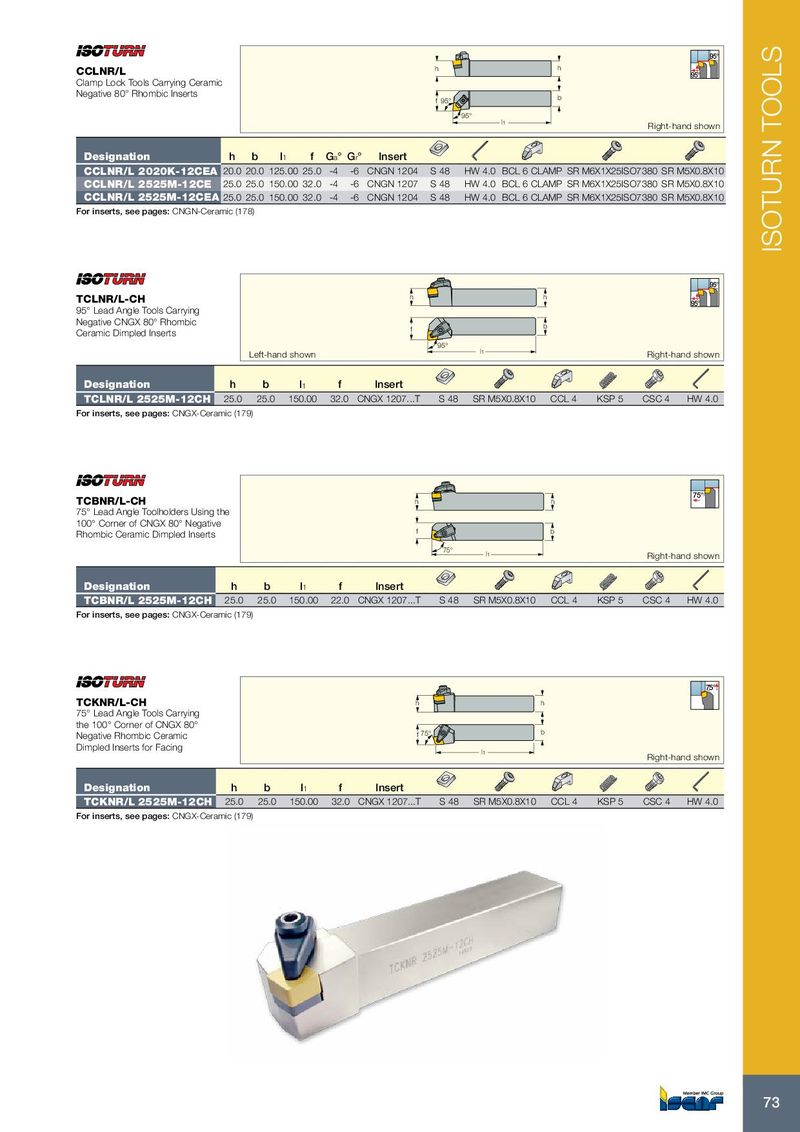

CCLNR/L h h

Clamp Lock Tools Carrying Ceramic Negative 80° Rhombic Inserts f 95° b 95°

l1 Right-hand shown

Designationhbl1f Ga° Gr°Insert
CCLNR/L 2020K-12CEA20.0 20.0 125.00 25.0 -4-6 CNGN 1204S 48HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10
CCLNR/L 2525M-12CE25.0 25.0 150.00 32.0 -4-6 CNGN 1207S 48HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10
CCLNR/L 2525M-12CEA 25.0 25.0 150.00 32.0 -4-6 CNGN 1204S 48HW 4.0 BCL 6 CLAMP SR M6X1X25ISO7380 SR M5X0.8X10

For inserts, see pages: CNGN-Ceramic (178)

95°

TCLNR/L-CH h h

95° 95° Lead Angle Tools Carrying Negative CNGX 80° Rhombic f b

Ceramic Dimpled Inserts 95°

Left-hand shown l1 Right-hand shown

Designationhbl1fInsert
TCLNR/L 2525M-12CH25.025.0150.0032.0 CNGX 1207...TS 48SR M5X0.8X10CCL 4KSP 5CSC 4HW 4.0

For inserts, see pages: CNGX-Ceramic (179)

TCBNR/L-CH 75° h h 75° Lead Angle Toolholders Using the 100° Corner of CNGX 80° Negative

Rhombic Ceramic Dimpled Inserts f b

75°lRight-hand shown
1
Designationhbl1fInsert
TCBNR/L 2525M-12CH25.025.0150.0022.0 CNGX 1207...TS 48SR M5X0.8X10CCL 4KSP 5CSC 4HW 4.0

For inserts, see pages: CNGX-Ceramic (179)

75°

TCKNR/L-CHhh
75° Lead Angle Tools Carrying
the 100° Corner of CNGX 80°
Negative Rhombic Ceramicf 75°b
Dimpled Inserts for Facing
Right-hand shown l 1
Designationhbl1fInsert
TCKNR/L 2525M-12CH25.025.0150.0032.0 CNGX 1207...TS 48SR M5X0.8X10CCL 4KSP 5CSC 4HW 4.0

For inserts, see pages: CNGX-Ceramic (179)
