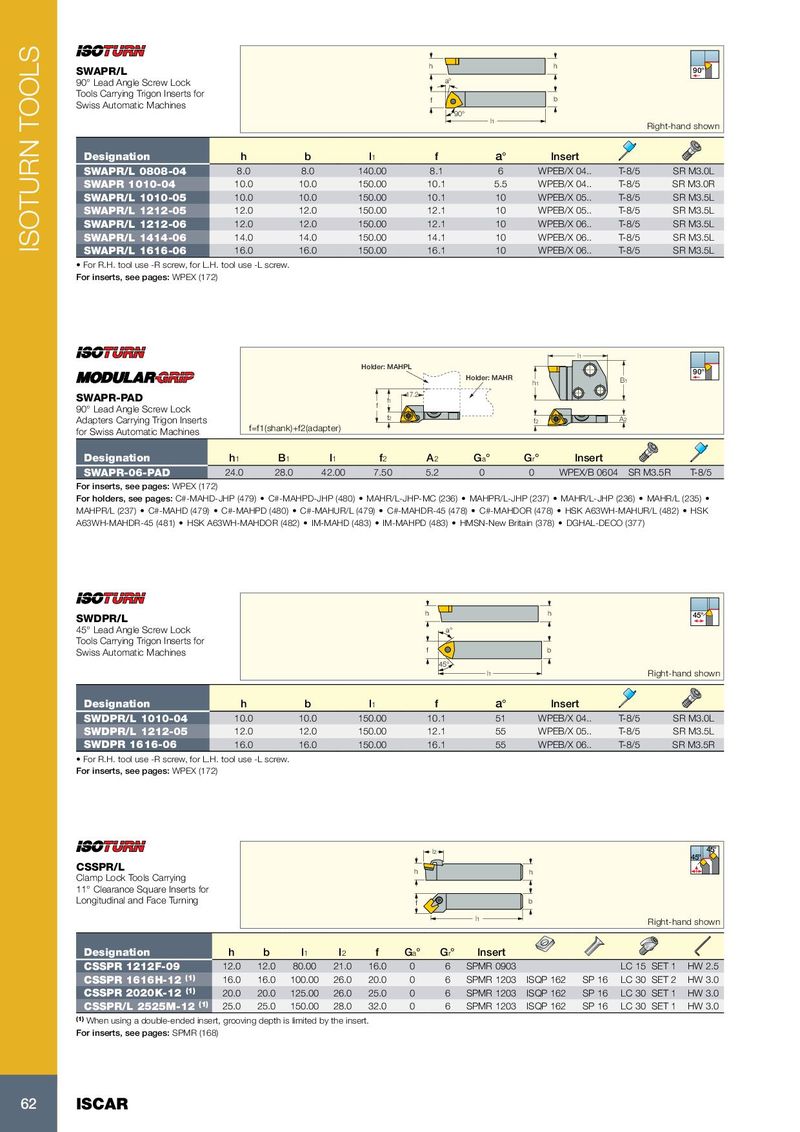

| SWAPR/L | h | h | 90° | |||||
| 90° Lead Angle Screw Lock Tools Carrying Trigon Inserts for Swiss Automatic Machines | f a° | b | ||||||
| 90° | l1 | Ri | ght-hand shown | |||||
| Designation | h | b | l1 | f | a° | Insert | ||
| SWAPR/L 0808-04 | 8.0 | 8.0 | 140.00 | 8.1 | 6 | WPEB/X 04.. | T-8/5 | SR M3.0L |
| SWAPR 1010-04 | 10.0 | 10.0 | 150.00 | 10.1 | 5.5 | WPEB/X 04.. | T-8/5 | SR M3.0R |
| SWAPR/L 1010-05 | 10.0 | 10.0 | 150.00 | 10.1 | 10 | WPEB/X 05.. | T-8/5 | SR M3.5L |
| SWAPR/L 1212-05 | 12.0 | 12.0 | 150.00 | 12.1 | 10 | WPEB/X 05.. | T-8/5 | SR M3.5L |
| SWAPR/L 1212-06 | 12.0 | 12.0 | 150.00 | 12.1 | 10 | WPEB/X 06.. | T-8/5 | SR M3.5L |
| SWAPR/L 1414-06 | 14.0 | 14.0 | 150.00 | 14.1 | 10 | WPEB/X 06.. | T-8/5 | SR M3.5L |
| SWAPR/L 1616-06 | 16.0 | 16.0 | 150.00 | 16.1 | 10 | WPEB/X 06.. | T-8/5 | SR M3.5L |
- For R.H. tool use -R screw, for L.H. tool use -L screw.
For inserts, see pages: WPEX (172)
l1 Holder: MAHPL 90° Holder: MAHR B h 1 1 SWAPR-PAD 17.2 f1 90° Lead Angle Screw Lock f
| Adapters Carrying Trigon Inserts | f2 | f | A2 | |
| 2 | ||||
| for Swiss Automatic Machines | f=f1(shank)+f2(adapter) |
| Designation | h1 | B 1 | l1 | f2 | A2 | Ga° | Gr° | Insert | ||
| SWAPR-06-PAD | 24.0 | 28.0 | 42.00 | 7.50 | 5.2 | 0 | 0 | WPEX/B 0604 SR M3.5R | T-8/5 |
For inserts, see pages: WPEX (172) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
| SWDPR/L | h | h | 45° | |||||||
| 45° Lead Angle Screw Lock | a° | |||||||||
| Tools Carrying Trigon Inserts for | ||||||||||
| Swiss Automatic Machines | f | b | ||||||||
| 45° | ||||||||||
| l1 | Right-hand shown | |||||||||
| Designation | h | b | l | f | a° | Insert | ||||
| 1 | ||||||||||
| SWDPR/L 1010-04 | 10.0 | 10.0 | 150.00 | 10.1 | 51 | WPEB/X 04.. | T-8/5 | SR M3.0L | ||
| SWDPR/L 1212-05 | 12.0 | 12.0 | 150.00 | 12.1 | 55 | WPEB/X 05.. | T-8/5 | SR M3.5L | ||
| SWDPR 1616-06 | 16.0 | 16.0 | 150.00 | 16.1 | 55 | WPEB/X 06.. | T-8/5 | SR M3.5R |
- For R.H. tool use -R screw, for L.H. tool use -L screw.
For inserts, see pages: WPEX (172)
l 45° 2 45°
CSSPR/L
h h Clamp Lock Tools Carrying 11° Clearance Square Inserts for Longitudinal and Face Turning b f l1 Right-hand shown
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |||
| CSSPR 1212F-09 | 12.0 | 12.0 | 80.00 | 21.0 | 16.0 | 0 | 6 | SPMR 0903 | LC 15 SET 1 HW 2.5 | ||
| CSSPR 1616H-12 (1) | 16.0 | 16.0 | 100.00 | 26.0 | 20.0 | 0 | 6 | SPMR 1203 ISQP 162 | SP 16 | LC 30 SET 2 HW 3.0 | |
| CSSPR 2020K-12 (1) | 20.0 | 20.0 | 125.00 | 26.0 | 25.0 | 0 | 6 | SPMR 1203 ISQP 162 | SP 16 | LC 30 SET 1 HW 3.0 | |
| CSSPR/L 2525M-12 (1) | 25.0 | 25.0 | 150.00 | 28.0 | 32.0 | 0 | 6 | SPMR 1203 ISQP 162 | SP 16 | LC 30 SET 1 HW 3.0 |
(1) When using a double-ended insert, grooving depth is limited by the insert. For inserts, see pages: SPMR (168)
