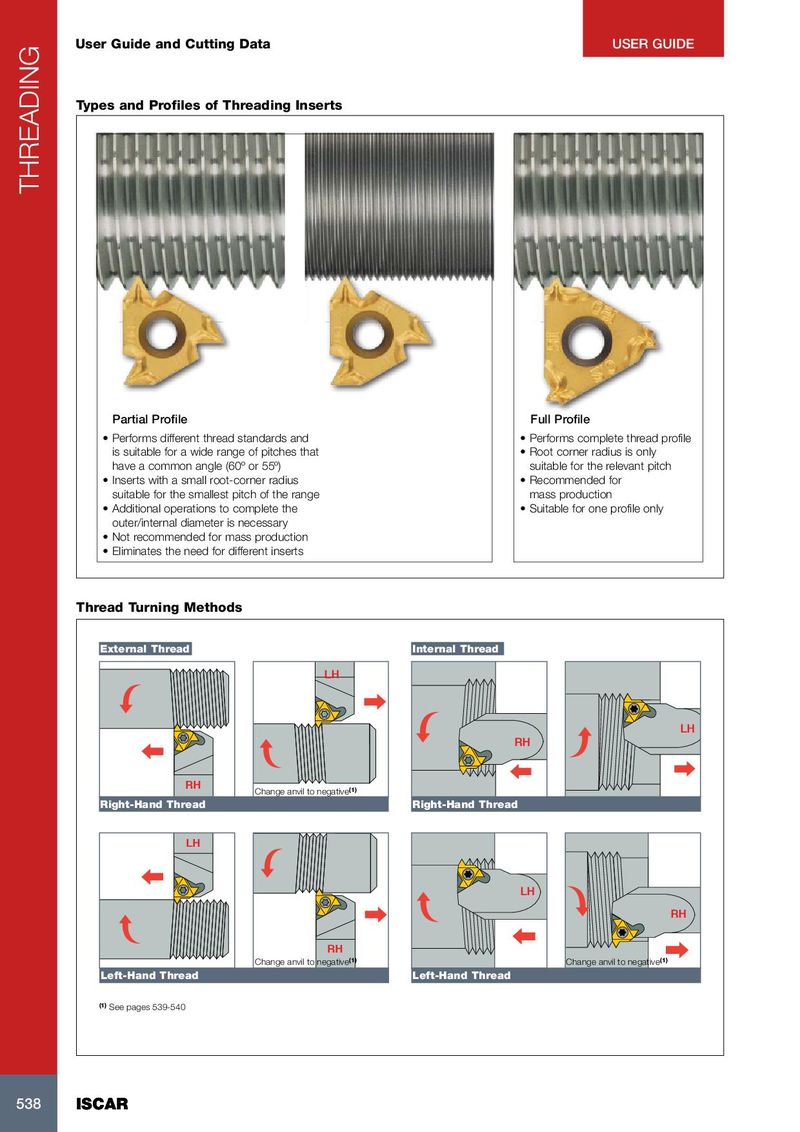

User Guide and Cutting Data USER GUIDE
Types and Profiles of Threading Inserts
Partial Profile Full Profile
- Performs different thread standards and
- Performs complete thread profile
| is suitable for a wide range of pitches that | • Root corner radius is only |
| have a common angle (60º or 55º) | suitable for the relevant pitch |
- Inserts with a small root-corner radius
- Recommended for
suitable for the smallest pitch of the range mass production
- Additional operations to complete the
- Suitable for one profile only
outer/internal diameter is necessary
- Not recommended for mass production
- Eliminates the need for different inserts
Thread Turning Methods
External Thread Internal Thread LH
RH RH Change anvil to negative (1) Right-Hand Thread Right-Hand Thread LH
LH
RH Change anvil to negative (1) Left-Hand Thread Left-Hand Thread
(1) See pages 539-540
LH
RH
Change anvil to negative(1)
