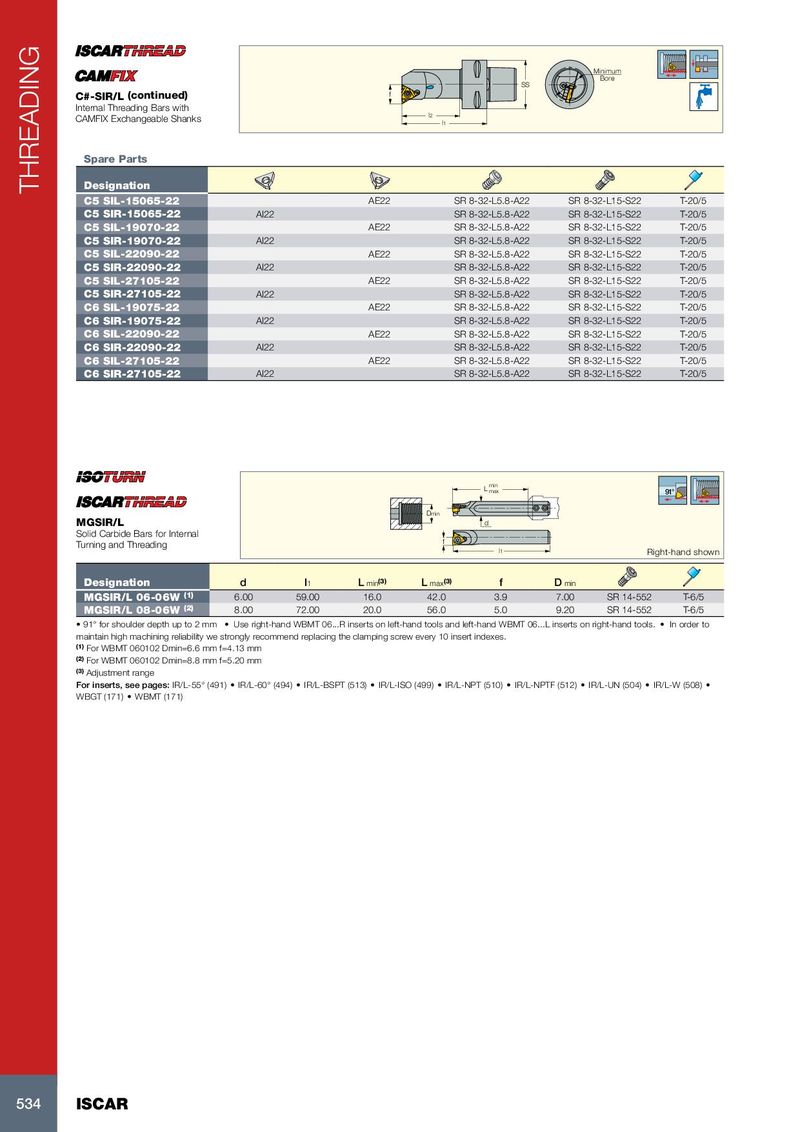

Каталог Iscar токарный инструмент 2017 - страница 538

Minimum Bore SS C#-SIR/L (continued) f Internal Threading Bars with l2 CAMFIX Exchangeable Shanks l1 Spare Parts Designation THREADING C5 SIL-15065-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIR-15065-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIL-19070-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIR-19070-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIL-22090-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIR-22090-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIL-27105-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C5 SIR-27105-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIL-19075-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIR-19075-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIL-22090-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIR-22090-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIL-27105-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 C6 SIR-27105-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5 L min max 91° Dmin MGSIR/L d Solid Carbide Bars for Internal Turning and Threading f l1 Right-hand shown Designation d l 1 L min (3) L max (3) f D min MGSIR/L 06-06W (1) 6.00 59.00 16.0 42.0 3.9 7.00 SR 14-552 T-6/5 MGSIR/L 08-06W (2) 8.00 72.00 20.0 56.0 5.0 9.20 SR 14-552 T-6/5 • 91° for shoulder depth up to 2 mm • Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools. • In order to maintain high machining reliability we strongly recommend replacing the clamping screw every 10 insert indexes. (1) For WBMT 060102 Dmin=6.6 mm f=4.13 mm (2) For WBMT 060102 Dmin=8.8 mm f=5.20 mm (3) Adjustment range For inserts, see pages: IR/L-55° (491) • IR/L-60° (494) • IR/L-BSPT (513) • IR/L-ISO (499) • IR/L-NPT (510) • IR/L-NPTF (512) • IR/L-UN (504) • IR/L-W (508) • WBGT (171) • WBMT (171) 534 ISCAR
