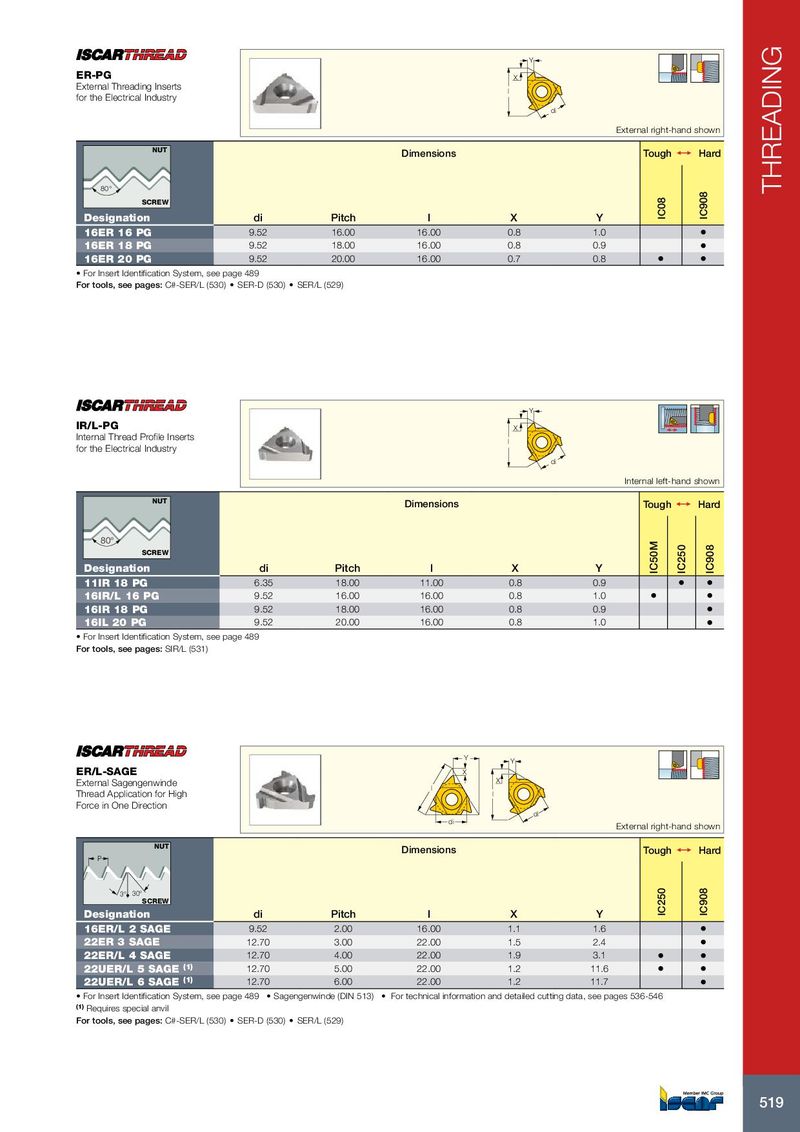

THREADING
Y
ER-PG X
External Threading Inserts l
for the Electrical Industry
di
External right-hand shown
NUT
Dimensions Tough 1 Hard

80°


IC908
IC08
SCREW
Designation di Pitch l X Y
16ER 16 PG 9.52 16.00 16.00 0.8 1.0 •
16ER 18 PG 9.52 18.00 16.00 0.8 0.9 •
16ER 20 PG 9.52 20.00 16.00 0.7 0.8 • •
• For Insert Identification System, see page 489
For tools, see pages: C#-SER/L (530) • SER-D (530) • SER/L (529)


Y
IR/L-PG X
Internal Thread Profile Inserts l
for the Electrical Industry
di
Internal left-hand shown
NUT
Dimensions Tough 1 Hard

80°


IC50M
IC250
IC908
SCREW
Designation di Pitch l X Y
11IR 18 PG 6.35 18.00 11.00 0.8 0.9 • •
16IR/L 16 PG 9.52 16.00 16.00 0.8 1.0 • •
16IR 18 PG 9.52 18.00 16.00 0.8 0.9 •
16IL 20 PG 9.52 20.00 16.00 0.8 1.0 •
• For Insert Identification System, see page 489
For tools, see pages: SIR/L (531)


Y Y
ER/L-SAGE X
External Sagengenwinde X
l
Thread Application for High l
Force in One Direction
di
di
External right-hand shown
NUT
Dimensions Tough 1 Hard
P
IC250

IC908


3° 30°
SCREW
Designation di Pitch l X Y
16ER/L 2 SAGE 9.52 2.00 16.00 1.1 1.6 •
22ER 3 SAGE 12.70 3.00 22.00 1.5 2.4 •
22ER/L 4 SAGE 12.70 4.00 22.00 1.9 3.1 • •
22UER/L 5 SAGE (1) 12.70 5.00 22.00 1.2 11.6 • •
22UER/L 6 SAGE (1) 12.70 6.00 22.00 1.2 11.7 •
• For Insert Identification System, see page 489 • Sagengenwinde (DIN 513) • For technical information and detailed cutting data, see pages 536-546
(1) Requires special anvil
For tools, see pages: C#-SER/L (530) • SER-D (530) • SER/L (529)
