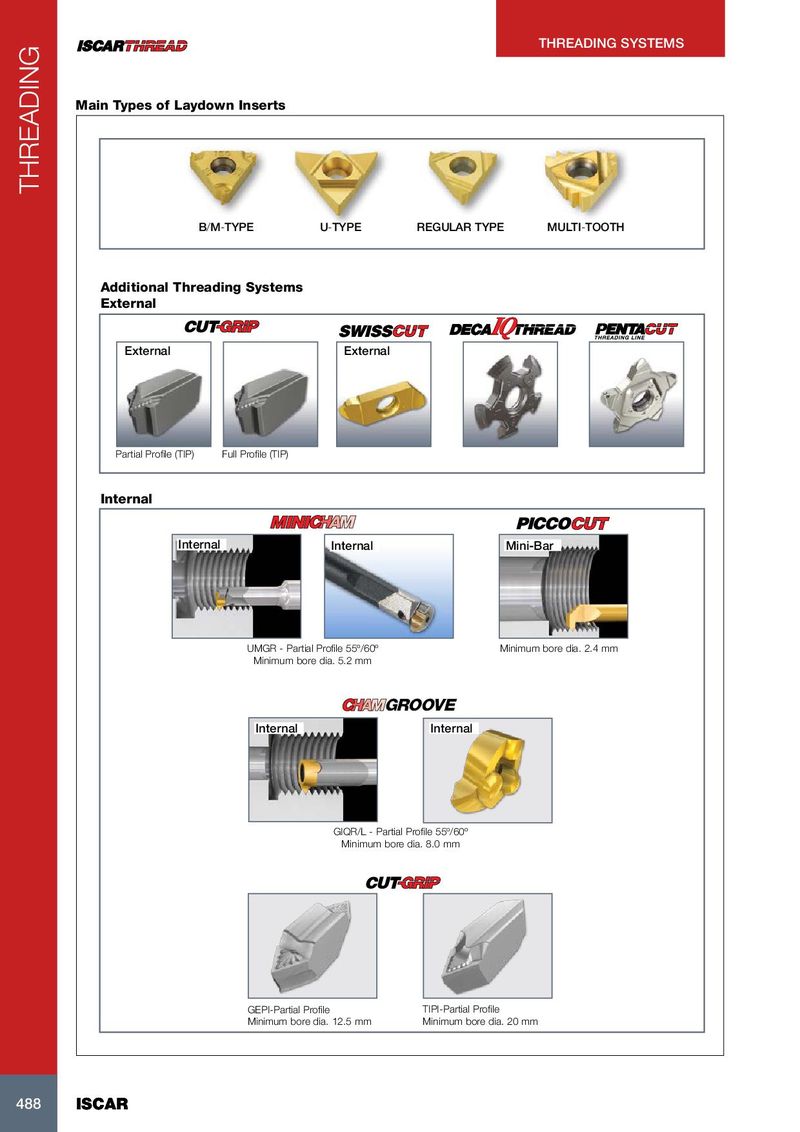

THREADING SYSTEMS Main Types of Laydown Inserts THREADING B/M-TYPE U-TYPE REGULAR TYPE MULTI-TOOTH Additional Threading Systems External External External External Partial Profile (TIP) Full Profile (TIP) Internal Internal Internal Mini-Bar UMGR - Partial Profile 55º/60º Minimum bore dia. 2.4 mm Minimum bore dia. 5.2 mm Internal Internal GIQR/L - Partial Profile 55º/60º Minimum bore dia. 8.0 mm GEPI-Partial Profile TIPI-Partial Profile Minimum bore dia. 12.5 mm Minimum bore dia. 20 mm 488 488 ISCAR ISCAR
