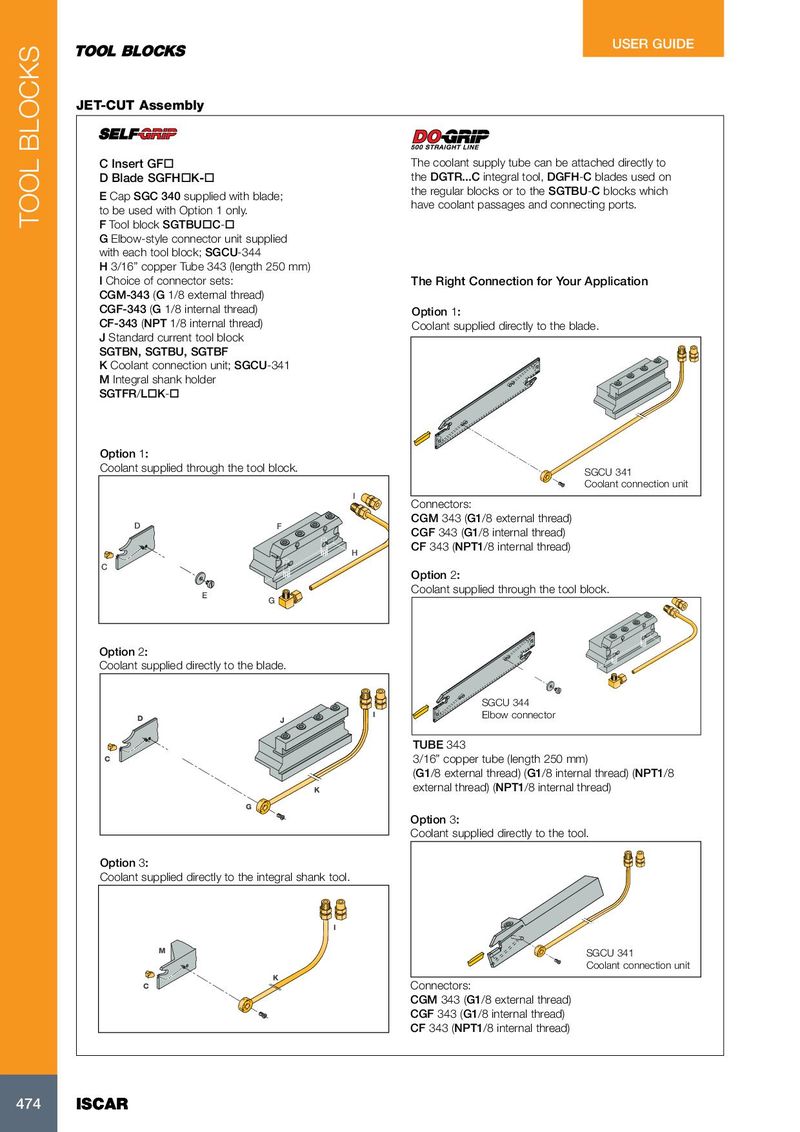

JET-CUT Assembly

C Insert GFThe coolant supply tube can be attached directly to
D Blade SGFHK-the DGTR...C integral tool, DGFH-C blades used on
E Cap SGC 340 supplied with blade;the regular blocks or to the SGTBU-C blocks which
to be used with Option 1 only.have coolant passages and connecting ports.
F Tool block SGTBUC-
G Elbow-style connector unit supplied
with each tool block; SGCU-344
H 3/16” copper Tube 343 (length 250 mm)
I Choice of connector sets:The Right Connection for Your Application
CGM-343 (G 1/8 external thread)
CGF-343 (G 1/8 internal thread)Option 1:
CF-343 (NPT 1/8 internal thread)Coolant supplied directly to the blade.

J Standard current tool block SGTBN, SGTBU, SGTBF K Coolant connection unit; SGCU-341 M Integral shank holder

SGTFR/LK-

Option 1: Coolant supplied through the tool block.

D F

C

E G

I

H

SGCU 341 Coolant connection unit Connectors: CGM 343 (G1/8 external thread) CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread) Option 2: Coolant supplied through the tool block.

Option 2: Coolant supplied directly to the blade.

D J

C

K G

Option 3: Coolant supplied directly to the integral shank tool.

I

SGCU 344 Elbow connector TUBE 343 3/16” copper tube (length 250 mm) (G1/8 external thread) (G1/8 internal thread) (NPT1/8 external thread) (NPT1/8 internal thread) Option 3: Coolant supplied directly to the tool.

I M SGCU 341 Coolant connection unit K Connectors: C CGM 343 (G1/8 external thread) CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread)
