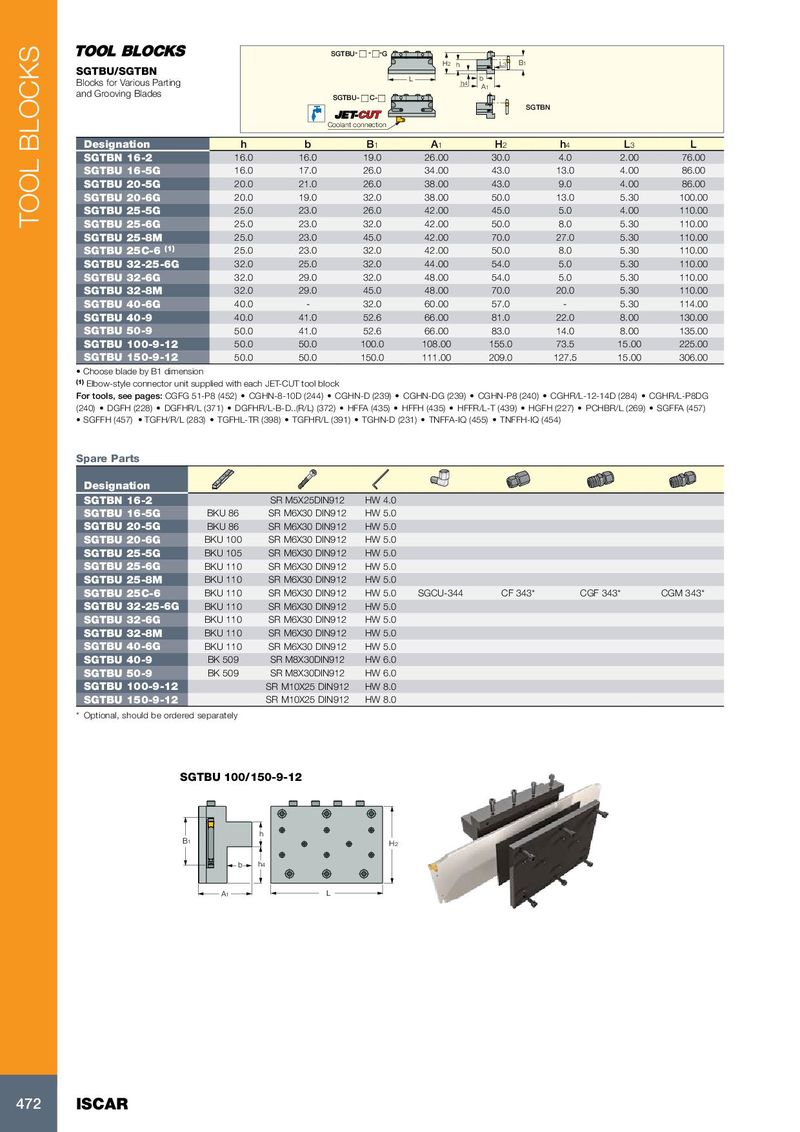

| SGTBU/SGTBN Blocks for Various Parting and Grooving Blades | SGTBU- - -G SGTBU- C- Coolant connection | H2 L | h h4 A1 b L3 | B1 SGTBN | ||||
| Designation | h | b | B1 | A1 | H2 | h4 | L3 | L |
| SGTBN 16-2 | 16.0 | 16.0 | 19.0 | 26.00 | 30.0 | 4.0 | 2.00 | 76.00 |
| SGTBU 16-5G | 16.0 | 17.0 | 26.0 | 34.00 | 43.0 | 13.0 | 4.00 | 86.00 |
| SGTBU 20-5G | 20.0 | 21.0 | 26.0 | 38.00 | 43.0 | 9.0 | 4.00 | 86.00 |
| SGTBU 20-6G | 20.0 | 19.0 | 32.0 | 38.00 | 50.0 | 13.0 | 5.30 | 100.00 |
| SGTBU 25-5G | 25.0 | 23.0 | 26.0 | 42.00 | 45.0 | 5.0 | 4.00 | 110.00 |
| SGTBU 25-6G | 25.0 | 23.0 | 32.0 | 42.00 | 50.0 | 8.0 | 5.30 | 110.00 |
| SGTBU 25-8M | 25.0 | 23.0 | 45.0 | 42.00 | 70.0 | 27.0 | 5.30 | 110.00 |
| SGTBU 25C-6(1) | 25.0 | 23.0 | 32.0 | 42.00 | 50.0 | 8.0 | 5.30 | 110.00 |
| SGTBU 32-25-6G | 32.0 | 25.0 | 32.0 | 44.00 | 54.0 | 5.0 | 5.30 | 110.00 |
| SGTBU 32-6G | 32.0 | 29.0 | 32.0 | 48.00 | 54.0 | 5.0 | 5.30 | 110.00 |
| SGTBU 32-8M | 32.0 | 29.0 | 45.0 | 48.00 | 70.0 | 20.0 | 5.30 | 110.00 |
| SGTBU 40-6G | 40.0 | - | 32.0 | 60.00 | 57.0 | - | 5.30 | 114.00 |
| SGTBU 40-9 | 40.0 | 41.0 | 52.6 | 66.00 | 81.0 | 22.0 | 8.00 | 130.00 |
| SGTBU 50-9 | 50.0 | 41.0 | 52.6 | 66.00 | 83.0 | 14.0 | 8.00 | 135.00 |
| SGTBU 100-9-12 | 50.0 | 50.0 | 100.0 | 108.00 | 155.0 | 73.5 | 15.00 | 225.00 |
| SGTBU 150-9-12 | 50.0 | 50.0 | 150.0 | 111.00 | 209.0 | 127.5 | 15.00 | 306.00 |
- Choose blade by B1 dimension
(1) Elbow-style connector unit supplied with each JET-CUT tool block For tools, see pages: CGFG 51-P8 (452) CGHN-8-10D (244) CGHN-D (239) CGHN-DG (239) CGHN-P8 (240) CGHR/L-12-14D (284) CGHR/L-P8DG (240) DGFH (228) DGFHR/L (371) DGFHR/L-B-D..(R/L) (372) HFFA (435) HFFH (435) HFFR/L-T (439) HGFH (227) PCHBR/L (269) SGFFA (457)
- SGFFH (457)
- TGFH/R/L (283)
- TGFHL-TR (398)
- TGFHR/L (391)
- TGHN-D (231)
- TNFFA-IQ (455)
- TNFFH-IQ (454)
Spare Parts
| Designation | |||||||
| SGTBN 16-2 | SR M5X25DIN912 | HW 4.0 | |||||
| SGTBU 16-5G | BKU 86 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 20-5G | BKU 86 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 20-6G | BKU 100 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 25-5G | BKU 105 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 25-6G | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 25-8M | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 25C-6 | BKU 110 | SR M6X30 DIN912 | HW 5.0 | SGCU-344 | CF 343 | CGF 343 | CGM 343 |
| SGTBU 32-25-6G | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 32-6G | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 32-8M | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 40-6G | BKU 110 | SR M6X30 DIN912 | HW 5.0 | ||||
| SGTBU 40-9 | BK 509 | SR M8X30DIN912 | HW 6.0 | ||||
| SGTBU 50-9 | BK 509 | SR M8X30DIN912 | HW 6.0 | ||||
| SGTBU 100-9-12 | SR M10X25 DIN912 | HW 8.0 | |||||
| SGTBU 150-9-12 | SR M10X25 DIN912 | HW 8.0 |
* Optional, should be ordered separately
SGTBU 100/150-9-12
h B1 H 2 b h4
A1 L
