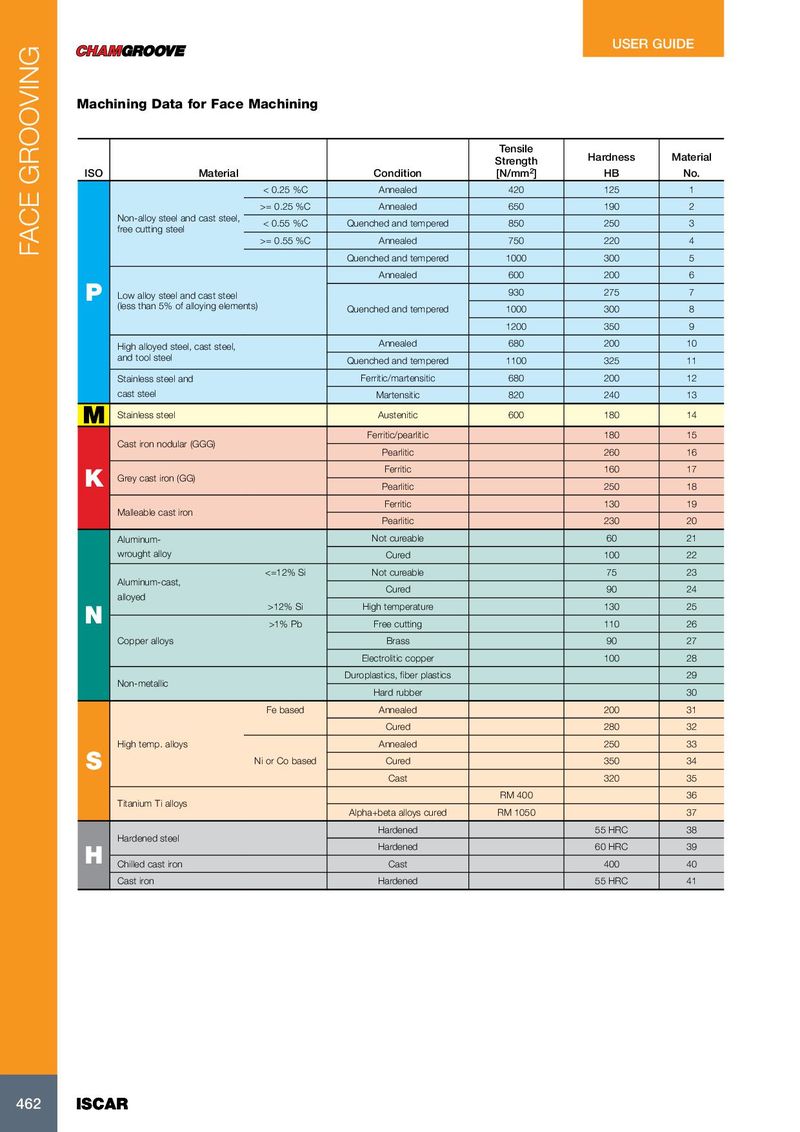

Machining Data for Face Machining

ISO Material		Condition	Tensile Strength [N/mm2]	Hardness HB	Material No.
	< 0.25 %C	Annealed	420	125	1
	>= 0.25 %C	Annealed	650	190	2
Non-alloy steel and cast steel, free cutting steel	< 0.55 %C	Quenched and tempered	850	250	3
	>= 0.55 %C	Annealed	750	220	4
		Quenched and tempered	1000	300	5
		Annealed	600	200	6
P Low alloy steel and cast steel			930	275	7
(less than 5% of alloying elemen	ts)	Quenched and tempered	1000	300	8
			1200	350	9
High alloyed steel, cast steel,		Annealed	680	200	10
and tool steel		Quenched and tempered	1100	325	11
Stainless steel and		Ferritic/martensitic	680	200	12
cast steel		Martensitic	820	240	13
M Stainless steel		Austenitic	600	180	14
		Ferritic/pearlitic		180	15
Cast iron nodular (GGG)		Pearlitic		260	16
K Gre cast iron (GG)		Ferritic		160	17
y		Pearlitic		250	18
Malleable cast iron		Ferritic		130	19
		Pearlitic		230	20
Aluminum-		Not cureable		60	21
wrought alloy		Cured		100	22
		Not cureable		75	23
Aluminum-cast, alloyed		Cured		90	24
N	>12% Si	High temperature		130	25
	>1% Pb	Free cutting		110	26
Copper alloys		Brass		90	27
		Electrolitic copper		100	28
N-tlli		Duroplastics, fiber plastics			29
onmeac		Hard rubber			30
	Fe based	Annealed		200	31
		Cured		280	32
High temp. alloys		Annealed		250	33
S	Ni or Co based	Cured		350	34
		Cast		320	35
			RM 400		36
Titanium Ti alloys		Alpha+beta alloys cured	RM 1050		37
H l		Hardened		55 HRC	38
H ardened stee		Hardened		60 HRC	39
Chilled cast iron		Cast		400	40
Cast iron		Hardened		55 HRC	41
