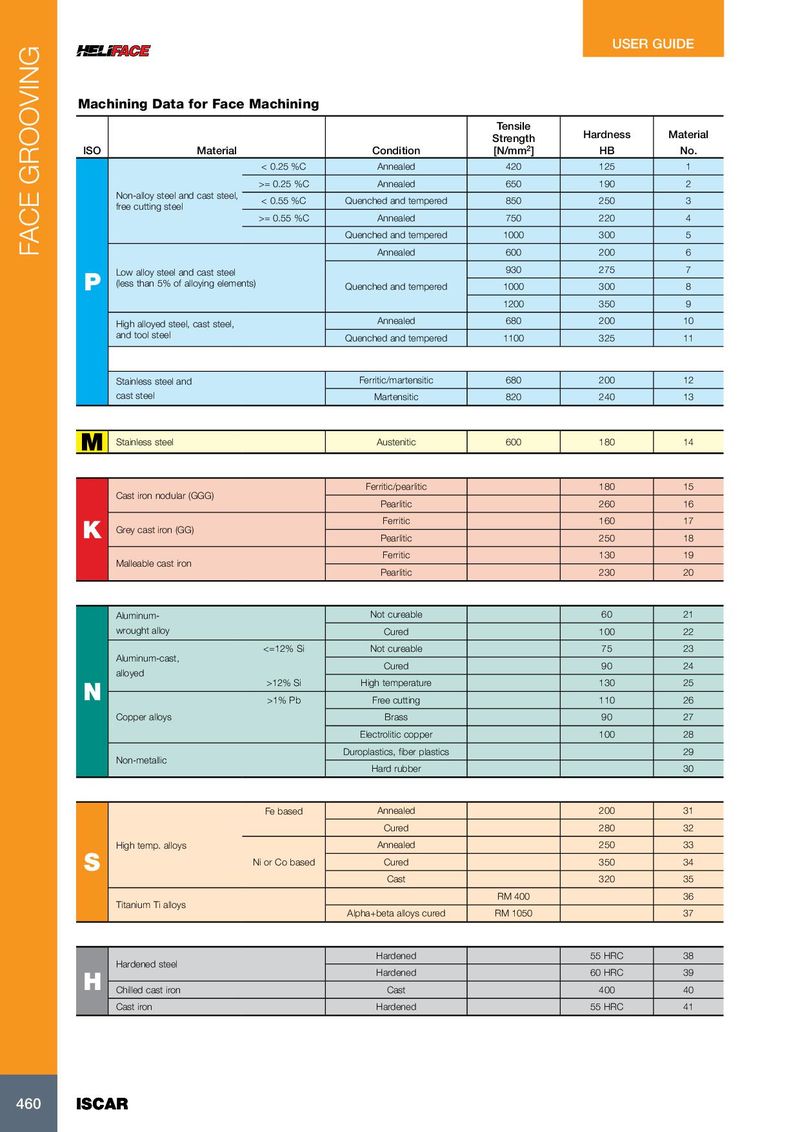

Machining Data for Face Machining

ISO	Material	Condition	Tensile Strength [N/mm2]	Hardness HB	Material No.
	< 0.25 %C	Annealed	420	125	1
	>= 0.25 %C	Annealed	650	190	2
	Non-alloy steel and cast steel, free cutting steel < 0.55 %C	Quenched and tempered	850	250	3
	>= 0.55 %C	Annealed	750	220	4
		Quenched and tempered	1000	300	5
		Annealed	600	200	6
	Low allo steel and cast steel		930	275	7
P	y
	(less than 5% of alloying elements)	Quenched and tempered	1000	300	8
			1200	350	9
	High alloyed steel, cast steel,	Annealed	680	200	10
	and tool steel	Quenched and tempered	1100	325	11
	Stainless steel and	Ferritic/martensitic	680	200	12
	cast steel	Martensitic	820	240	13
M	Stainless steel	Austenitic	600	180	14
	Cast iron nodular (GGG)	Ferritic/pearlitic		180	15
		Pearlitic		260	16
K	Gre cast iron (GG)	Ferritic		160	17
	y	Pearlitic		250	18
	Malleable cast iron	Ferritic		130	19
		Pearlitic		230	20
	Aluminum-	Not cureable		60	21
	wrought alloy	Cured		100	22
	Aluminum-cast	Not cureable		75	23
	, alloyed	Cured		90	24
N	>12% Si	High temperature		130	25
	>1% Pb	Free cutting		110	26
	Copper alloys	Brass		90	27
		Electrolitic copper		100	28
	Non-metallic	Duroplastics, fiber plastics			29
		Hard rubber			30
	Fe based	Annealed		200	31
		Cured		280	32
	High temp. alloys	Annealed		250	33
S	Ni or Co based	Cured		350	34
		Cast		320	35
	Tii Ti ll		RM 400		36
	tanum aoys	Alpha+beta alloys cured	RM 1050		37
	Hardened steel	Hardened		55 HRC	38
H		Hardened		60 HRC	39
	Chilled cast iron Cast iron	Cast Hardened		400 55 HRC	40 41
