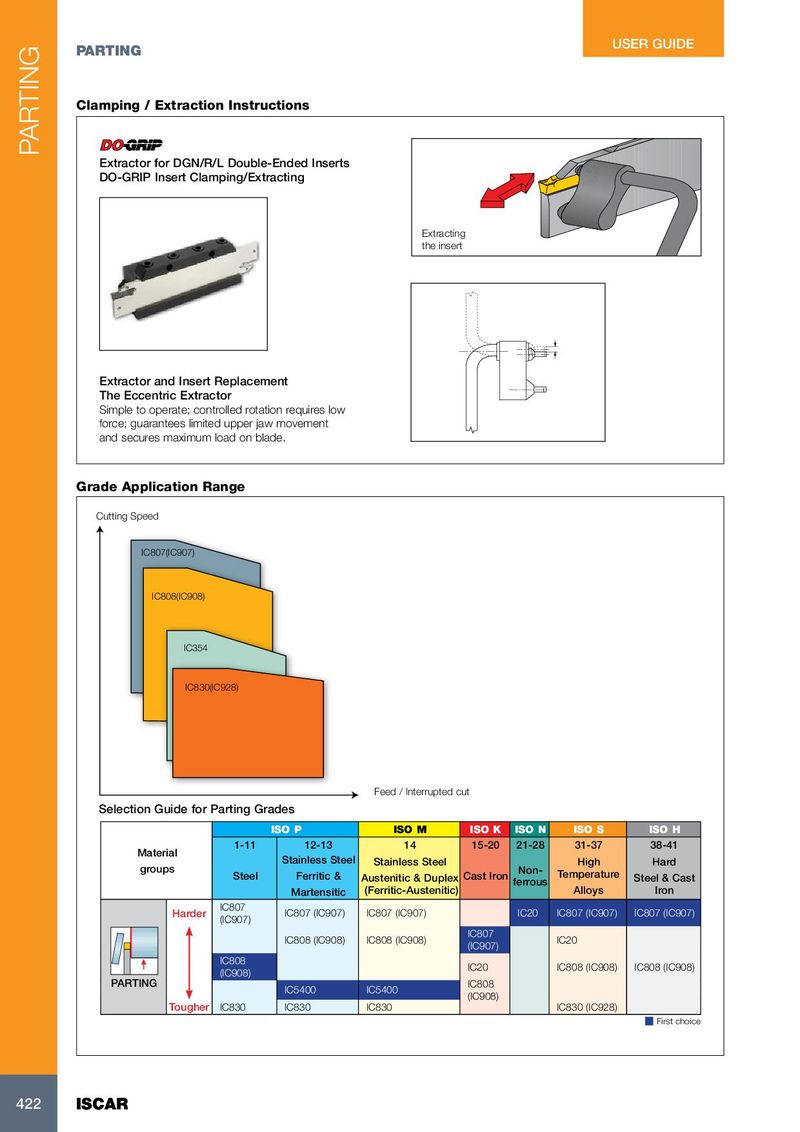

Clamping / Extraction Instructions
Extractor for DGN/R/L Double-Ended Inserts DO-GRIP Insert Clamping/Extracting
Extracting the insert
Extractor and Insert Replacement The Eccentric Extractor Simple to operate; controlled rotation requires low force; guarantees limited upper jaw movement and secures maximum load on blade.
Grade Application Range
Cutting Speed
IC807(IC907)
IC808(IC908)
IC354
IC830(IC928)
Feed / Interrupted cut Selection Guide for Parting Grades
| ISO P | ISO M | ISO K | ISO N | ISO S | ISO H | ||
| 1-11 | 12-13 | 14 | 15-20 | 21-28 | 31-37 | 38-41 |
Material
Stainless Steel Stainless Steel High Hard
groups Temperature
Steel Ferritic & Austenitic & Duplex Cast Iron Non- Steel & Cast
ferrous
Martensitic (Ferritic-Austenitic) Alloys Iron
Harder IC807
IC807 (IC907) IC807 (IC907) IC20 IC807 (IC907) IC807 (IC907)
(IC907) IC807
IC808 (IC908) IC808 (IC908) IC20
(IC907) IC808
IC20 IC808 (IC908) IC808 (IC908)
(IC908) PARTING IC808 IC5400 IC5400 (IC908)
Tougher IC830 IC830 IC830 IC830 (IC928)
First choice
