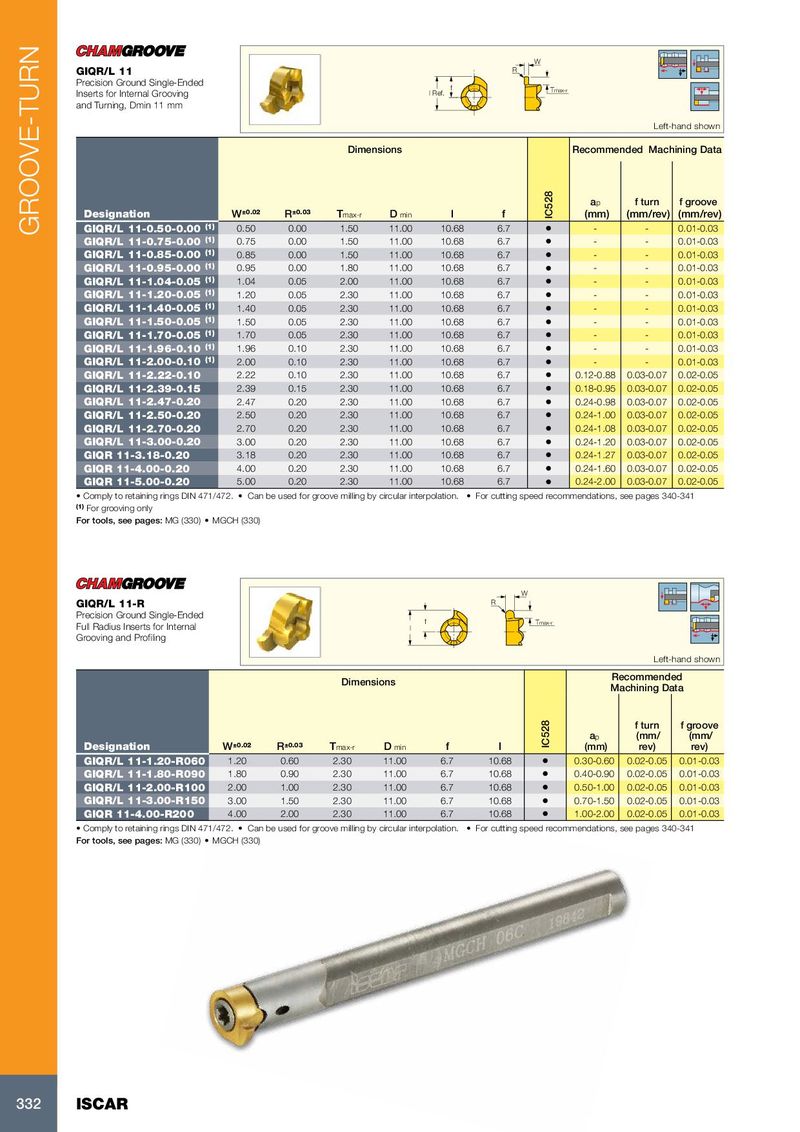

GROOVE-TURN
W
GIQR/L 11 R
Precision Ground Single-Ended f Tmax-r
Inserts for Internal Grooving l Ref.
and Turning, Dmin 11 mm
Left-hand shown
Dimensions Recommended Machining Data
IC528
ap f turn f groove
Designation W±0.02 R±0.03 Tmax-r D min l f (mm) (mm/rev) (mm/rev)
GIQR/L 11-0.50-0.00 (1) 0.50 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.75-0.00 (1) 0.75 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.85-0.00 (1) 0.85 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.95-0.00 (1) 0.95 0.00 1.80 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.04-0.05 (1) 1.04 0.05 2.00 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.20-0.05 (1) 1.20 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.40-0.05 (1) 1.40 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.50-0.05 (1) 1.50 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.70-0.05 (1) 1.70 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.96-0.10 (1) 1.96 0.10 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-2.00-0.10 (1) 2.00 0.10 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-2.22-0.10 2.22 0.10 2.30 11.00 10.68 6.7 • 0.12-0.88 0.03-0.07 0.02-0.05
GIQR/L 11-2.39-0.15 2.39 0.15 2.30 11.00 10.68 6.7 • 0.18-0.95 0.03-0.07 0.02-0.05
GIQR/L 11-2.47-0.20 2.47 0.20 2.30 11.00 10.68 6.7 • 0.24-0.98 0.03-0.07 0.02-0.05
GIQR/L 11-2.50-0.20 2.50 0.20 2.30 11.00 10.68 6.7 • 0.24-1.00 0.03-0.07 0.02-0.05
GIQR/L 11-2.70-0.20 2.70 0.20 2.30 11.00 10.68 6.7 • 0.24-1.08 0.03-0.07 0.02-0.05
GIQR/L 11-3.00-0.20 3.00 0.20 2.30 11.00 10.68 6.7 • 0.24-1.20 0.03-0.07 0.02-0.05
GIQR 11-3.18-0.20 3.18 0.20 2.30 11.00 10.68 6.7 • 0.24-1.27 0.03-0.07 0.02-0.05
GIQR 11-4.00-0.20 4.00 0.20 2.30 11.00 10.68 6.7 • 0.24-1.60 0.03-0.07 0.02-0.05
GIQR 11-5.00-0.20 5.00 0.20 2.30 11.00 10.68 6.7 • 0.24-2.00 0.03-0.07 0.02-0.05
• Comply to retaining rings DIN 471/472. • Can be used for groove milling by circular interpolation. • For cutting speed recommendations, see pages 340-341
(1) For grooving only
For tools, see pages: MG (330) • MGCH (330)
W
GIQR/L 11-R R
Precision Ground Single-Ended
f Tmax-r
Full Radius Inserts for Internal l
Grooving and Profiling
Left-hand shown
Recommended
Dimensions
Machining Data
f turn f groove
IC528
ap (mm/ (mm/
Designation W ±0.02 R ±0.03 Tmax-r D min f l (mm) rev) rev)
GIQR/L 11-1.20-R060 1.20 0.60 2.30 11.00 6.7 10.68 • 0.30-0.60 0.02-0.05 0.01-0.03
GIQR/L 11-1.80-R090 1.80 0.90 2.30 11.00 6.7 10.68 • 0.40-0.90 0.02-0.05 0.01-0.03
GIQR/L 11-2.00-R100 2.00 1.00 2.30 11.00 6.7 10.68 • 0.50-1.00 0.02-0.05 0.01-0.03
GIQR/L 11-3.00-R150 3.00 1.50 2.30 11.00 6.7 10.68 • 0.70-1.50 0.02-0.05 0.01-0.03
GIQR 11-4.00-R200 4.00 2.00 2.30 11.00 6.7 10.68 • 1.00-2.00 0.02-0.05 0.01-0.03
• Comply to retaining rings DIN 471/472. • Can be used for groove milling by circular interpolation. • For cutting speed recommendations, see pages 340-341
For tools, see pages: MG (330) • MGCH (330)
332 ISCAR
W
GIQR/L 11 R
Precision Ground Single-Ended f Tmax-r
Inserts for Internal Grooving l Ref.
and Turning, Dmin 11 mm
Left-hand shown
Dimensions Recommended Machining Data
IC528
ap f turn f groove
Designation W±0.02 R±0.03 Tmax-r D min l f (mm) (mm/rev) (mm/rev)
GIQR/L 11-0.50-0.00 (1) 0.50 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.75-0.00 (1) 0.75 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.85-0.00 (1) 0.85 0.00 1.50 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-0.95-0.00 (1) 0.95 0.00 1.80 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.04-0.05 (1) 1.04 0.05 2.00 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.20-0.05 (1) 1.20 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.40-0.05 (1) 1.40 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.50-0.05 (1) 1.50 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.70-0.05 (1) 1.70 0.05 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-1.96-0.10 (1) 1.96 0.10 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-2.00-0.10 (1) 2.00 0.10 2.30 11.00 10.68 6.7 • - - 0.01-0.03
GIQR/L 11-2.22-0.10 2.22 0.10 2.30 11.00 10.68 6.7 • 0.12-0.88 0.03-0.07 0.02-0.05
GIQR/L 11-2.39-0.15 2.39 0.15 2.30 11.00 10.68 6.7 • 0.18-0.95 0.03-0.07 0.02-0.05
GIQR/L 11-2.47-0.20 2.47 0.20 2.30 11.00 10.68 6.7 • 0.24-0.98 0.03-0.07 0.02-0.05
GIQR/L 11-2.50-0.20 2.50 0.20 2.30 11.00 10.68 6.7 • 0.24-1.00 0.03-0.07 0.02-0.05
GIQR/L 11-2.70-0.20 2.70 0.20 2.30 11.00 10.68 6.7 • 0.24-1.08 0.03-0.07 0.02-0.05
GIQR/L 11-3.00-0.20 3.00 0.20 2.30 11.00 10.68 6.7 • 0.24-1.20 0.03-0.07 0.02-0.05
GIQR 11-3.18-0.20 3.18 0.20 2.30 11.00 10.68 6.7 • 0.24-1.27 0.03-0.07 0.02-0.05
GIQR 11-4.00-0.20 4.00 0.20 2.30 11.00 10.68 6.7 • 0.24-1.60 0.03-0.07 0.02-0.05
GIQR 11-5.00-0.20 5.00 0.20 2.30 11.00 10.68 6.7 • 0.24-2.00 0.03-0.07 0.02-0.05
• Comply to retaining rings DIN 471/472. • Can be used for groove milling by circular interpolation. • For cutting speed recommendations, see pages 340-341
(1) For grooving only
For tools, see pages: MG (330) • MGCH (330)
W
GIQR/L 11-R R
Precision Ground Single-Ended
f Tmax-r
Full Radius Inserts for Internal l
Grooving and Profiling
Left-hand shown
Recommended
Dimensions
Machining Data
f turn f groove
IC528
ap (mm/ (mm/
Designation W ±0.02 R ±0.03 Tmax-r D min f l (mm) rev) rev)
GIQR/L 11-1.20-R060 1.20 0.60 2.30 11.00 6.7 10.68 • 0.30-0.60 0.02-0.05 0.01-0.03
GIQR/L 11-1.80-R090 1.80 0.90 2.30 11.00 6.7 10.68 • 0.40-0.90 0.02-0.05 0.01-0.03
GIQR/L 11-2.00-R100 2.00 1.00 2.30 11.00 6.7 10.68 • 0.50-1.00 0.02-0.05 0.01-0.03
GIQR/L 11-3.00-R150 3.00 1.50 2.30 11.00 6.7 10.68 • 0.70-1.50 0.02-0.05 0.01-0.03
GIQR 11-4.00-R200 4.00 2.00 2.30 11.00 6.7 10.68 • 1.00-2.00 0.02-0.05 0.01-0.03
• Comply to retaining rings DIN 471/472. • Can be used for groove milling by circular interpolation. • For cutting speed recommendations, see pages 340-341
For tools, see pages: MG (330) • MGCH (330)
332 ISCAR
