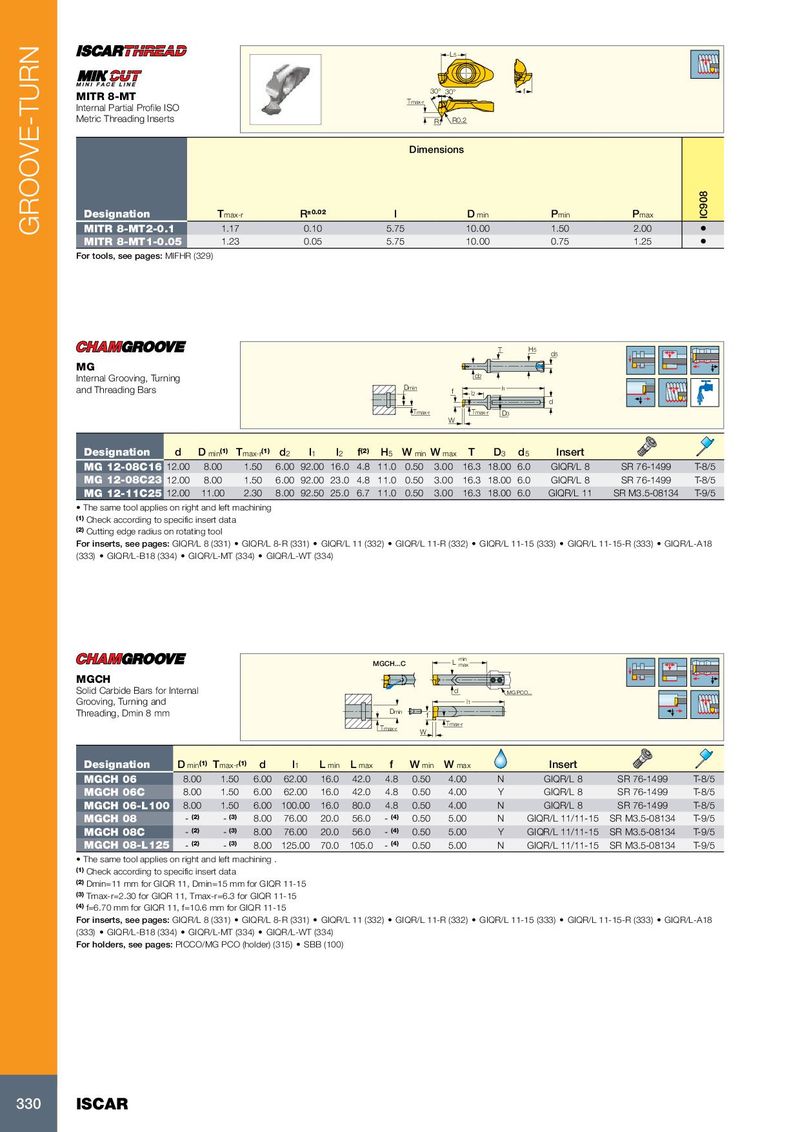

Каталог Iscar токарный инструмент 2017 - страница 334

L5 30° 30° f MITR 8-MT Tmax-r Internal Partial Profile ISO Metric Threading Inserts R R0.2 Dimensions Designation T max-r R ±0.02 l D min P min P max IC908 GROOVE-TURN MITR 8-MT2-0.1 1.17 0.10 5.75 10.00 1.50 2.00 • MITR 8-MT1-0.05 1.23 0.05 5.75 10.00 0.75 1.25 • For tools, see pages: MIFHR (329) T H5 d5 MG Internal Grooving, Turning d2 and Threading Bars Dmin f l1 l2 d Tmax-r Tmax-r D3 W Designation d D min (1) T max-r (1) d 2 l 1 l 2 f (2) H 5 W min W max T D 3 d 5 Insert MG 12-08C16 12.00 8.00 1.50 6.00 92.00 16.0 4.8 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 8 SR 76-1499 T-8/5 MG 12-08C23 12.00 8.00 1.50 6.00 92.00 23.0 4.8 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 8 SR 76-1499 T-8/5 MG 12-11C25 12.00 11.00 2.30 8.00 92.50 25.0 6.7 11.0 0.50 3.00 16.3 18.00 6.0 GIQR/L 11 SR M3.5-08134 T-9/5 • The same tool applies on right and left machining (1) Check according to specific insert data (2) Cutting edge radius on rotating tool For inserts, see pages: GIQR/L 8 (331) • GIQR/L 8-R (331) • GIQR/L 11 (332) • GIQR/L 11-R (332) • GIQR/L 11-15 (333) • GIQR/L 11-15-R (333) • GIQR/L-A18 (333) • GIQR/L-B18 (334) • GIQR/L-MT (334) • GIQR/L-WT (334) MGCH...C L min max MGCH Solid Carbide Bars for Internal d MG PCO... Grooving, Turning and l1 Threading, Dmin 8 mm Dmin f Tmax-r Tmax-r W Designation D min (1) T max-r (1) d l 1 L min L max f W min W max Insert MGCH 06 8.00 1.50 6.00 62.00 16.0 42.0 4.8 0.50 4.00 N GIQR/L 8 SR 76-1499 T-8/5 MGCH 06C 8.00 1.50 6.00 62.00 16.0 42.0 4.8 0.50 4.00 Y GIQR/L 8 SR 76-1499 T-8/5 MGCH 06-L100 8.00 1.50 6.00 100.00 16.0 80.0 4.8 0.50 4.00 N GIQR/L 8 SR 76-1499 T-8/5 MGCH 08 - (2) - (3) 8.00 76.00 20.0 56.0 - (4) 0.50 5.00 N GIQR/L 11/11-15 SR M3.5-08134 T-9/5 MGCH 08C - (2) - (3) 8.00 76.00 20.0 56.0 - (4) 0.50 5.00 Y GIQR/L 11/11-15 SR M3.5-08134 T-9/5 MGCH 08-L125 - (2) - (3) 8.00 125.00 70.0 105.0 - (4) 0.50 5.00 N GIQR/L 11/11-15 SR M3.5-08134 T-9/5 • The same tool applies on right and left machining . (1) Check according to specific insert data (2) Dmin=11 mm for GIQR 11, Dmin=15 mm for GIQR 11-15 (3) Tmax-r=2.30 for GIQR 11, Tmax-r=6.3 for GIQR 11-15 (4) f=6.70 mm for GIQR 11, f=10.6 mm for GIQR 11-15 For inserts, see pages: GIQR/L 8 (331) • GIQR/L 8-R (331) • GIQR/L 11 (332) • GIQR/L 11-R (332) • GIQR/L 11-15 (333) • GIQR/L 11-15-R (333) • GIQR/L-A18 (333) • GIQR/L-B18 (334) • GIQR/L-MT (334) • GIQR/L-WT (334) For holders, see pages: PICCO/MG PCO (holder) (315) • SBB (100) 330 ISCAR
