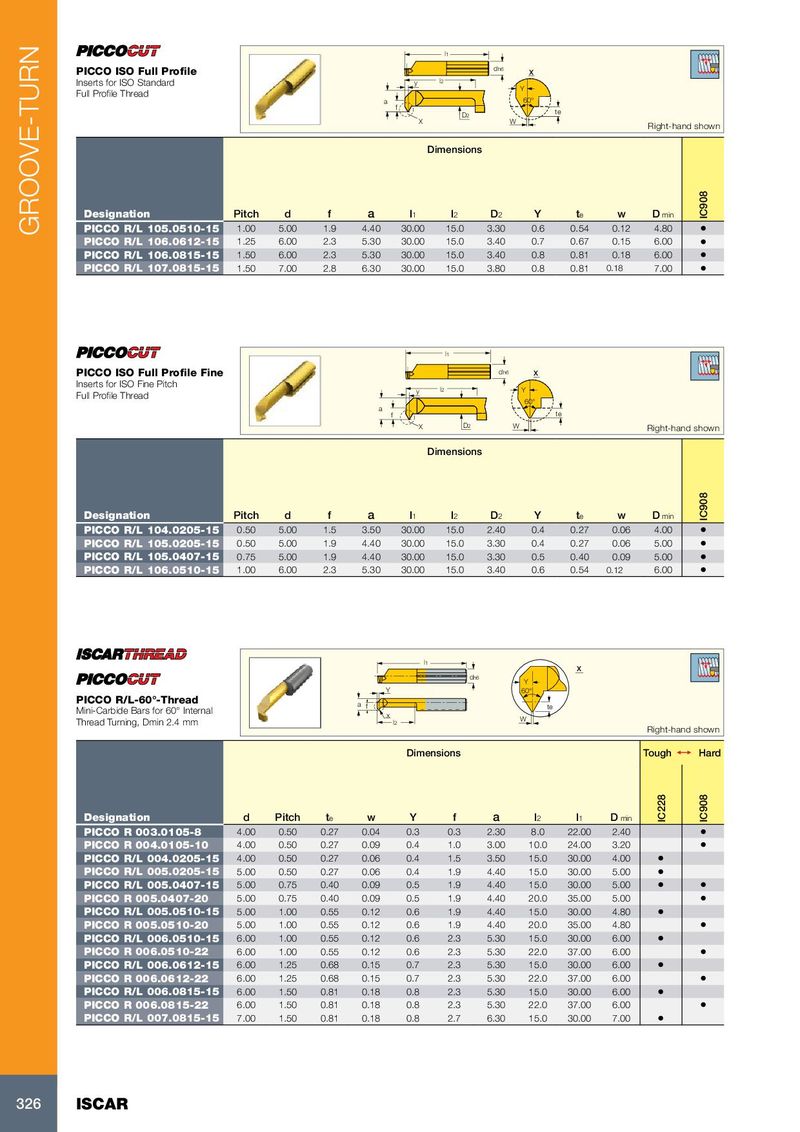

GROOVE-TURN
l1
dh6
PICCO ISO Full Profile X
Inserts for ISO Standard y l2
Y
Full Profile Thread
a 60°
f
D2 te
X W
Right-hand shown
Dimensions
IC908
Designation Pitch d f a l1 l2 D2 Y te w D min
PICCO R/L 105.0510-15 1.00 5.00 1.9 4.40 30.00 15.0 3.30 0.6 0.54 0.12 4.80 •
PICCO R/L 106.0612-15 1.25 6.00 2.3 5.30 30.00 15.0 3.40 0.7 0.67 0.15 6.00 •
PICCO R/L 106.0815-15 1.50 6.00 2.3 5.30 30.00 15.0 3.40 0.8 0.81 0.18 6.00 •
PICCO R/L 107.0815-15 1.50 7.00 2.8 6.30 30.00 15.0 3.80 0.8 0.81 0.18 7.00 •
l1
PICCO ISO Full Profile Fine dh6 X
Inserts for ISO Fine Pitch l2
y Y
Full Profile Thread
60°
a
f te
X D2 W Right-hand shown
Dimensions
IC908
Designation Pitch d f a l1 l2 D2 Y te w D min
PICCO R/L 104.0205-15 0.50 5.00 1.5 3.50 30.00 15.0 2.40 0.4 0.27 0.06 4.00 •
PICCO R/L 105.0205-15 0.50 5.00 1.9 4.40 30.00 15.0 3.30 0.4 0.27 0.06 5.00 •
PICCO R/L 105.0407-15 0.75 5.00 1.9 4.40 30.00 15.0 3.30 0.5 0.40 0.09 5.00 •
PICCO R/L 106.0510-15 1.00 6.00 2.3 5.30 30.00 15.0 3.40 0.6 0.54 0.12 6.00 •
l1
X
dh6
Y
Y 60°
PICCO R/L-60°-Thread a f te
Mini-Carbide Bars for 60° Internal x
W
Thread Turning, Dmin 2.4 mm l2
Right-hand shown
Dimensions Tough 1 Hard
IC228
IC908
Designation d Pitch te w Y f a l2 l1 D min
PICCO R 003.0105-8 4.00 0.50 0.27 0.04 0.3 0.3 2.30 8.0 22.00 2.40 •
PICCO R 004.0105-10 4.00 0.50 0.27 0.09 0.4 1.0 3.00 10.0 24.00 3.20 •
PICCO R/L 004.0205-15 4.00 0.50 0.27 0.06 0.4 1.5 3.50 15.0 30.00 4.00 •
PICCO R/L 005.0205-15 5.00 0.50 0.27 0.06 0.4 1.9 4.40 15.0 30.00 5.00 •
PICCO R/L 005.0407-15 5.00 0.75 0.40 0.09 0.5 1.9 4.40 15.0 30.00 5.00 • •
PICCO R 005.0407-20 5.00 0.75 0.40 0.09 0.5 1.9 4.40 20.0 35.00 5.00 •
PICCO R/L 005.0510-15 5.00 1.00 0.55 0.12 0.6 1.9 4.40 15.0 30.00 4.80 •
PICCO R 005.0510-20 5.00 1.00 0.55 0.12 0.6 1.9 4.40 20.0 35.00 4.80 •
PICCO R/L 006.0510-15 6.00 1.00 0.55 0.12 0.6 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0510-22 6.00 1.00 0.55 0.12 0.6 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 006.0612-15 6.00 1.25 0.68 0.15 0.7 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0612-22 6.00 1.25 0.68 0.15 0.7 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 006.0815-15 6.00 1.50 0.81 0.18 0.8 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0815-22 6.00 1.50 0.81 0.18 0.8 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 007.0815-15 7.00 1.50 0.81 0.18 0.8 2.7 6.30 15.0 30.00 7.00 •
326 ISCAR
