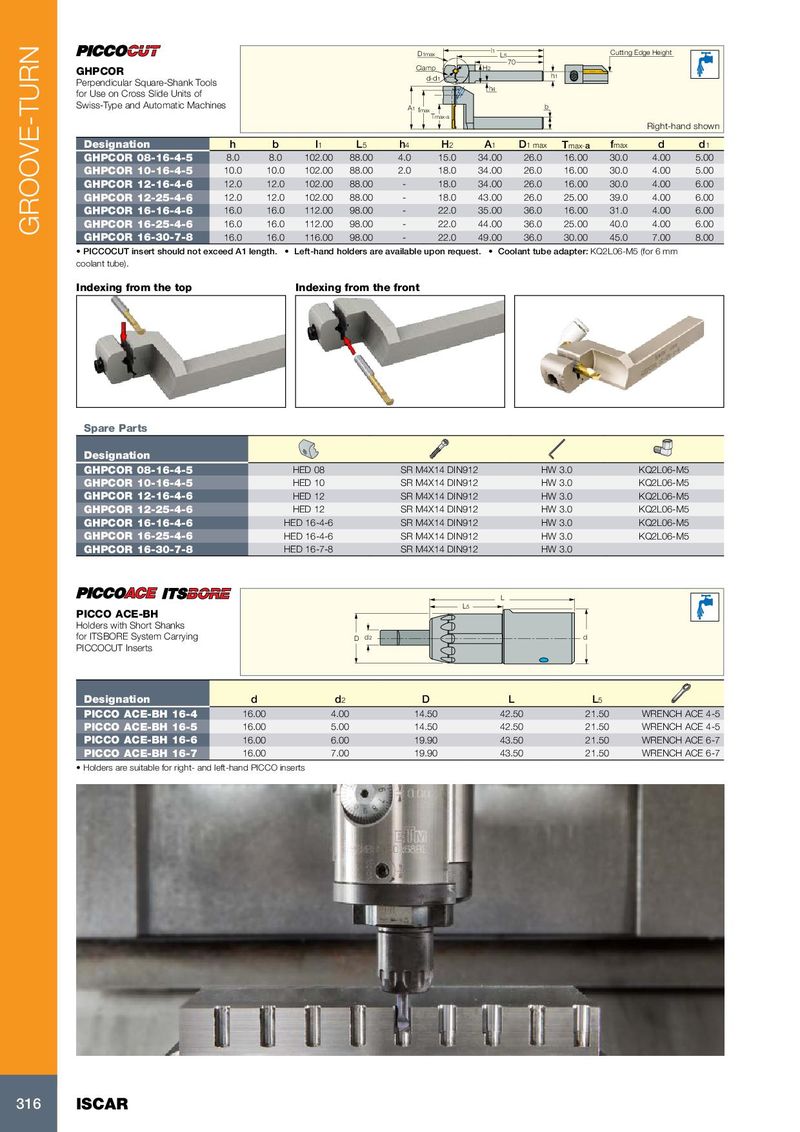

D1max l1 L5 Cutting Edge Height 70 Clamp H2 GHPCOR d-d1 h1 Perpendicular Square-Shank Tools h4 for Use on Cross Slide Units of Swiss-Type and Automatic Machines A1 fmax b Tmax-a Right-hand shown Designation h b l 1 L 5 h 4 H 2 A 1 D 1 max T max- a f max d d 1 GHPCOR 08-16-4-5 8.0 8.0 102.00 88.00 4.0 15.0 34.00 26.0 16.00 30.0 4.00 5.00 GHPCOR 10-16-4-5 10.0 10.0 102.00 88.00 2.0 18.0 34.00 26.0 16.00 30.0 4.00 5.00 GHPCOR 12-16-4-6 12.0 12.0 102.00 88.00 - 18.0 34.00 26.0 16.00 30.0 4.00 6.00 GHPCOR 12-25-4-6 12.0 12.0 102.00 88.00 - 18.0 43.00 26.0 25.00 39.0 4.00 6.00 GHPCOR 16-16-4-6 16.0 16.0 112.00 98.00 - 22.0 35.00 36.0 16.00 31.0 4.00 6.00 GHPCOR 16-25-4-6 16.0 16.0 112.00 98.00 - 22.0 44.00 36.0 25.00 40.0 4.00 6.00 GROOVE-TURN GHPCOR 16-30-7-8 16.0 16.0 116.00 98.00 - 22.0 49.00 36.0 30.00 45.0 7.00 8.00 • PICCOCUT insert should not exceed A1 length. • Left-hand holders are available upon request. • Coolant tube adapter: KQ2L06-M5 (for 6 mm coolant tube). Indexing from the top Indexing from the front Spare Parts Designation GHPCOR 08-16-4-5 HED 08 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 10-16-4-5 HED 10 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 12-16-4-6 HED 12 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 12-25-4-6 HED 12 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 16-16-4-6 HED 16-4-6 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 16-25-4-6 HED 16-4-6 SR M4X14 DIN912 HW 3.0 KQ2L06-M5 GHPCOR 16-30-7-8 HED 16-7-8 SR M4X14 DIN912 HW 3.0 L L5 PICCO ACE-BH Holders with Short Shanks for ITSBORE System Carrying D d2 d PICCOCUT Inserts Designation d d 2 D L L 5 PICCO ACE-BH 16-4 16.00 4.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-5 16.00 5.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-6 16.00 6.00 19.90 43.50 21.50 WRENCH ACE 6-7 PICCO ACE-BH 16-7 16.00 7.00 19.90 43.50 21.50 WRENCH ACE 6-7 • Holders are suitable for right- and left-hand PICCO inserts 316 ISCAR
