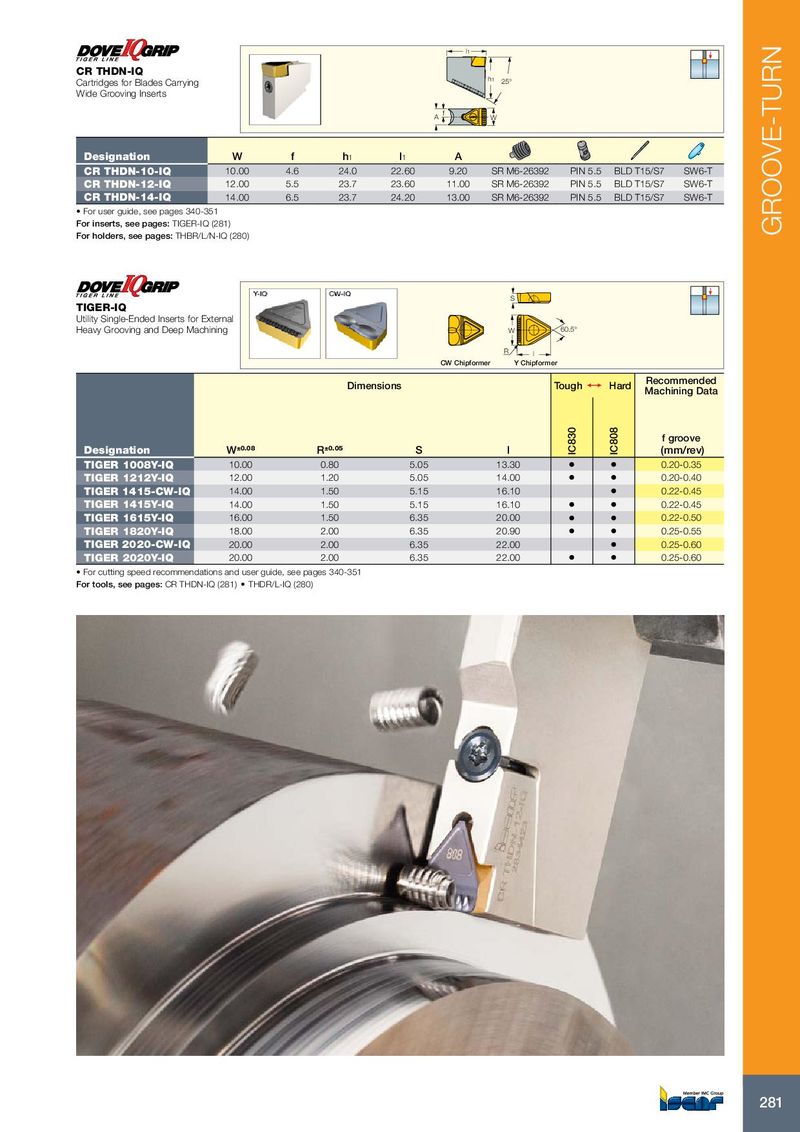

GROOVE-TURN
l1

CR THDN-IQ
h1 25°
Cartridges for Blades Carrying
Wide Grooving Inserts
f
A W


Designation W f h1 l1 A
CR THDN-10-IQ 10.00 4.6 24.0 22.60 9.20 SR M6-26392 PIN 5.5 BLD T15/S7 SW6-T
CR THDN-12-IQ 12.00 5.5 23.7 23.60 11.00 SR M6-26392 PIN 5.5 BLD T15/S7 SW6-T
CR THDN-14-IQ 14.00 6.5 23.7 24.20 13.00 SR M6-26392 PIN 5.5 BLD T15/S7 SW6-T
• For user guide, see pages 340-351
For inserts, see pages: TIGER-IQ (281)
For holders, see pages: THBR/L/N-IQ (280)


S
TIGER-IQ
Utility Single-Ended Inserts for External
Heavy Grooving and Deep Machining W 60.5°

R l
CW Chipformer Y Chipformer
Recommended
Dimensions Tough 1 Hard
Machining Data


IC830

IC808
f groove
Designation W±0.08 R±0.05 S l (mm/rev)
TIGER 1008Y-IQ 10.00 0.80 5.05 13.30 • • 0.20-0.35
TIGER 1212Y-IQ 12.00 1.20 5.05 14.00 • • 0.20-0.40
TIGER 1415-CW-IQ 14.00 1.50 5.15 16.10 • 0.22-0.45
TIGER 1415Y-IQ 14.00 1.50 5.15 16.10 • • 0.22-0.45
TIGER 1615Y-IQ 16.00 1.50 6.35 20.00 • • 0.22-0.50
TIGER 1820Y-IQ 18.00 2.00 6.35 20.90 • • 0.25-0.55
TIGER 2020-CW-IQ 20.00 2.00 6.35 22.00 • 0.25-0.60
TIGER 2020Y-IQ 20.00 2.00 6.35 22.00 • • 0.25-0.60
• For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: CR THDN-IQ (281) • THDR/L-IQ (280)


281
