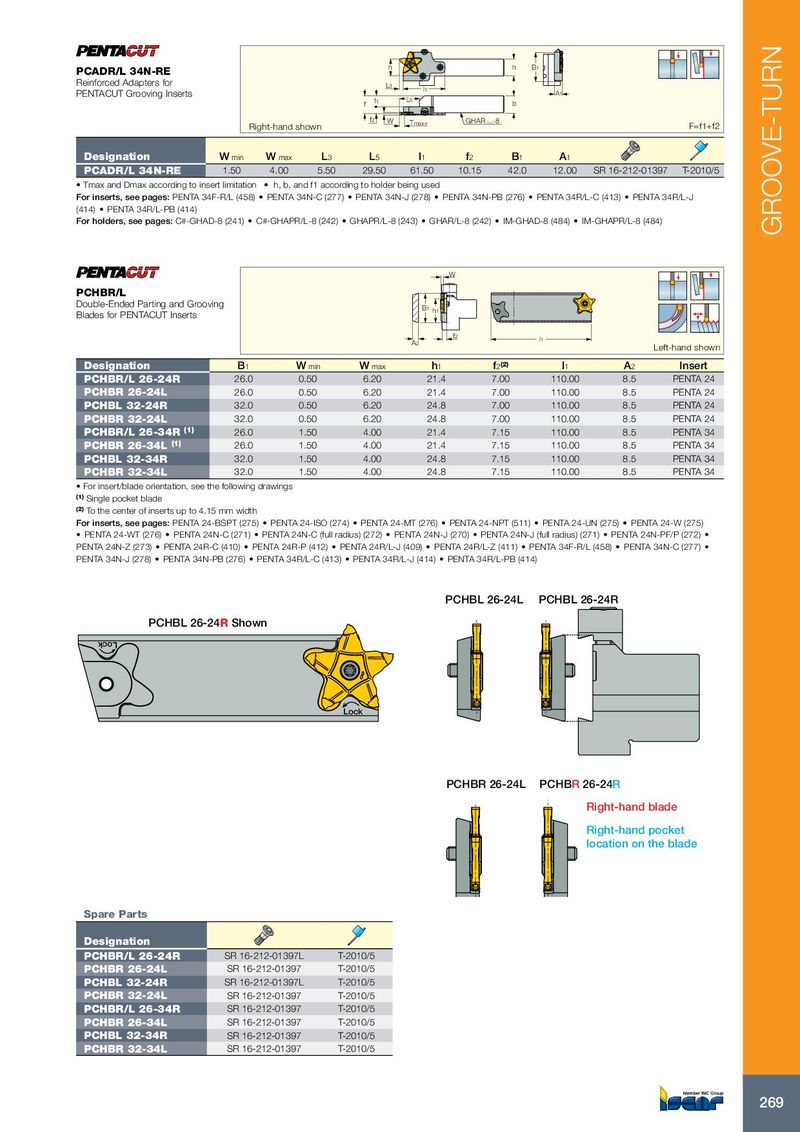

| PCADR/L 34N-RE Reinforced Adapters for PENTACUT Grooving Inserts | Right-hand sh | own | h f1 f W f2 Tmax-r l1 L3 L5 | GHAR ... | h b -8 | B1 A1 | F=f1+f2 | ||
| Designation | Wmin | Wmax | L3 | L5 l1 | f2 | B1 | A1 | ||
| PCADR/L 34N-RE | 1.50 | 4.00 | 5.50 | 29.50 61.50 | 10.15 | 42.0 | 12.00 | SR 16-212-01397 | T-2010/5 |
- Tmax and Dmax according to insert limitation
- h, b, and f1 according to holder being used
For inserts, see pages: PENTA 34F-R/L (458) PENTA 34N-C (277) PENTA 34N-J (278) PENTA 34N-PB (276) PENTA 34R/L-C (413) PENTA 34R/L-J (414) PENTA 34R/L-PB (414) For holders, see pages: C#-GHAD-8 (241) C#-GHAPR/L-8 (242) GHAPR/L-8 (243) GHAR/L-8 (242) IM-GHAD-8 (484) IM-GHAPR/L-8 (484)
| PCHBR/L | W | |||||||
| Double-Ended Parting and Grooving Blades for PENTACUT Inserts | A2 f2 B1 h1 | l1 | Left-hand shown | |||||
| Designation | B1 | Wmin | Wmax | h1 | f2(2) | l1 | A2 | Insert |
| PCHBR/L 26-24R | 26.0 | 0.50 | 6.20 | 21.4 | 7.00 | 110.00 | 8.5 | PENTA 24 |
| PCHBR 26-24L | 26.0 | 0.50 | 6.20 | 21.4 | 7.00 | 110.00 | 8.5 | PENTA 24 |
| PCHBL 32-24R | 32.0 | 0.50 | 6.20 | 24.8 | 7.00 | 110.00 | 8.5 | PENTA 24 |
| PCHBR 32-24L | 32.0 | 0.50 | 6.20 | 24.8 | 7.00 | 110.00 | 8.5 | PENTA 24 |
| PCHBR/L 26-34R(1) | 26.0 | 1.50 | 4.00 | 21.4 | 7.15 | 110.00 | 8.5 | PENTA 34 |
| PCHBR 26-34L(1) | 26.0 | 1.50 | 4.00 | 21.4 | 7.15 | 110.00 | 8.5 | PENTA 34 |
| PCHBL 32-34R | 32.0 | 1.50 | 4.00 | 24.8 | 7.15 | 110.00 | 8.5 | PENTA 34 |
| PCHBR 32-34L | 32.0 | 1.50 | 4.00 | 24.8 | 7.15 | 110.00 | 8.5 | PENTA 34 |
- For insert/blade orientation, see the following drawings
(1) Single pocket blade (2) To the center of inserts up to 4.15 mm width For inserts, see pages: PENTA 24-BSPT (275) PENTA 24-ISO (274) PENTA 24-MT (276) PENTA 24-NPT (511) PENTA 24-UN (275) PENTA 24-W (275)
- PENTA 24-WT (276)
- PENTA 24N-C (271)
- PENTA 24N-C (full radius) (272)
- PENTA 24N-J (270)
- PENTA 24N-J (full radius) (271)
- PENTA 24N-PF/P (272)
PENTA 24N-Z (273) PENTA 24R-C (410) PENTA 24R-P (412) PENTA 24R/L-J (409) PENTA 24R/L-Z (411) PENTA 34F-R/L (458) PENTA 34N-C (277) PENTA 34N-J (278) PENTA 34N-PB (276) PENTA 34R/L-C (413) PENTA 34R/L-J (414) PENTA 34R/L-PB (414)
PCHBL 26-24L PCHBL 26-24R
PCHBL 26-24R Shown
Lock
Lock
PCHBR 26-24L PCHBR 26-24R
Right-hand blade
Right-hand pocket
location on the blade
Spare Parts
| Designation | ||
| PCHBR/L 26-24R | SR 16-212-01397L | T-2010/5 |
| PCHBR 26-24L | SR 16-212-01397 | T-2010/5 |
| PCHBL 32-24R | SR 16-212-01397L | T-2010/5 |
| PCHBR 32-24L | SR 16-212-01397 | T-2010/5 |
| PCHBR/L 26-34R | SR 16-212-01397 | T-2010/5 |
| PCHBR 26-34L | SR 16-212-01397 | T-2010/5 |
| PCHBL 32-34R | SR 16-212-01397 | T-2010/5 |
| PCHBR 32-34L | SR 16-212-01397 | T-2010/5 |
