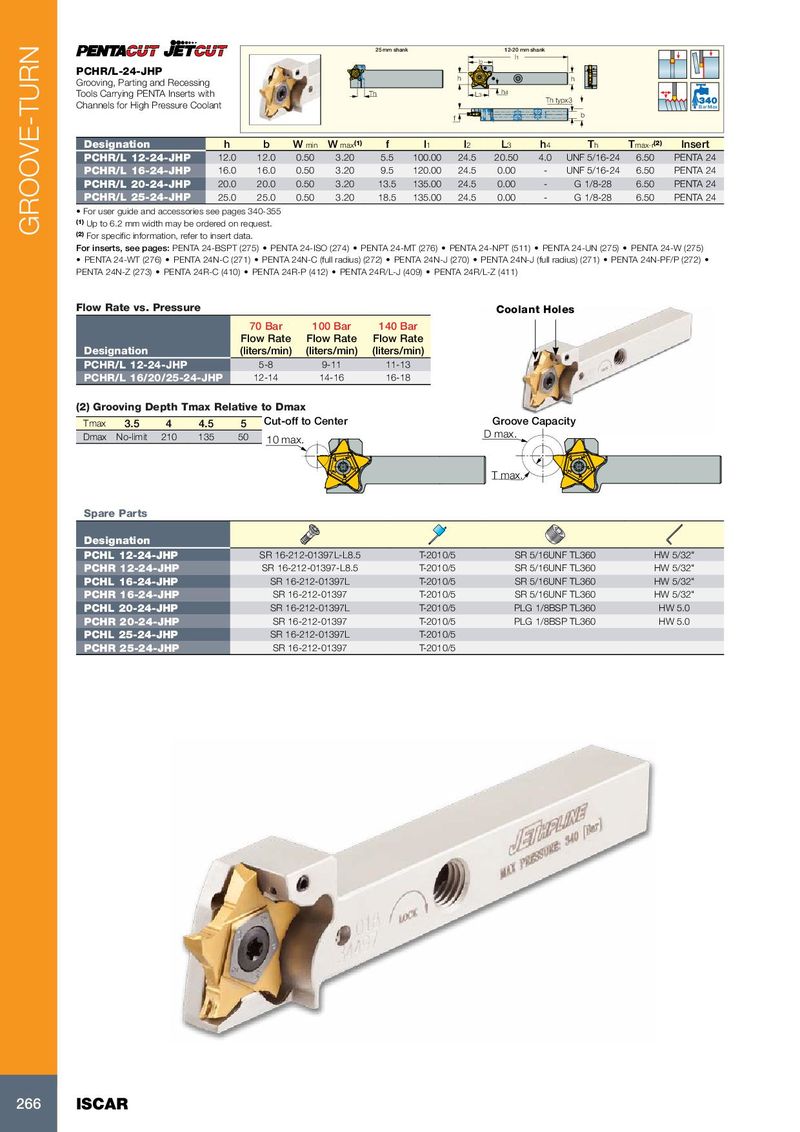

25 mm shank 12-20 mm shank
PCHR/L-24-JHP
Grooving, Parting and Recessing h h
| Tools Carrying PENTA Inserts with | Th | L | h4 | ||||
| 3 | |||||||
| Channels for High Pressure Coolant | Th typx3 | ||||||
| Bar Max | |||||||
| f | b |
| Designation | h | b | W min | W max(1) | f | l1 | l2 | L3 | h4 | Th | Tmax-r (2) | Insert | |
| PCHR/L 12-24-JHP | 12.0 | 12.0 | 0.50 | 3.20 | 5.5 | 100.00 | 24.5 | 20.50 | 4.0 | UNF 5/16-24 | 6.50 | PENTA 24 | |
| PCHR/L 16-24-JHP | 16.0 | 16.0 | 0.50 | 3.20 | 9.5 | 120.00 | 24.5 | 0.00 | - | UNF 5/16-24 | 6.50 | PENTA 24 | |
| PCHR/L 20-24-JHP | 20.0 | 20.0 | 0.50 | 3.20 | 13.5 | 135.00 | 24.5 | 0.00 | - | G 1/8-28 | 6.50 | PENTA 24 | |
| PCHR/L 25-24-JHP | 25.0 | 25.0 | 0.50 | 3.20 | 18.5 | 135.00 | 24.5 | 0.00 | - | G 1/8-28 | 6.50 | PENTA 24 |
- For user guide and accessories see pages 340-355
(1) Up to 6.2 mm width may be ordered on request. (2) For specific information, refer to insert data. For inserts, see pages: PENTA 24-BSPT (275) PENTA 24-ISO (274) PENTA 24-MT (276) PENTA 24-NPT (511) PENTA 24-UN (275) PENTA 24-W (275)
- PENTA 24-WT (276)
- PENTA 24N-C (271)
- PENTA 24N-C (full radius) (272)
- PENTA 24N-J (270)
- PENTA 24N-J (full radius) (271)
- PENTA 24N-PF/P (272)
PENTA 24N-Z (273) PENTA 24R-C (410) PENTA 24R-P (412) PENTA 24R/L-J (409) PENTA 24R/L-Z (411)
Flow Rate vs. Pressure Coolant Holes
| 70 Bar | 100 Bar | 140 Bar | ||||
| Flow Rate | Flow Rate | Flow Rate | ||||
| Designation | (liters/min) | (liters/min) | (liters/min) | |||
| PCHR/L 12-24-JHP | 5-8 | 9-11 | 11-13 | |||
| PCHR/L 16/20/25-24-JHP | 12-14 | 14-16 | 16-18 | |||
| (2) Grooving Depth Tmax Relative to Dmax |
| Tmax | 3.5 | 4 | 4.5 | 5 | Cut-off to Center | Groove Capacity |
| Dmax No-limit | 210 | 135 | 50 | 10 max. | D max. |
T max.
Spare Parts
Designation
| PCHL 12-24-JHP | SR 16-212-01397L-L8.5 | T-2010/5 | SR 5/16UNF TL360 | HW 5/32" | |
| PCHR 12-24-JHP | SR 16-212-01397-L8.5 | T-2010/5 | SR 5/16UNF TL360 | HW 5/32" | |
| PCHL 16-24-JHP | SR 16-212-01397L | T-2010/5 | SR 5/16UNF TL360 | HW 5/32" | |
| PCHR 16-24-JHP | SR 16-212-01397 | T-2010/5 | SR 5/16UNF TL360 | HW 5/32" | |
| PCHL 20-24-JHP | SR 16-212-01397L | T-2010/5 | PLG 1/8BSP TL360 | HW 5.0 | |
| PCHR 20-24-JHP | SR 16-212-01397 | T-2010/5 | PLG 1/8BSP TL360 | HW 5.0 | |
| PCHL 25-24-JHP | SR 16-212-01397L | T-2010/5 | |||
| PCHR 25-24-JHP | SR 16-212-01397 | T-2010/5 |
