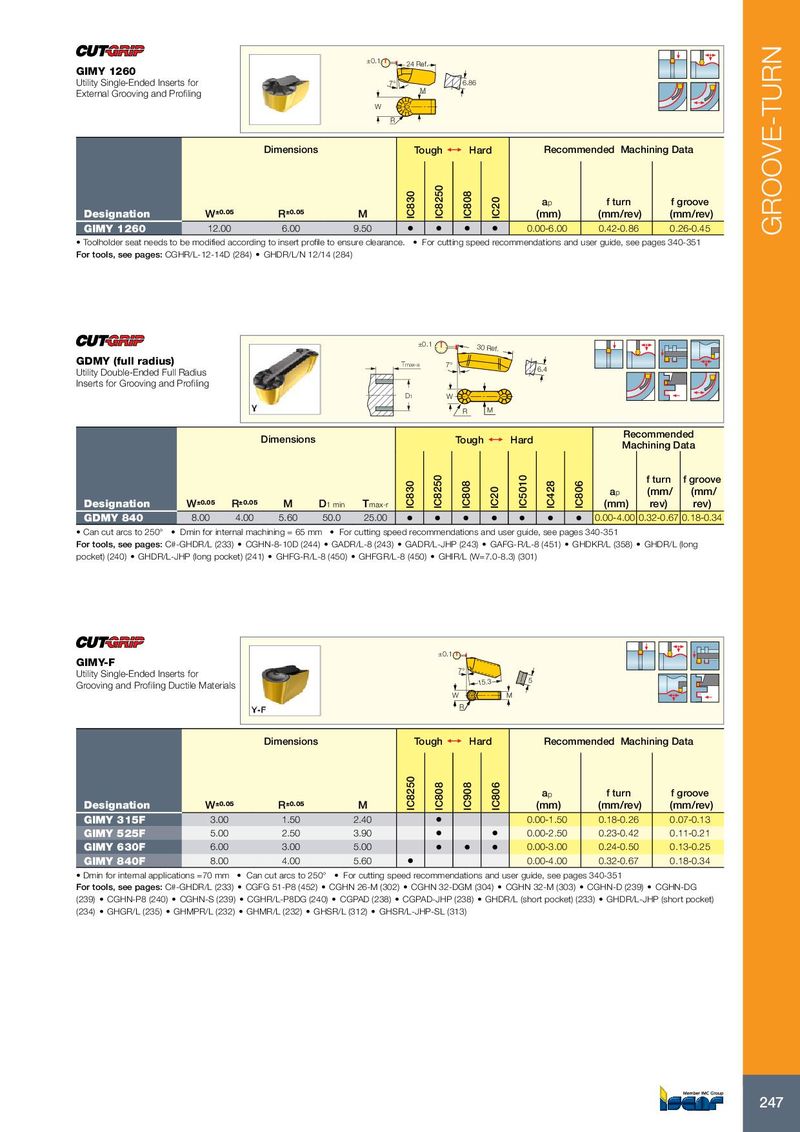

GIMY 1260
| Utility Single-Ended Inserts for | 7° | 6.86 | ||
| External Grooving and Profiling | M | |||
| W | ||||
| R |
Dimensions Tough 1 Hard Recommended Machining Data
ap f turn f groove
| Designation | W±0.05 | R ±0.05 | M | (mm) | (mm/rev) | (mm/rev) | ||||
| GIMY 1260 | 12.00 | 6.00 | 9.50 | • | • | • | • | 0.00-6.00 | 0.42-0.86 | 0.26-0.45 |
- Toolholder seat needs to be modified according to insert profile to ensure clearance.
- For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: CGHR/L-12-14D (284) GHDR/L/N 12/14 (284)
±0.1 30 Ref.
GDMY (full radius)
Tmax-a 7° Utility Double-Ended Full Radius 6.4 Inserts for Grooving and Profiling D1 W R M Recommended Dimensions Tough 1 Hard Machining Data
f turn f groove
ap (mm/ (mm/
| Designation | W±0.05 | R ±0.05 | M | D1 min | Tmax-r | (mm) | rev) | rev) | |||||||
| GDMY 840 | 8.00 | 4.00 | 5.60 | 50.0 | 25.00 | • | • | • | • | • | • | • | 0.00-4.00 0.32-0.67 0.18-0.34 |
- Can cut arcs to 250°
- Dmin for internal machining = 65 mm
- For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: C#-GHDR/L (233) CGHN-8-10D (244) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDKR/L (358) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
±0.1
GIMY-F
Utility Single-Ended Inserts for 7°
| Grooving and Profiling Ductile Materials | 15.3 | 5 | ||
| W | M | |||
| R |
Dimensions Tough 1 Hard Recommended Machining Data
ap f turn f groove
| Designation | W±0.05 | R ±0.05 | M | (mm) | (mm/rev) | (mm/rev) | ||||
| GIMY 315F | 3.00 | 1.50 | 2.40 | • | 0.00-1.50 | 0.18-0.26 | 0.07-0.13 | |||
| GIMY 525F | 5.00 | 2.50 | 3.90 | • | • | 0.00-2.50 | 0.23-0.42 | 0.11-0.21 | ||
| GIMY 630F | 6.00 | 3.00 | 5.00 | • | • | • | 0.00-3.00 | 0.24-0.50 | 0.13-0.25 | |
| GIMY 840F | 8.00 | 4.00 | 5.60 | • | 0.00-4.00 | 0.32-0.67 | 0.18-0.34 |
- Dmin for internal applications =70 mm
- Can cut arcs to 250°
- For cutting speed recommendations and user guide, see pages 340-351
For tools, see pages: C#-GHDR/L (233) CGFG 51-P8 (452) CGHN 26-M (302) CGHN 32-DGM (304) CGHN 32-M (303) CGHN-D (239) CGHN-DG (239) CGHN-P8 (240) CGHN-S (239) CGHR/L-P8DG (240) CGPAD (238) CGPAD-JHP (238) GHDR/L (short pocket) (233) GHDR/L-JHP (short pocket) (234) GHGR/L (235) GHMPR/L (232) GHMR/L (232) GHSR/L (312) GHSR/L-JHP-SL (313)
