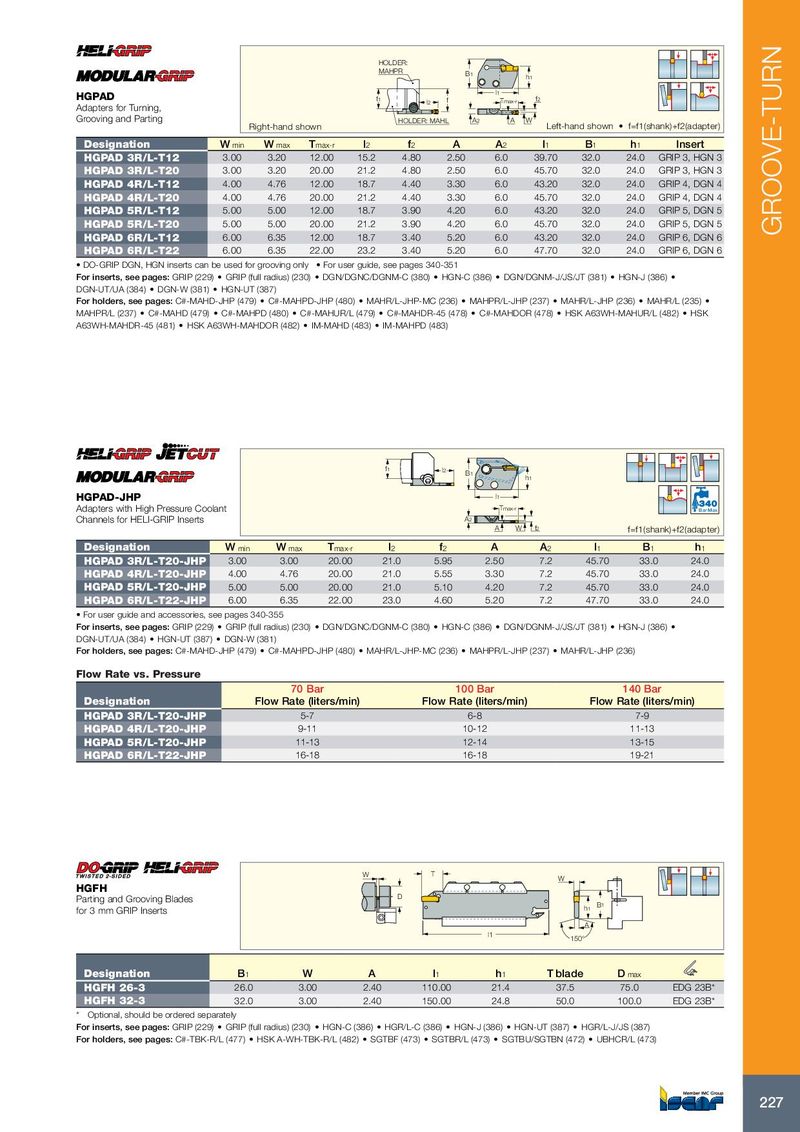

| HGPAD Adapters for Turning, | f1 HO MA | l2 LDER: HPR | f B | Tmax-r l1 1 | f2 h1 | ||||||
| Grooving and Parting | R | ight-hand s | hown | HOLDER: MA | HL | A2 A | W Left-h | and shown | • f=f1(s | hank)+f2(adapter) | |
| Designation | Wmin | Wmax | Tmax-r | l2 | f2 | A | A2 | l1 | B1 | h1 | Insert |
| HGPAD 3R/L-T12 | 3.00 | 3.20 | 12.00 | 15.2 | 4.80 | 2.50 | 6.0 | 39.70 | 32.0 | 24.0 | GRIP 3, HGN 3 |
| HGPAD 3R/L-T20 | 3.00 | 3.20 | 20.00 | 21.2 | 4.80 | 2.50 | 6.0 | 45.70 | 32.0 | 24.0 | GRIP 3, HGN 3 |
| HGPAD 4R/L-T12 | 4.00 | 4.76 | 12.00 | 18.7 | 4.40 | 3.30 | 6.0 | 43.20 | 32.0 | 24.0 | GRIP 4, DGN 4 |
| HGPAD 4R/L-T20 | 4.00 | 4.76 | 20.00 | 21.2 | 4.40 | 3.30 | 6.0 | 45.70 | 32.0 | 24.0 | GRIP 4, DGN 4 |
| HGPAD 5R/L-T12 | 5.00 | 5.00 | 12.00 | 18.7 | 3.90 | 4.20 | 6.0 | 43.20 | 32.0 | 24.0 | GRIP 5, DGN 5 |
| HGPAD 5R/L-T20 | 5.00 | 5.00 | 20.00 | 21.2 | 3.90 | 4.20 | 6.0 | 45.70 | 32.0 | 24.0 | GRIP 5, DGN 5 |
| HGPAD 6R/L-T12 | 6.00 | 6.35 | 12.00 | 18.7 | 3.40 | 5.20 | 6.0 | 43.20 | 32.0 | 24.0 | GRIP 6, DGN 6 |
| HGPAD 6R/L-T22 | 6.00 | 6.35 | 22.00 | 23.2 | 3.40 | 5.20 | 6.0 | 47.70 | 32.0 | 24.0 | GRIP 6,DGN 6 |
- DO-GRIP DGN, HGN inserts can be used for grooving only
- For user guide, see pages 340-351
For inserts, see pages: GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) HGN-C (386) DGN/DGNM-J/JS/JT (381) HGN-J (386) DGN-UT/UA (384) DGN-W (381) HGN-UT (387) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483)
| f1 | l2 | B1 | h1 | ||||||||
| HGPAD-JHP Adapters with High Pressure Coola | nt | l1 Tmax | -r | Bar Max | |||||||
| Channels for HELI-GRIP Inserts | A2 A | W f2 | f=f1(sha | nk)+f2( | adapter) | ||||||
| Designation | Wmin | Wmax | Tmax-r | l2 | f2 | A | A2 | l1 | B1 | h1 | |
| HGPAD 3R/L-T20-JHP | 3.00 | 3.00 | 20.00 | 21.0 | 5.95 | 2.50 | 7.2 | 45.70 | 33.0 | 24.0 | |
| HGPAD 4R/L-T20-JHP | 4.00 | 4.76 | 20.00 | 21.0 | 5.55 | 3.30 | 7.2 | 45.70 | 33.0 | 24.0 | |
| HGPAD 5R/L-T20-JHP | 5.00 | 5.00 | 20.00 | 21.0 | 5.10 | 4.20 | 7.2 | 45.70 | 33.0 | 24.0 | |
| HGPAD 6R/L-T22-JHP | 6.00 | 6.35 | 22.00 | 23.0 | 4.60 | 5.20 | 7.2 | 47.70 | 33.0 | 24.0 |
- For user guide and accessories, see pages 340-355
For inserts, see pages: GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) HGN-C (386) DGN/DGNM-J/JS/JT (381) HGN-J (386) DGN-UT/UA (384) HGN-UT (387) DGN-W (381) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| HGPAD 3R/L-T20-JHP | 5-7 | 6-8 | 7-9 |
| HGPAD 4R/L-T20-JHP | 9-11 | 10-12 | 11-13 |
| HGPAD 5R/L-T20-JHP | 11-13 | 12-14 | 13-15 |
| HGPAD 6R/L-T22-JHP | 16-18 | 16-18 | 19-21 |
Spare Parts
Designation
HELIR/L 3232-3T20 SR M6X20 DIN912 HW 5.0
| HGFH Parting and Grooving Blades for 3 mm GRIP Inserts | W D | l1 A 150° W T h1 B1 | |||
| Designation | B1 | W | A | l1 h1 T blade Dmax | |
| HGFH 26-3 | 26.0 | 3.00 | 2.40 | 110.00 21.4 37.5 75.0 | EDG 23B |
| HGFH 32-3 | 32.0 | 3.00 | 2.40 | 150.00 24.8 50.0 100.0 | EDG 23B |
| HELIR/L 2020-4T25 | SR M6X20 DIN912 | HW 5.0 |
| HELIR/L 3232-4T25 | SR M6X20 DIN912 | HW 5.0 |
| HELIR 2020-5T25 | SR M6X16 DIN912 | HW 5.0 |
| HELIR/L 2525-5T25 | SR M6X20 DIN912 | HW 5.0 |
* Optional, should be ordered separately For inserts, see pages: GRIP (229) GRIP (full radius) (230) HGN-C (386) HGR/L-C (386) HGN-J (386) HGN-UT (387) HGR/L-J/JS (387) For holders, see pages: C#-TBK-R/L (477) HSK A-WH-TBK-R/L (482) SGTBF (473) SGTBR/L (473) SGTBU/SGTBN (472) UBHCR/L (473)
