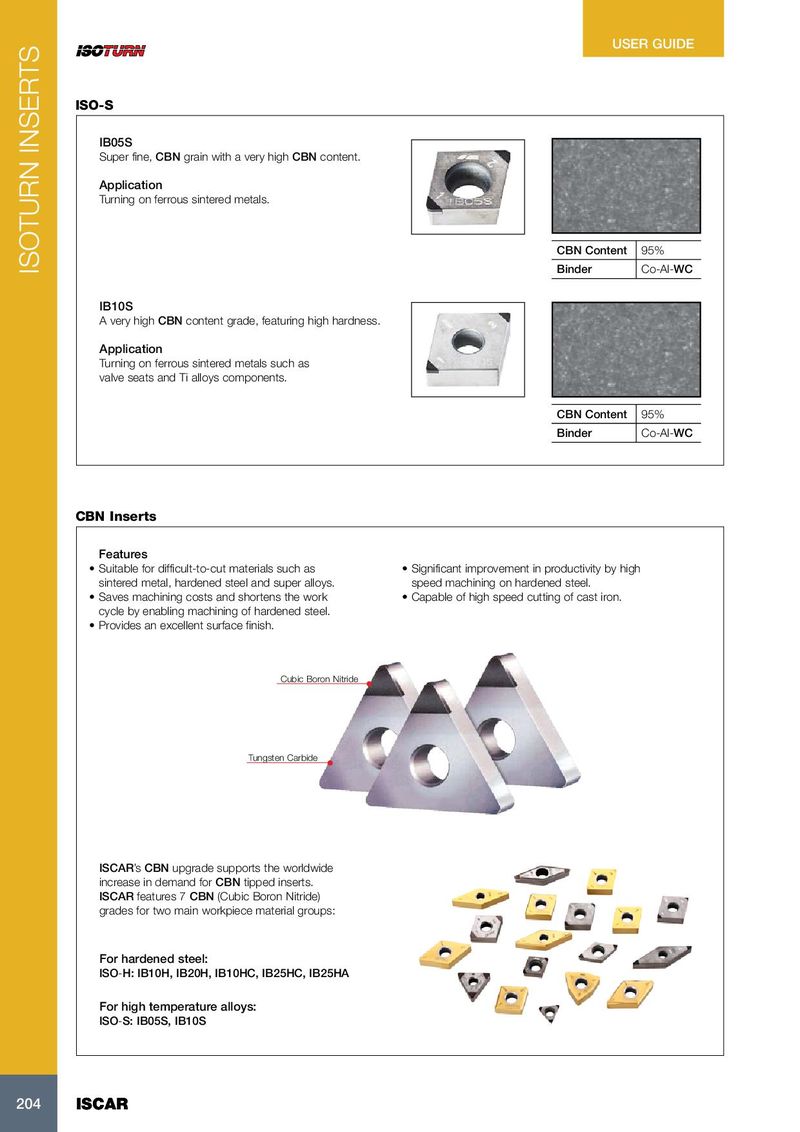

USER GUIDE ISO-S IB05S Super fine, CBN grain with a very high CBN content. Application Turning on ferrous sintered metals. CBN Content 95% ISOTURN INSERTS Binder Co-Al-WC IB10S A very high CBN content grade, featuring high hardness. Application Turning on ferrous sintered metals such as valve seats and Ti alloys components. CBN Content 95% Binder Co-Al-WC CBN Inserts Features • Suitable for difficult-to-cut materials such as • Significant improvement in productivity by high sintered metal, hardened steel and super alloys. speed machining on hardened steel. • Saves machining costs and shortens the work • Capable of high speed cutting of cast iron. cycle by enabling machining of hardened steel. • Provides an excellent surface finish. Cubic Boron Nitride Tungsten Carbide ISCAR’s CBN upgrade supports the worldwide increase in demand for CBN tipped inserts. ISCAR features 7 CBN (Cubic Boron Nitride) grades for two main workpiece material groups: For hardened steel: ISO-H: IB10H, IB20H, IB10HC, IB25HC, IB25HA For high temperature alloys: ISO-S: IB05S, IB10S 204 204 ISCAR ISCAR
