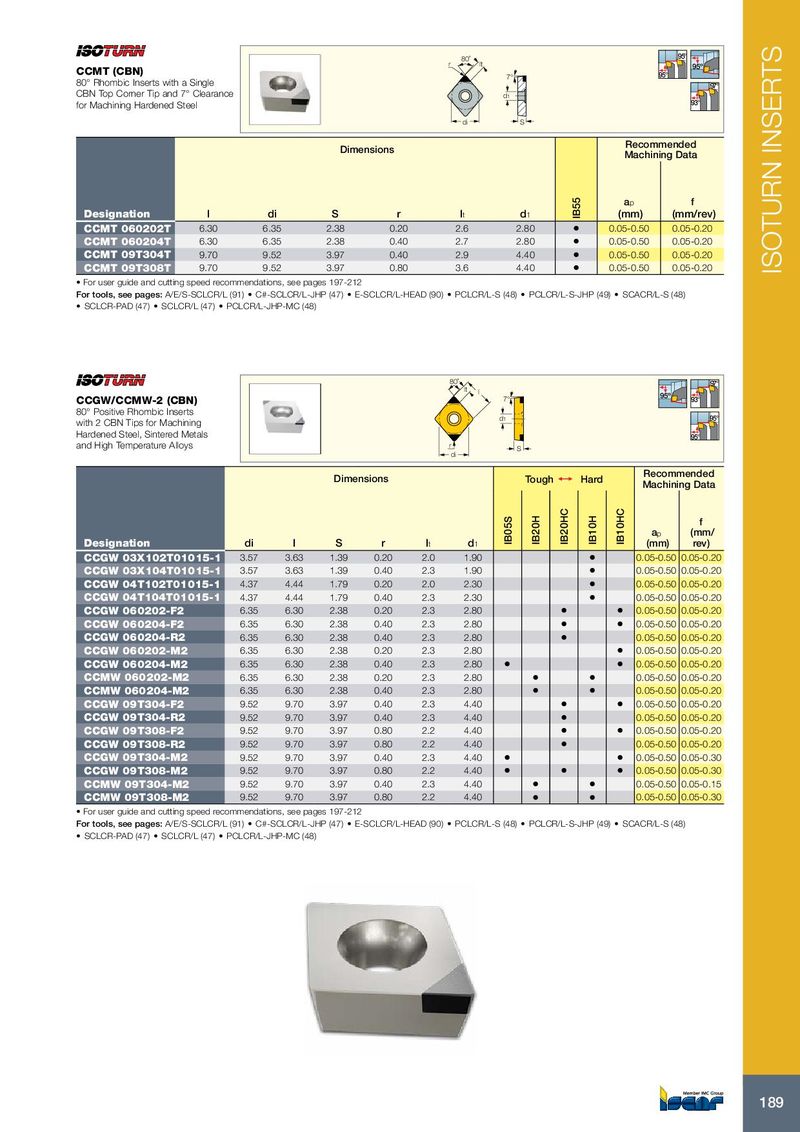

Каталог Iscar токарный инструмент 2017 - страница 193

ISOTURN INSERTS
80˚ 95°
r lt 95º
CCMT (CBN) 7° 95°
80° Rhombic Inserts with a Single 97°
CBN Top Corner Tip and 7° Clearance d1
for Machining Hardened Steel 93°
di S

Recommended
Dimensions
Machining Data

ap f


IB55
Designation l di S r lt d1 (mm) (mm/rev)
CCMT 060202T 6.30 6.35 2.38 0.20 2.6 2.80 • 0.05-0.50 0.05-0.20
CCMT 060204T 6.30 6.35 2.38 0.40 2.7 2.80 • 0.05-0.50 0.05-0.20
CCMT 09T304T 9.70 9.52 3.97 0.40 2.9 4.40 • 0.05-0.50 0.05-0.20
CCMT 09T308T 9.70 9.52 3.97 0.80 3.6 4.40 • 0.05-0.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E/S-SCLCR/L (91) • C#-SCLCR/L-JHP (47) • E-SCLCR/L-HEAD (90) • PCLCR/L-S (48) • PCLCR/L-S-JHP (49) • SCACR/L-S (48)
• SCLCR-PAD (47) • SCLCR/L (47) • PCLCR/L-JHP-MC (48)


80˚ 97°
lt l
95º
CCGW/CCMW-2 (CBN) 7° 93°
80° Positive Rhombic Inserts
d1 95°
with 2 CBN Tips for Machining
Hardened Steel, Sintered Metals 95°
and High Temperature Alloys r S
di
Recommended
Dimensions Tough 1 Hard
Machining Data


IB20HC


IB10HC
f
IB20H


IB10H
IB05S
ap (mm/
Designation di l S r lt d1 (mm) rev)
CCGW 03X102T01015-1 3.57 3.63 1.39 0.20 2.0 1.90 • 0.05-0.50 0.05-0.20
CCGW 03X104T01015-1 3.57 3.63 1.39 0.40 2.3 1.90 • 0.05-0.50 0.05-0.20
CCGW 04T102T01015-1 4.37 4.44 1.79 0.20 2.0 2.30 • 0.05-0.50 0.05-0.20
CCGW 04T104T01015-1 4.37 4.44 1.79 0.40 2.3 2.30 • 0.05-0.50 0.05-0.20
CCGW 060202-F2 6.35 6.30 2.38 0.20 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCGW 060204-F2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCGW 060204-R2 6.35 6.30 2.38 0.40 2.3 2.80 • 0.05-0.50 0.05-0.20
CCGW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • 0.05-0.50 0.05-0.20
CCGW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCMW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCMW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCGW 09T304-F2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.20
CCGW 09T304-R2 9.52 9.70 3.97 0.40 2.3 4.40 • 0.05-0.50 0.05-0.20
CCGW 09T308-F2 9.52 9.70 3.97 0.80 2.2 4.40 • • 0.05-0.50 0.05-0.20
CCGW 09T308-R2 9.52 9.70 3.97 0.80 2.2 4.40 • 0.05-0.50 0.05-0.20
CCGW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.30
CCGW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • • 0.05-0.50 0.05-0.30
CCMW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.15
CCMW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • 0.05-0.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E/S-SCLCR/L (91) • C#-SCLCR/L-JHP (47) • E-SCLCR/L-HEAD (90) • PCLCR/L-S (48) • PCLCR/L-S-JHP (49) • SCACR/L-S (48)
• SCLCR-PAD (47) • SCLCR/L (47) • PCLCR/L-JHP-MC (48)


189
