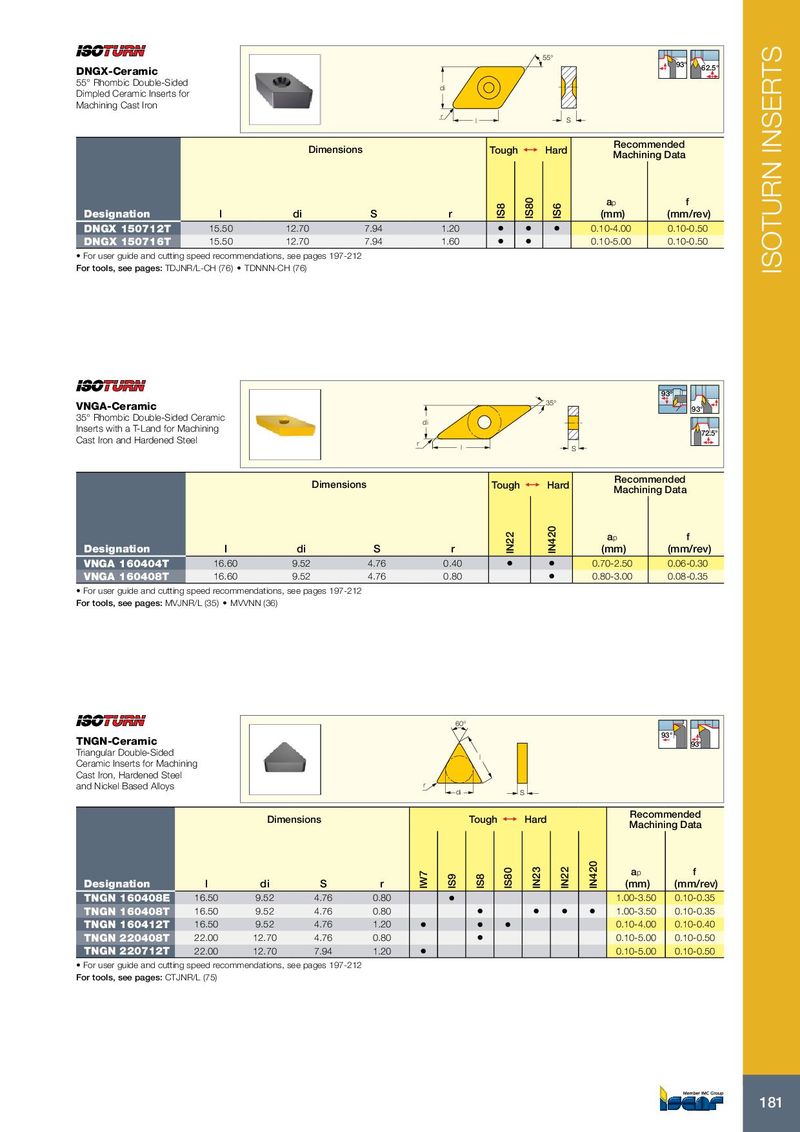

DNGX-Ceramic
55° Rhombic Double-Sided Dimpled Ceramic Inserts for di Machining Cast Iron r S l Dimensions Tough 1 Hard
93° 62.5°
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | |||
| DNGX 150712T | 15.50 | 12.70 | 7.94 | 1.20 | • | • | • | 0.10-4.00 | 0.10-0.50 |
| DNGX 150716T | 15.50 | 12.70 | 7.94 | 1.60 | • | • | 0.10-5.00 | 0.10-0.50 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: TDJNR/L-CH (76) TDNNN-CH (76)
VNGA-Ceramic
35° Rhombic Double-Sided Ceramic Inserts with a T-Land for Machining Cast Iron and Hardened Steel
Dimensions
di r
l
35°
S
Tough 1 Hard
93º 93° 72.5°
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| VNGA 160404T | 16.60 | 9.52 | 4.76 | 0.40 | • | • | 0.70-2.50 | 0.06-0.30 |
| VNGA 160408T | 16.60 | 9.52 | 4.76 | 0.80 | • | 0.80-3.00 | 0.08-0.35 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: MVJNR/L (35) MVVNN (36)
60°
TNGN-Ceramic
Triangular Double-Sided Ceramic Inserts for Machining l Cast Iron, Hardened Steel and Nickel Based Alloys r di S Dimensions Tough 1 Hard
93° 93°
Recommended Machining Data
a p f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| TNGN 160408E | 16.50 | 9.52 | 4.76 | 0.80 | • | 1.00-3.50 | 0.10-0.35 | |
| TNGN 160408T | 16.50 | 9.52 | 4.76 | 0.80 | • | • • • 1.00-3.50 | 0.10-0.35 | |
| TNGN 160412T | 16.50 | 9.52 | 4.76 | 1.20 | • | • | • 0.10-4.00 | 0.10-0.40 |
| TNGN 220408T | 22.00 | 12.70 | 4.76 | 0.80 | • | 0.10-5.00 | 0.10-0.50 | |
| TNGN 220712T | 22.00 | 12.70 | 7.94 | 1.20 | • | 0.10-5.00 | 0.10-0.50 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: CTJNR/L (75)
