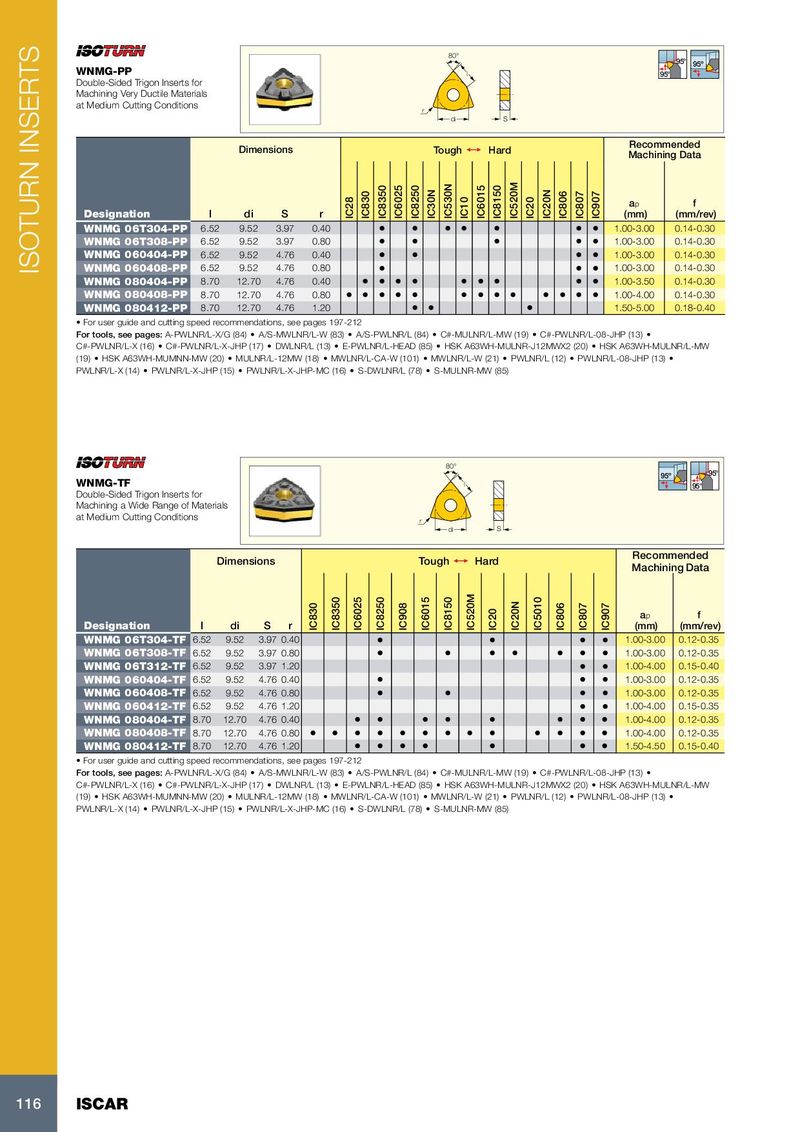

ISOTURN INSERTS
80°
95° 95º
WNMG-PP l 95°
Double-Sided Trigon Inserts for
Machining Very Ductile Materials
at Medium Cutting Conditions
r
di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520M
IC530N
IC8350
IC6025
IC8250
IC6015
IC8150
IC30N
IC20N
IC830
IC806
IC807
IC907
IC28
IC10
IC20
ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T304-PP 6.52 9.52 3.97 0.40 • • • • • • • 1.00-3.00 0.14-0.30
WNMG 06T308-PP 6.52 9.52 3.97 0.80 • • • • • 1.00-3.00 0.14-0.30
WNMG 060404-PP 6.52 9.52 4.76 0.40 • • • • 1.00-3.00 0.14-0.30
WNMG 060408-PP 6.52 9.52 4.76 0.80 • • • 1.00-3.00 0.14-0.30
WNMG 080404-PP 8.70 12.70 4.76 0.40 • • • • • • • • • 1.00-3.50 0.14-0.30
WNMG 080408-PP 8.70 12.70 4.76 0.80 • • • • • • • • • • • • • 1.00-4.00 0.14-0.30
WNMG 080412-PP 8.70 12.70 4.76 1.20 • • • 1.50-5.00 0.18-0.40
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • E-PWLNR/L-HEAD (85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW
(19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) •
PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)
80°
95º 95°
WNMG-TF l 95°
Double-Sided Trigon Inserts for
Machining a Wide Range of Materials
at Medium Cutting Conditions r
di S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC520M
IC8350
IC6025
IC8250
IC6015
IC8150
IC5010
IC20N
IC830
IC908
IC806
IC807
IC907
IC20
ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T304-TF 6.52 9.52 3.97 0.40 • • • • 1.00-3.00 0.12-0.35
WNMG 06T308-TF 6.52 9.52 3.97 0.80 • • • • • • • 1.00-3.00 0.12-0.35
WNMG 06T312-TF 6.52 9.52 3.97 1.20 • • 1.00-4.00 0.15-0.40
WNMG 060404-TF 6.52 9.52 4.76 0.40 • • • 1.00-3.00 0.12-0.35
WNMG 060408-TF 6.52 9.52 4.76 0.80 • • • • 1.00-3.00 0.12-0.35
WNMG 060412-TF 6.52 9.52 4.76 1.20 • • 1.00-4.00 0.15-0.35
WNMG 080404-TF 8.70 12.70 4.76 0.40 • • • • • • • • 1.00-4.00 0.12-0.35
WNMG 080408-TF 8.70 12.70 4.76 0.80 • • • • • • • • • • • • • 1.00-4.00 0.12-0.35
WNMG 080412-TF 8.70 12.70 4.76 1.20 • • • • • • • 1.50-4.50 0.15-0.40
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • E-PWLNR/L-HEAD (85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW
(19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) •
PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)
116 ISCAR
