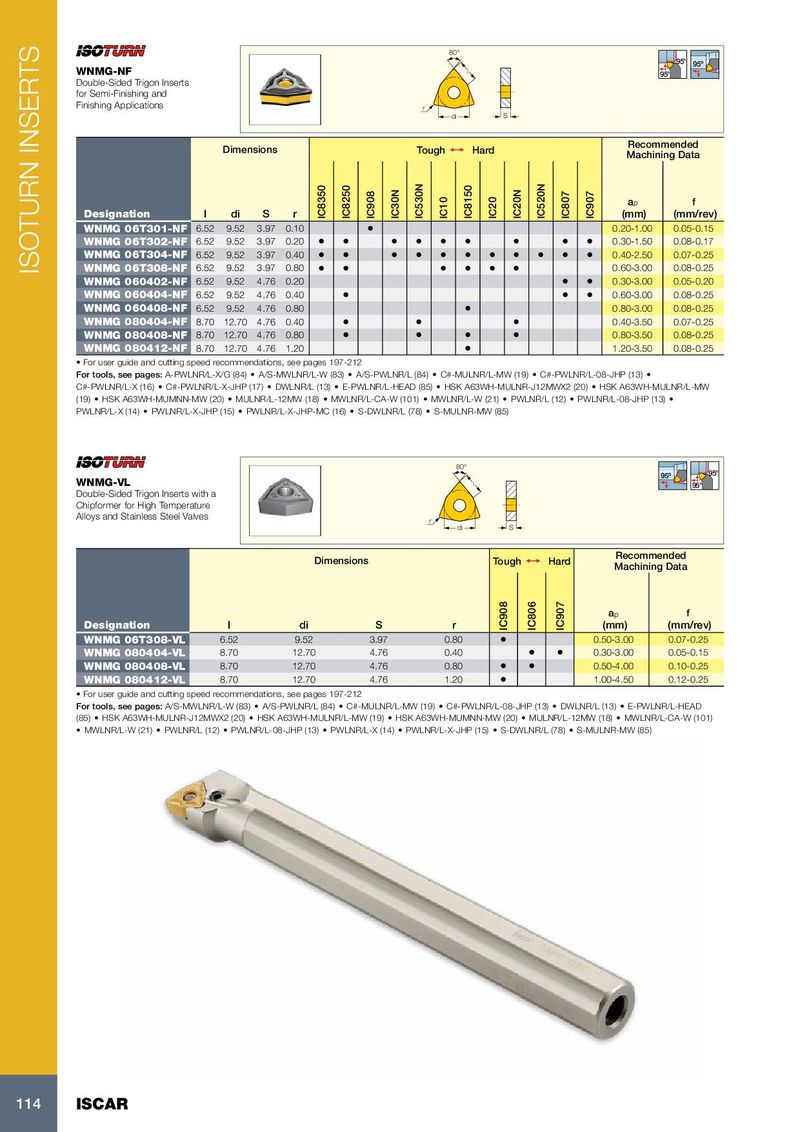

ISOTURN INSERTS
80°
95° 95º
WNMG-NF l 95°
Double-Sided Trigon Inserts
for Semi-Finishing and
Finishing Applications r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC530N


IC520N
IC8350
IC8250


IC8150
IC30N


IC20N
IC908


IC807
IC907
ap f


IC10

IC20
Designation l di S r (mm) (mm/rev)
WNMG 06T301-NF 6.52 9.52 3.97 0.10 • 0.20-1.00 0.05-0.15
WNMG 06T302-NF 6.52 9.52 3.97 0.20 • • • • • • • • • 0.30-1.50 0.08-0.17
WNMG 06T304-NF 6.52 9.52 3.97 0.40 • • • • • • • • • • • 0.40-2.50 0.07-0.25
WNMG 06T308-NF 6.52 9.52 3.97 0.80 • • • • • • 0.60-3.00 0.08-0.25
WNMG 060402-NF 6.52 9.52 4.76 0.20 • • 0.30-3.00 0.05-0.20
WNMG 060404-NF 6.52 9.52 4.76 0.40 • • • 0.60-3.00 0.08-0.25
WNMG 060408-NF 6.52 9.52 4.76 0.80 • 0.80-3.00 0.08-0.25
WNMG 080404-NF 8.70 12.70 4.76 0.40 • • • 0.40-3.50 0.07-0.25
WNMG 080408-NF 8.70 12.70 4.76 0.80 • • • • 0.80-3.50 0.08-0.25
WNMG 080412-NF 8.70 12.70 4.76 1.20 • 1.20-3.50 0.08-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • E-PWLNR/L-HEAD (85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW
(19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) •
PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)


80°
95º 95°
WNMG-VL l 95°
Double-Sided Trigon Inserts with a
Chipformer for High Temperature
Alloys and Stainless Steel Valves r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC908
IC806
IC907

ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T308-VL 6.52 9.52 3.97 0.80 • 0.50-3.00 0.07-0.25
WNMG 080404-VL 8.70 12.70 4.76 0.40 • • 0.30-3.00 0.05-0.15
WNMG 080408-VL 8.70 12.70 4.76 0.80 • • 0.50-4.00 0.10-0.25
WNMG 080412-VL 8.70 12.70 4.76 1.20 • 1.00-4.50 0.12-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • E-PWLNR/L-HEAD
(85) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101)
• MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • S-DWLNR/L (78) • S-MULNR-MW (85)
