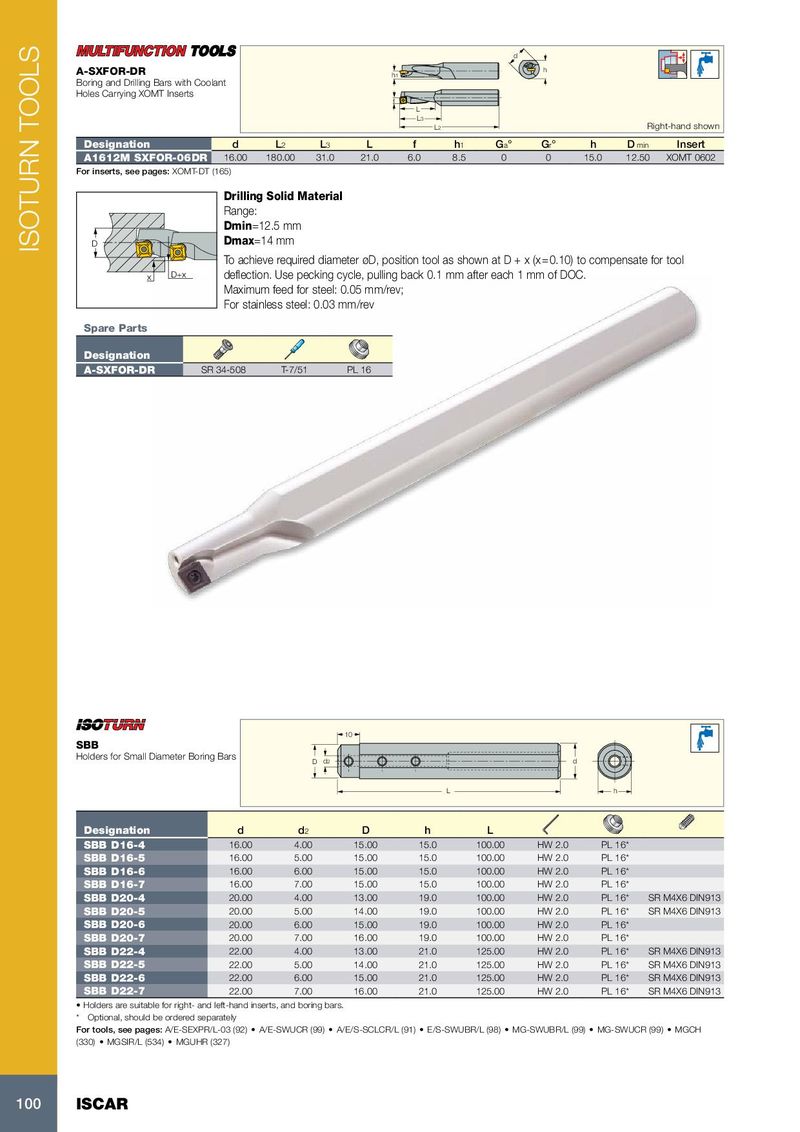

A-SXFOR-DR h Boring and Drilling Bars with Coolant Holes Carrying XOMT Inserts f L L3 L Right-hand shown 2
| Designation | d | L2 | L3 | L | f | h1 | Ga° | Gr° | h | D min | Insert |
| A1612M SXFOR-06DR | 16.00 | 180.00 | 31.0 | 21.0 | 6.0 | 8.5 | 0 | 0 | 15.0 | 12.50 | XOMT 0602 |
For inserts, see pages: XOMT-DT (165) Drilling Solid Material Range: Dmin=12.5 mm
Dmax=14 mm
D
To achieve required diameter øD, position tool as shown at D + x (x=0.10) to compensate for tool
D+x deflection. Use pecking cycle, pulling back 0.1 mm after each 1 mm of DOC. x Maximum feed for steel: 0.05 mm/rev;
For stainless steel: 0.03 mm/rev
Spare Parts
Designation
A-SXFOR-DR SR 34-508 T-7/51 PL 16
10
SBB
Holders for Small Diameter Boring Bars
D d2 d
L h
| Designation | d | d 2 | D | h | L | |||
| SBB D16-4 | 16.00 | 4.00 | 15.00 | 15.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D16-5 | 16.00 | 5.00 | 15.00 | 15.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D16-6 | 16.00 | 6.00 | 15.00 | 15.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D16-7 | 16.00 | 7.00 | 15.00 | 15.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D20-4 | 20.00 | 4.00 | 13.00 | 19.0 | 100.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
| SBB D20-5 | 20.00 | 5.00 | 14.00 | 19.0 | 100.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
| SBB D20-6 | 20.00 | 6.00 | 15.00 | 19.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D20-7 | 20.00 | 7.00 | 16.00 | 19.0 | 100.00 | HW 2.0 | PL 16* | |
| SBB D22-4 | 22.00 | 4.00 | 13.00 | 21.0 | 125.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
| SBB D22-5 | 22.00 | 5.00 | 14.00 | 21.0 | 125.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
| SBB D22-6 | 22.00 | 6.00 | 15.00 | 21.0 | 125.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
| SBB D22-7 | 22.00 | 7.00 | 16.00 | 21.0 | 125.00 | HW 2.0 | PL 16* | SR M4X6 DIN913 |
- Holders are suitable for right- and left-hand inserts, and boring bars.
* Optional, should be ordered separately For tools, see pages: A/E-SEXPR/L-03 (92) A/E-SWUCR (99) A/E/S-SCLCR/L (91) E/S-SWUBR/L (98) MG-SWUBR/L (99) MG-SWUCR (99) MGCH (330) MGSIR/L (534) MGUHR (327)
