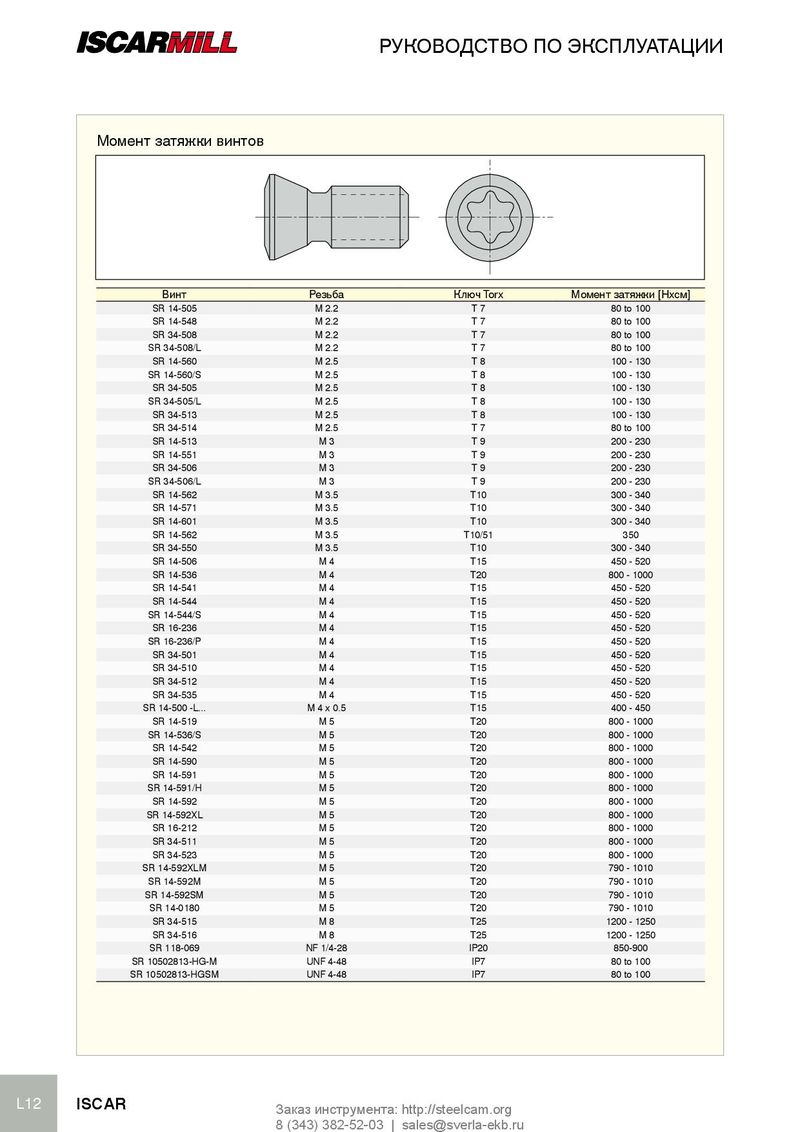

Момент затяжки винтов
| Винт | Резьба | Ключ Torx | Моментзатяжки[Нxсм] |
| SR 14-505 | M 2.2 | T 7 | 80 to 100 |
| SR 14-548 | M 2.2 | T 7 | 80 to 100 |
| SR 34-508 | M 2.2 | T 7 | 80 to 100 |
| SR 34-508/L | M 2.2 | T 7 | 80 to 100 |
| SR 14-560 | M 2.5 | T 8 | 100 - 130 |
| SR 14-560/S | M 2.5 | T 8 | 100 - 130 |
| SR 34-505 | M 2.5 | T 8 | 100 - 130 |
| SR 34-505/L | M 2.5 | T 8 | 100 - 130 |
| SR 34-513 | M 2.5 | T 8 | 100 - 130 |
| SR 34-514 | M 2.5 | T 7 | 80 to 100 |
| SR 14-513 | M 3 | T 9 | 200 - 230 |
| SR 14-551 | M 3 | T 9 | 200 - 230 |
| SR 34-506 | M 3 | T 9 | 200 - 230 |
| SR 34-506/L | M 3 | T 9 | 200 - 230 |
| SR 14-562 | M 3.5 | T10 | 300 - 340 |
| SR 14-571 | M 3.5 | T10 | 300 - 340 |
| SR 14-601 | M 3.5 | T10 | 300 - 340 |
| SR 14-562 | M 3.5 | T10/51 | 350 |
| SR 34-550 | M 3.5 | T10 | 300 - 340 |
| SR 14-506 | M 4 | T15 | 450 - 520 |
| SR 14-536 | M 4 | T20 | 800 - 1000 |
| SR 14-541 | M 4 | T15 | 450 - 520 |
| SR 14-544 | M 4 | T15 | 450 - 520 |
| SR 14-544/S | M 4 | T15 | 450 - 520 |
| SR 16-236 | M 4 | T15 | 450 - 520 |
| SR 16-236/P | M 4 | T15 | 450 - 520 |
| SR 34-501 | M 4 | T15 | 450 - 520 |
| SR 34-510 | M 4 | T15 | 450 - 520 |
| SR 34-512 | M 4 | T15 | 450 - 520 |
| SR 34-535 | M 4 | T15 | 450 - 520 |
| SR 14-500 -L... | M 4 x 0.5 | T15 | 400 - 450 |
| SR 14-519 | M 5 | T20 | 800 - 1000 |
| SR 14-536/S | M 5 | T20 | 800 - 1000 |
| SR 14-542 | M 5 | T20 | 800 - 1000 |
| SR 14-590 | M 5 | T20 | 800 - 1000 |
| SR 14-591 | M 5 | T20 | 800 - 1000 |
| SR 14-591/H | M 5 | T20 | 800 - 1000 |
| SR 14-592 | M 5 | T20 | 800 - 1000 |
| SR 14-592XL | M 5 | T20 | 800 - 1000 |
| SR 16-212 | M 5 | T20 | 800 - 1000 |
| SR 34-511 | M 5 | T20 | 800 - 1000 |
| SR 34-523 | M 5 | T20 | 800 - 1000 |
| SR 14-592XLM | M 5 | T20 | 790 - 1010 |
| SR 14-592M | M 5 | T20 | 790 - 1010 |
| SR 14-592SM | M 5 | T20 | 790 - 1010 |
| SR 14-0180 | M 5 | T20 | 790 - 1010 |
| SR 34-515 | M 8 | T25 | 1200 - 1250 |
| SR 34-516 | M 8 | T25 | 1200 - 1250 |
| SR 118-069 | NF 1/4-28 | IP20 | 850-900 |
| SR 10502813-HG-M | UNF 4-48 | IP7 | 80 to 100 |
| SR 10502813-HGSM | UNF 4-48 | IP7 | 80 to 100 |
