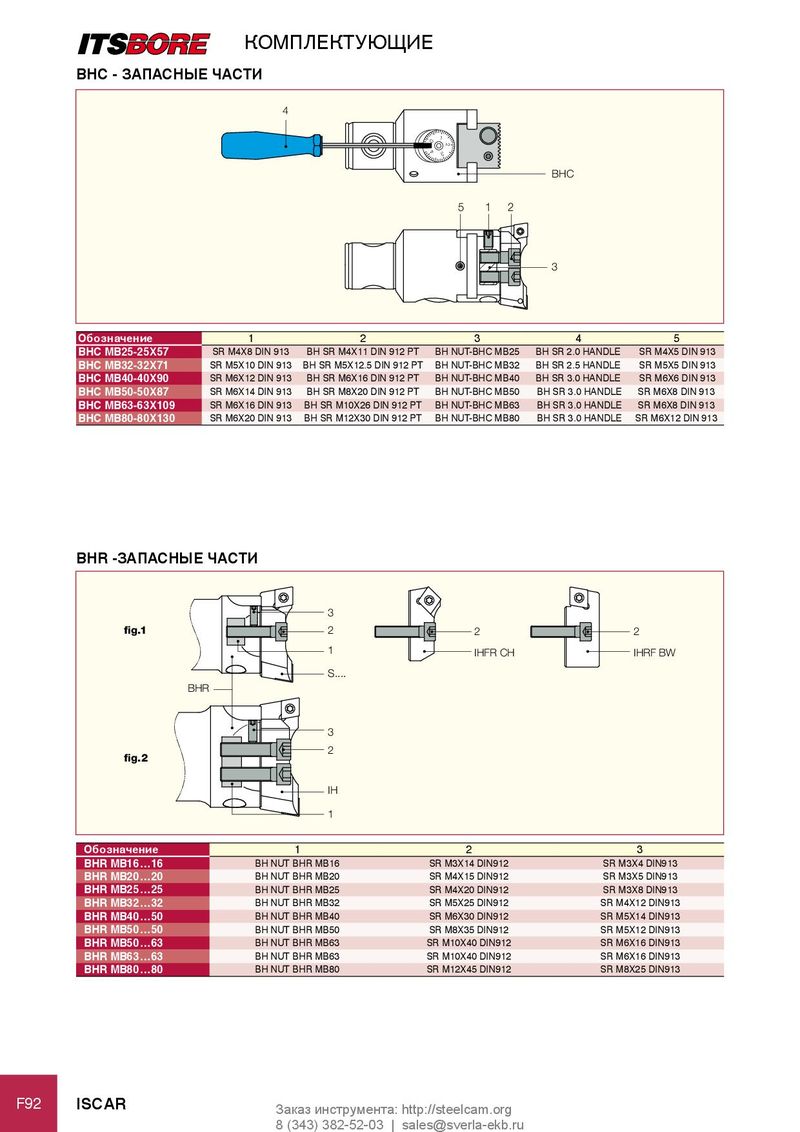

BHC - ЗаПасные части

4

1 0 4 3

BHC

5 1 2

3

обозначение 1 2 3 4 5

BHC MB25-25X57 SR M4X8 DIN 913BH SR M4X11 DIN 912 PTBH NUT-BHC MB25BH SR 2.0 HANDLE SR M4X5 DIN 913
BHC MB32-32X71 SR M5X10 DIN 913 BH SR M5X12.5 DIN 912 PT BH NUT-BHC MB32BH SR 2.5 HANDLE SR M5X5 DIN 913
BHC MB40-40X90 SR M6X12 DIN 913 BH SR M6X16 DIN 912 PTBH NUT-BHC MB40BH SR 3.0 HANDLESR M6X6 DIN 913
BHC MB50-50X87 SR M6X14 DIN 913 BH SR M8X20 DIN 912 PTBH NUT-BHC MB50 BH SR 3.0 HANDLESR M6X8 DIN 913
BHC MB63-63X109 SR M6X16 DIN 913 BH SR M10X26 DIN 912 PT BH NUT-BHC MB63 BH SR 3.0 HANDLESR M6X8 DIN 913

BHC MB80-80X130 SR M6X20 DIN 913 BH SR M12X30 DIN 912 PT BH NUT-BHC MB80 BH SR 3.0 HANDLE SR M6X12 DIN 913

BHR -ЗаПасные части

3

fig.1222
1IHFR CHIHRF BW

S.... BHR

3 2 fig.2 IH 1

обозначение 1 2 3

BHR MB16…16 BH NUT BHR MB16SR M3X14 DIN912SR M3X4 DIN913
BHR MB20…20 BH NUT BHR MB20SR M4X15 DIN912SR M3X5 DIN913
BHR MB25…25 BH NUT BHR MB25SR M4X20 DIN912SR M3X8 DIN913
BHR MB32…32 BH NUT BHR MB32SR M5X25 DIN912SR M4X12 DIN913
BHR MB40…50 BH NUT BHR MB40SR M6X30 DIN912SR M5X14 DIN913
BHR MB50…50 BH NUT BHR MB50SR M8X35 DIN912SR M5X12 DIN913
BHR MB50…63 BH NUT BHR MB63SR M10X40 DIN912SR M6X16 DIN913
BHR MB63…63 BH NUT BHR MB63SR M10X40 DIN912SR M6X16 DIN913
BHR MB80…80 BH NUT BHR MB80SR M12X45 DIN912SR M8X25 DIN913
