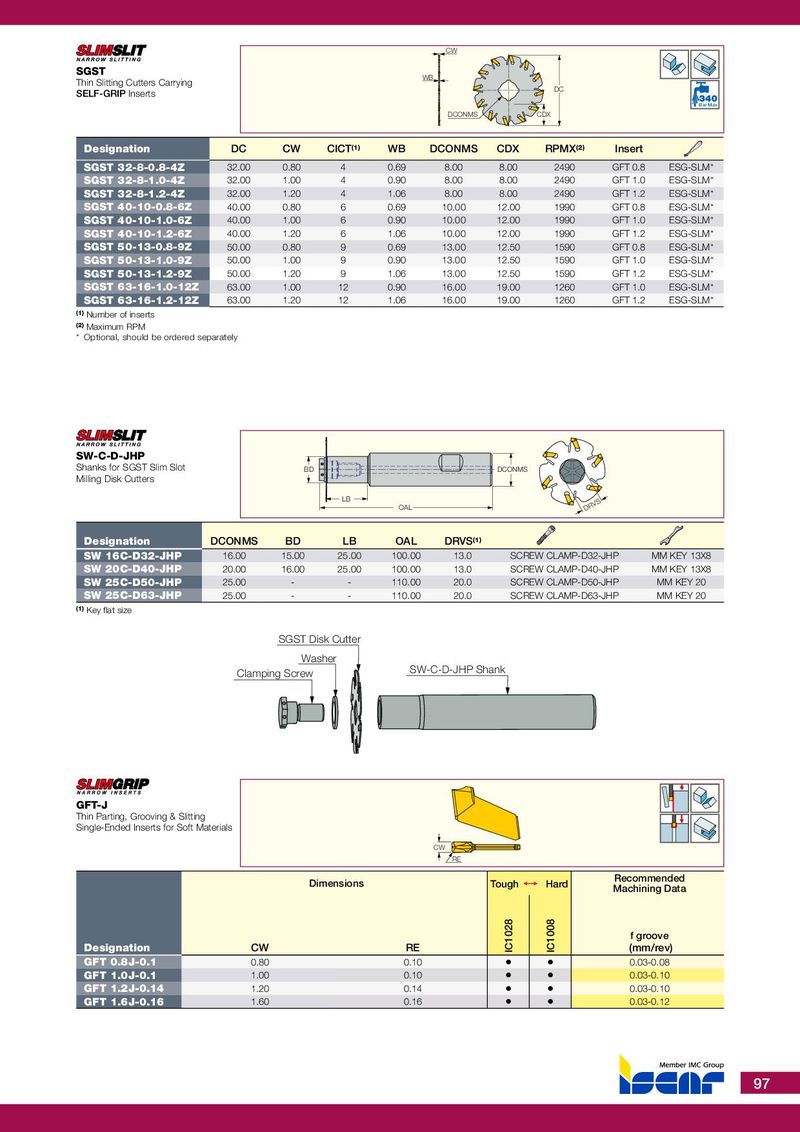

| SGST Thin Slitting Cutters Carrying SELF-GRIPInserts | DCONMS WB CW | DC CDX | Bar Max | ||||||
| Designation | DC | CW | CICT(1) | WB | DCONMS | CDX | RPMX(2) | Insert | |
| SGST 32-8-0.8-4Z | 32.00 | 0.80 | 4 | 0.69 | 8.00 | 8.00 | 2490 | GFT 0.8 | ESG-SLM |
| SGST 32-8-1.0-4Z | 32.00 | 1.00 | 4 | 0.90 | 8.00 | 8.00 | 2490 | GFT 1.0 | ESG-SLM |
| SGST 32-8-1.2-4Z | 32.00 | 1.20 | 4 | 1.06 | 8.00 | 8.00 | 2490 | GFT 1.2 | ESG-SLM |
| SGST 40-10-0.8-6Z | 40.00 | 0.80 | 6 | 0.69 | 10.00 | 12.00 | 1990 | GFT 0.8 | ESG-SLM |
| SGST 40-10-1.0-6Z | 40.00 | 1.00 | 6 | 0.90 | 10.00 | 12.00 | 1990 | GFT 1.0 | ESG-SLM |
| SGST 40-10-1.2-6Z | 40.00 | 1.20 | 6 | 1.06 | 10.00 | 12.00 | 1990 | GFT 1.2 | ESG-SLM |
| SGST 50-13-0.8-9Z | 50.00 | 0.80 | 9 | 0.69 | 13.00 | 12.50 | 1590 | GFT 0.8 | ESG-SLM |
| SGST 50-13-1.0-9Z | 50.00 | 1.00 | 9 | 0.90 | 13.00 | 12.50 | 1590 | GFT 1.0 | ESG-SLM |
| SGST 50-13-1.2-9Z | 50.00 | 1.20 | 9 | 1.06 | 13.00 | 12.50 | 1590 | GFT 1.2 | ESG-SLM |
| SGST 63-16-1.0-12Z | 63.00 | 1.00 | 12 | 0.90 | 16.00 | 19.00 | 1260 | GFT 1.0 | ESG-SLM |
| SGST 63-16-1.2-12Z | 63.00 | 1.20 | 12 | 1.06 | 16.00 | 19.00 | 1260 | GFT 1.2 | ESG-SLM |
(1) Number of inserts (2) Maximum RPM * Optional, should be ordered separately
SW-C-D-JHP
| Shanks for SGST Slim Slot | BD | DCONMS | |||
| Milling Disk Cutters | |||||
| LB | |||||
| OAL | DRVS |
| Designation | DCONMS | BD | LB | OAL | DRVS(1) | |||
| SW 16C-D32-JHP | 16.00 | 15.00 | 25.00 | 100.00 | 13.0 | SCREW CLAMP-D32-JHP | MM KEY 13X8 | |
| SW 20C-D40-JHP | 20.00 | 16.00 | 25.00 | 100.00 | 13.0 | SCREW CLAMP-D40-JHP | MM KEY 13X8 | |
| SW 25C-D50-JHP | 25.00 | - | - | 110.00 | 20.0 | SCREW CLAMP-D50-JHP | MM KEY 20 | |
| SW 25C-D63-JHP | 25.00 | - | - | 110.00 | 20.0 | SCREW CLAMP-D63-JHP | MM KEY 20 |
(1) Key flat size SGST Disk Cutter Washer Clamping Screw SW-C-D-JHP Shank
GFT-J
Thin Parting, Grooving & Slitting Single-Ended Inserts for Soft Materials
Dimensions
CW RE
Tough 1 Hard
Recommended Machining Data
f groove
| Designation | CW | RE | (mm/rev) | ||
| GFT 0.8J-0.1 | 0.80 | 0.10 | • | • | 0.03-0.08 |
| GFT 1.0J-0.1 | 1.00 | 0.10 | • | • | 0.03-0.10 |
| GFT 1.2J-0.14 | 1.20 | 0.14 | • | • | 0.03-0.10 |
| GFT 1.6J-0.16 | 1.60 | 0.16 | • | • | 0.03-0.12 |
