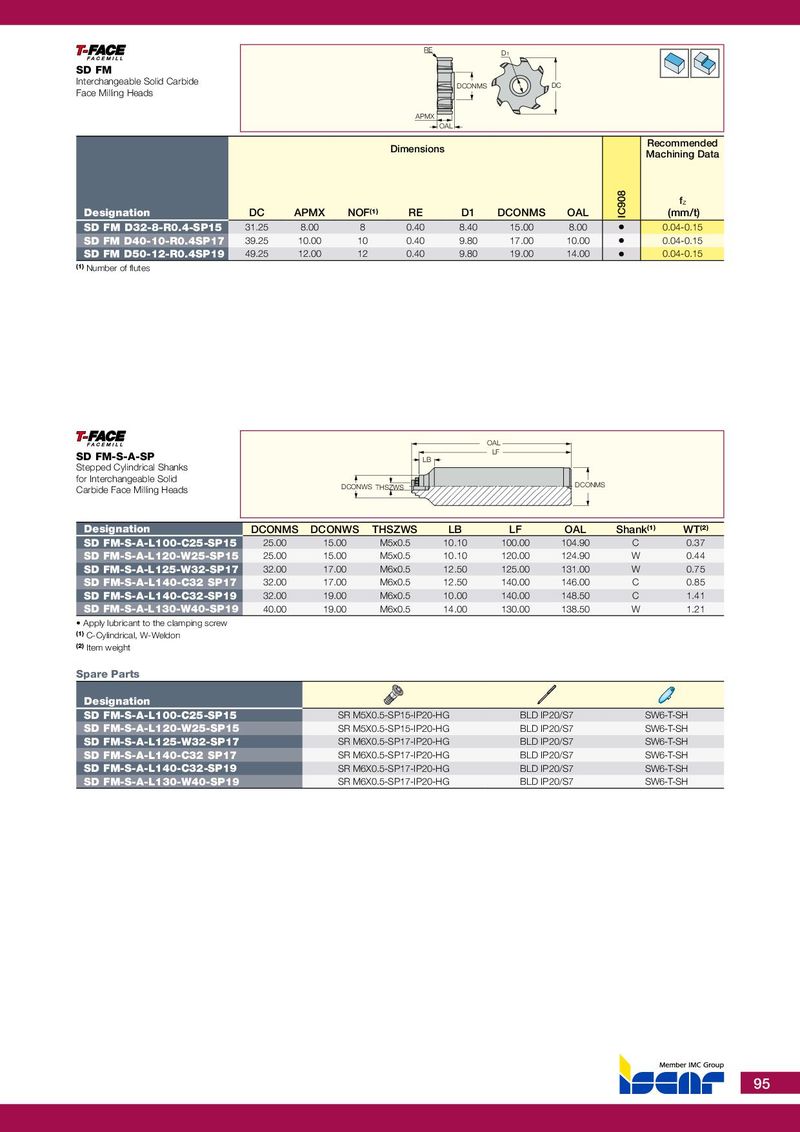

| SD FM Interchangeable Solid Carbide Face Milling Heads | APMX RE | OAL DCONMS | D1 DC | |||||
| Dimensio | ns | Recommended Machining Data | ||||||
| Designation | DC | APMX | NOF(1) | RE | D1 | DCONMS | OAL | IC908 fz (mm/t) |
| SD FM D32-8-R0.4-SP15 | 31.25 | 8.00 | 8 | 0.40 | 8.40 | 15.00 | 8.00 | • 0.04-0.15 |
| SD FM D40-10-R0.4SP17 | 39.25 | 10.00 | 10 | 0.40 | 9.80 | 17.00 | 10.00 | • 0.04-0.15 |
| SD FM D50-12-R0.4SP19 | 49.25 | 12.00 | 12 | 0.40 | 9.80 | 19.00 | 14.00 | • 0.04-0.15 |
(1) Number of flutes
| OAL | ||||||||
| SD FM-S-A-SP Stepped Cylindrical Shanks for Interchangeable Solid Carbide Face Milling Heads | DCONW | THSZWS LB S | LF | DCONMS | ||||
| Designation | DCONMS | DCONWS | THSZWS | LB | LF | OAL | Shank(1) | WT(2) |
| SD FM-S-A-L100-C25-SP15 | 25.00 | 15.00 | M5x0.5 | 10.10 | 100.00 | 104.90 | C | 0.37 |
| SD FM-S-A-L120-W25-SP15 | 25.00 | 15.00 | M5x0.5 | 10.10 | 120.00 | 124.90 | W | 0.44 |
| SD FM-S-A-L125-W32-SP17 | 32.00 | 17.00 | M6x0.5 | 12.50 | 125.00 | 131.00 | W | 0.75 |
| SD FM-S-A-L140-C32 SP17 | 32.00 | 17.00 | M6x0.5 | 12.50 | 140.00 | 146.00 | C | 0.85 |
| SD FM-S-A-L140-C32-SP19 | 32.00 | 19.00 | M6x0.5 | 10.00 | 140.00 | 148.50 | C | 1.41 |
| SD FM-S-A-L130-W40-SP19 | 40.00 | 19.00 | M6x0.5 | 14.00 | 130.00 | 138.50 | W | 1.21 |
- Apply lubricant to the clamping screw
(1) C-Cylindrical, W-Weldon (2) Item weight
Spare Parts
| Designation | |||
| SD FM-S-A-L100-C25-SP15 | SR M5X0.5-SP15-IP20-HG | BLD IP20/S7 | SW6-T-SH |
| SD FM-S-A-L120-W25-SP15 | SR M5X0.5-SP15-IP20-HG | BLD IP20/S7 | SW6-T-SH |
| SD FM-S-A-L125-W32-SP17 | SR M6X0.5-SP17-IP20-HG | BLD IP20/S7 | SW6-T-SH |
| SD FM-S-A-L140-C32 SP17 | SR M6X0.5-SP17-IP20-HG | BLD IP20/S7 | SW6-T-SH |
| SD FM-S-A-L140-C32-SP19 | SR M6X0.5-SP17-IP20-HG | BLD IP20/S7 | SW6-T-SH |
| SD FM-S-A-L130-W40-SP19 | SR M6X0.5-SP17-IP20-HG | BLD IP20/S7 | SW6-T-SH |
