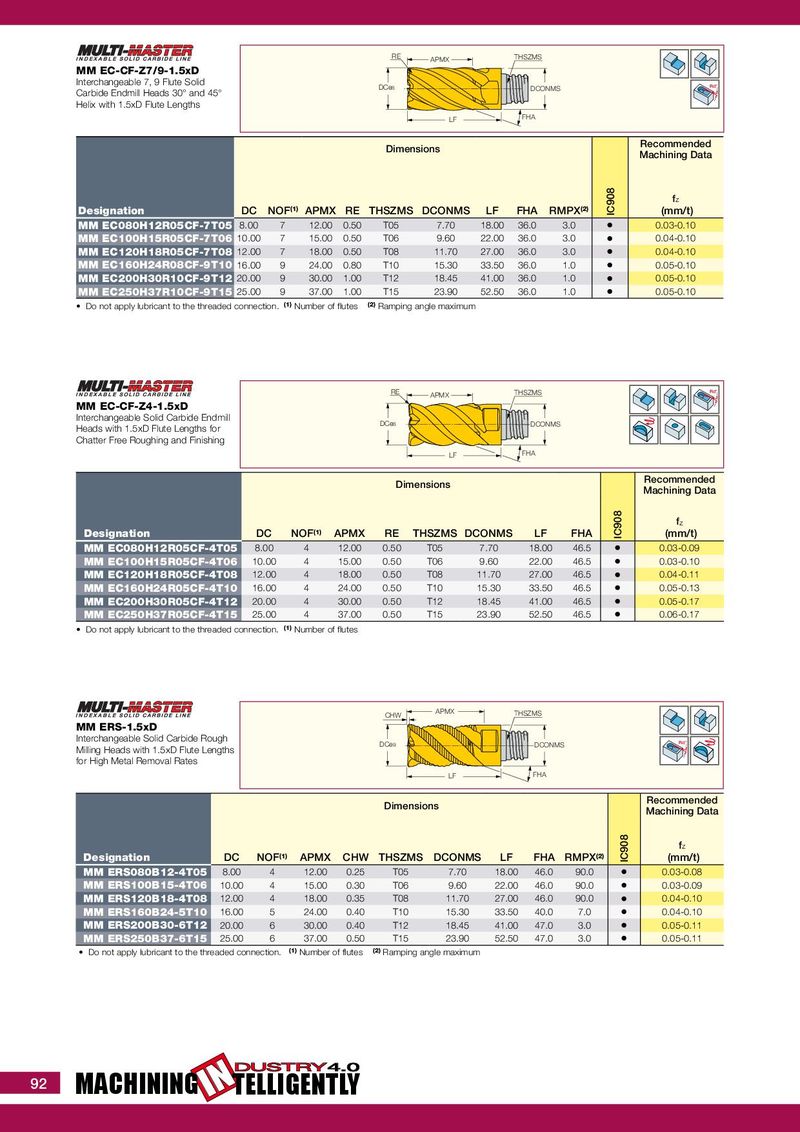

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E
RE APMX THSZMS
MM EC-CF-Z7/9-1.5xD
Interchangeable 7, 9 Flute Solid DCe8 Rd°
DCONMS
Carbide Endmill Heads 30° and 45°
Helix with 1.5xD Flute Lengths
LF FHA

Recommended
Dimensions
Machining Data


IC908
fz
Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA RMPX(2) (mm/t)
MM EC080H12R05CF-7T05 8.00 7 12.00 0.50 T05 7.70 18.00 36.0 3.0 • 0.03-0.10
MM EC100H15R05CF-7T06 10.00 7 15.00 0.50 T06 9.60 22.00 36.0 3.0 • 0.04-0.10
MM EC120H18R05CF-7T08 12.00 7 18.00 0.50 T08 11.70 27.00 36.0 3.0 • 0.04-0.10
MM EC160H24R08CF-9T10 16.00 9 24.00 0.80 T10 15.30 33.50 36.0 1.0 • 0.05-0.10
MM EC200H30R10CF-9T12 20.00 9 30.00 1.00 T12 18.45 41.00 36.0 1.0 • 0.05-0.10
MM EC250H37R10CF-9T15 25.00 9 37.00 1.00 T15 23.90 52.50 36.0 1.0 • 0.05-0.10
• Do not apply lubricant to the threaded connection. (1) Number of flutes (2) Ramping angle maximum


RE APMX THSZMS Rd°

MM EC-CF-Z4-1.5xD
Interchangeable Solid Carbide Endmill
DCe8 DCONMS
Heads with 1.5xD Flute Lengths for
Chatter Free Roughing and Finishing
LF FHA

Recommended
Dimensions
Machining Data


IC908
fz
Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t)
MM EC080H12R05CF-4T05 8.00 4 12.00 0.50 T05 7.70 18.00 46.5 • 0.03-0.09
MM EC100H15R05CF-4T06 10.00 4 15.00 0.50 T06 9.60 22.00 46.5 • 0.03-0.10
MM EC120H18R05CF-4T08 12.00 4 18.00 0.50 T08 11.70 27.00 46.5 • 0.04-0.11
MM EC160H24R05CF-4T10 16.00 4 24.00 0.50 T10 15.30 33.50 46.5 • 0.05-0.13
MM EC200H30R05CF-4T12 20.00 4 30.00 0.50 T12 18.45 41.00 46.5 • 0.05-0.17
MM EC250H37R05CF-4T15 25.00 4 37.00 0.50 T15 23.90 52.50 46.5 • 0.06-0.17
• Do not apply lubricant to the threaded connection. (1) Number of flutes


APMX THSZMS
CHW
MM ERS-1.5xD
Interchangeable Solid Carbide Rough
DCe9 DCONMS Rd°
Milling Heads with 1.5xD Flute Lengths
for High Metal Removal Rates
LF FHA

Recommended
Dimensions
Machining Data
IC908


fz
Designation DC NOF(1) APMX CHW THSZMS DCONMS LF FHA RMPX(2) (mm/t)
MM ERS080B12-4T05 8.00 4 12.00 0.25 T05 7.70 18.00 46.0 90.0 • 0.03-0.08
MM ERS100B15-4T06 10.00 4 15.00 0.30 T06 9.60 22.00 46.0 90.0 • 0.03-0.09
MM ERS120B18-4T08 12.00 4 18.00 0.35 T08 11.70 27.00 46.0 90.0 • 0.04-0.10
MM ERS160B24-5T10 16.00 5 24.00 0.40 T10 15.30 33.50 40.0 7.0 • 0.04-0.10
MM ERS200B30-6T12 20.00 6 30.00 0.40 T12 18.45 41.00 47.0 3.0 • 0.05-0.11
MM ERS250B37-6T15 25.00 6 37.00 0.50 T15 23.90 52.50 47.0 3.0 • 0.05-0.11
• Do not apply lubricant to the threaded connection. (1) Number of flutes (2) Ramping angle maximum


MACHINING INTELLIGENTLY
DUSTRY 4.0
92
