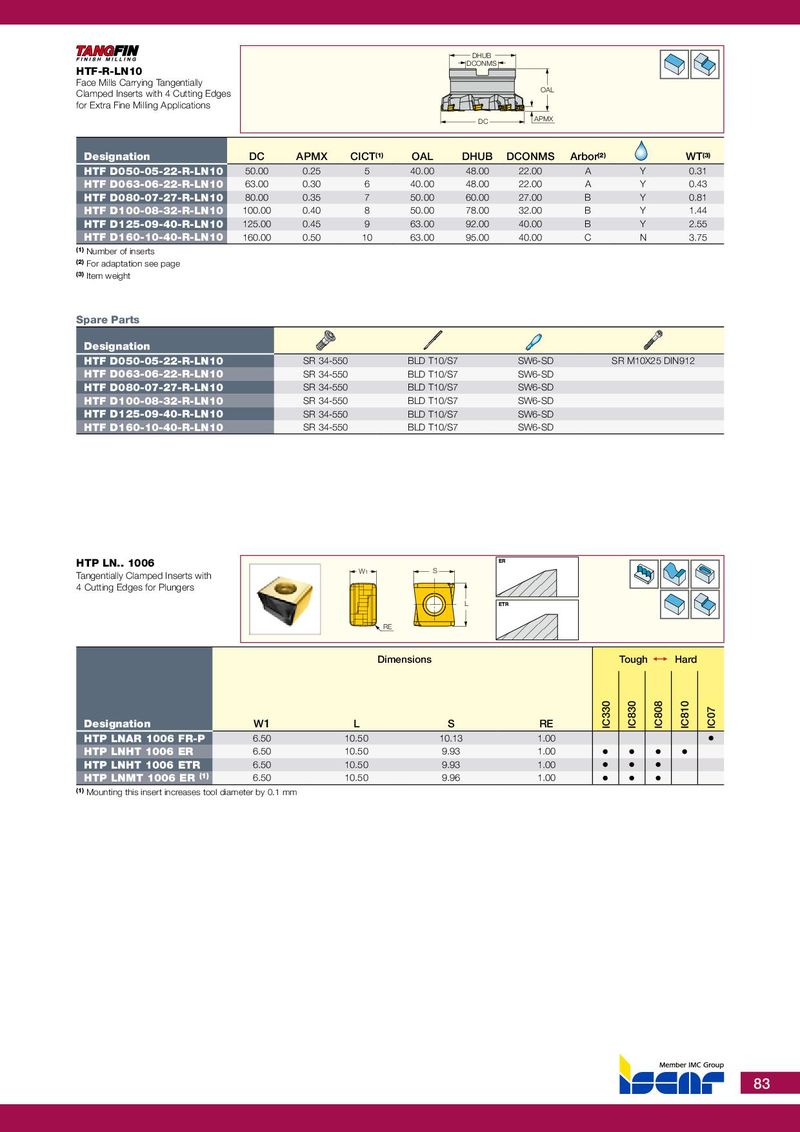

| TF-R-LN10 | DCONMS DHUB | ||||||||
| ce Mills Carrying Tangentially amped Inserts with 4 Cutting Edges r Extra Fine Milling Applications | DC | APMX OAL | |||||||
| Designation | DC | APMX | CICT(1) | OAL | DHUB | DCONMS | Arbor(2) | WT(3) | |
| HTF D050-05-22-R-LN10 | 50.00 | 0.25 | 5 | 40.00 | 48.00 | 22.00 | A | Y | 0.31 |
| HTF D063-06-22-R-LN10 | 63.00 | 0.30 | 6 | 40.00 | 48.00 | 22.00 | A | Y | 0.43 |
| HTF D080-07-27-R-LN10 | 80.00 | 0.35 | 7 | 50.00 | 60.00 | 27.00 | B | Y | 0.81 |
| HTF D100-08-32-R-LN10 | 100.00 | 0.40 | 8 | 50.00 | 78.00 | 32.00 | B | Y | 1.44 |
| HTF D125-09-40-R-LN10 | 125.00 | 0.45 | 9 | 63.00 | 92.00 | 40.00 | B | Y | 2.55 |
| HTF D160-10-40-R-LN10 | 160.00 | 0.50 | 10 | 63.00 | 95.00 | 40.00 | C | N | 3.75 |
(1) Number of inserts (2) For adaptation see page (3) Item weight
Spare Parts
| Designation | ||||
| HTF D050-05-22-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HTF D063-06-22-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | |
| HTF D080-07-27-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | |
| HTF D100-08-32-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | |
| HTF D125-09-40-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | |
| HTF D160-10-40-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD |
| TP LN.. 1006 ngentially Clamped Inserts with Cutting Edges for Plungers | W1 RE | L S | ETR ER | ||||||
| Dime | nsions | Tough | 1 | Hard | |||||
| Designation | W1 | L | S | RE | IC330 IC830 | IC808 | IC810 | IC07 | |
| HTP LNAR 1006 FR-P | 6.50 | 10.50 | 10.13 | 1.00 | • | ||||
| HTP LNHT 1006 ER | 6.50 | 10.50 | 9.93 | 1.00 | • • | • | • | ||
| HTP LNHT 1006 ETR | 6.50 | 10.50 | 9.93 | 1.00 | • • | • | |||
| HTP LNMT 1006 ER(1) | 6.50 | 10.50 | 9.96 | 1.00 | • • | • |
(1) Mounting this insert increases tool diameter by 0.1 mm
