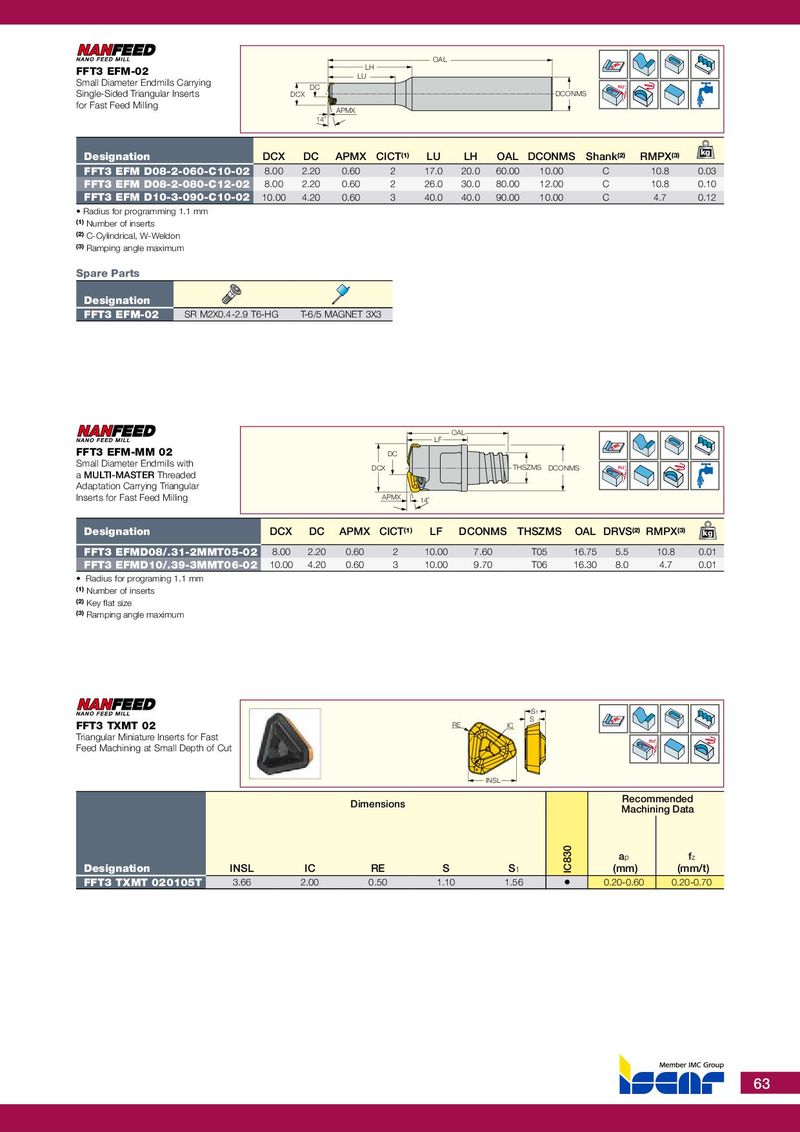

| FFT3 EFM-02 | L LU | H | OAL | ||||||||
| Small Diameter Endmills Carrying Single-Sided Triangular Inserts for Fast Feed Milling | DCX DC 14˚ | APMX | DCONMS | Rd° | |||||||
| Designation | DCX | DC | APMX | CICT(1) | LU | LH | OAL | DCONMS | Shank(2) | RMPX(3) | kg |
| FFT3 EFM D08-2-060-C10-02 | 8.00 | 2.20 | 0.60 | 2 | 17.0 | 20.0 | 60.00 | 10.00 | C | 10.8 | 0.03 |
| FFT3 EFM D08-2-080-C12-02 | 8.00 | 2.20 | 0.60 | 2 | 26.0 | 30.0 | 80.00 | 12.00 | C | 10.8 | 0.10 |
| FFT3 EFM D10-3-090-C10-02 | 10.00 | 4.20 | 0.60 | 3 | 40.0 | 40.0 | 90.00 | 10.00 | C | 4.7 | 0.12 |
- Radius for programming 1.1 mm
(1) Number of inserts (2) C-Cylindrical, W-Weldon (3) Ramping angle maximum
Spare Parts
Designation
FFT3 EFM-02 SR M2X0.4-2.9 T6-HG T-6/5 MAGNET 3X3
| O LF | AL | |||||||
| FFT3 EFM-MM 02 | DC | |||||||
| Small Diameter Endmills with aMULTI-MASTERThreaded Adaptation Carrying Triangular Inserts for Fast Feed Milling | DCX APMX 14˚ | T | HSZMS DCONMS Rd° | |||||
| Designation DCX | DC | APMX | CICT(1) LF | DCONMS | THSZMS OAL DRV | S(2) RM | PX(3) | kg |
| FFT3 EFMD08/.31-2MMT05-02 8.00 | 2.20 | 0.60 | 2 10.00 | 7.60 | T05 16.75 5.5 | 10.8 | 0.01 | |
| FFT3 EFMD10/.39-3MMT06-02 10.00 • Radius for programing 1.1 mm (1)Number of inserts (2)Key flat size (3)Ramping angle maximum | 4.20 | 0.60 | 3 10.00 | 9.70 | T06 16.30 8.0 | 4.7 | 0.01 | |
| FFT3 TXMT 02 | R | E IC | S1 S | |||||
| Triangular Miniature Inserts for Fast Feed Machining at Small Depth of Cut | INSL | Rd° | ||||||
| Dime | nsions | R M | ecom achini | mended ng Data | ||||
| Designation INSL | IC | RE S | S | 1 IC830 ap (m | m) | f (m | z m/t) | |
| FFT3 TXMT 020105T 3.66 | 2.00 | 0 | .50 1.10 | 1.5 | 6 • 0.20- | 0.60 | 0.20- | 0.70 |
