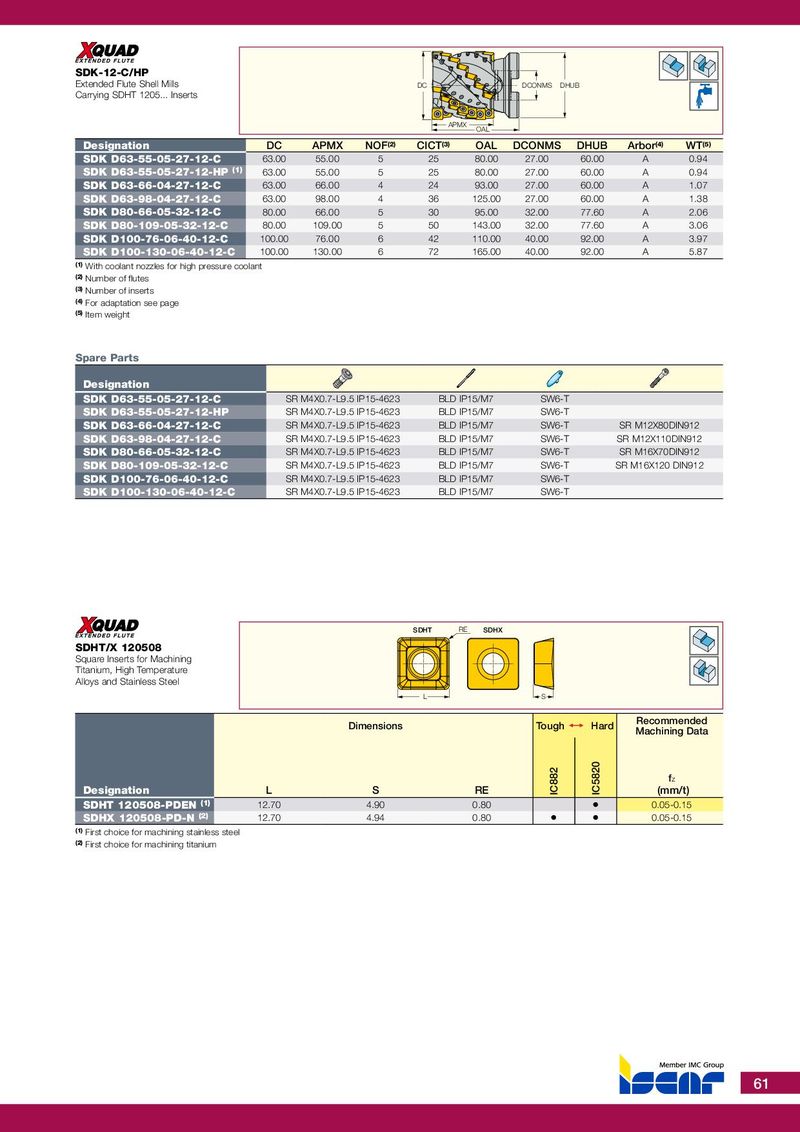

| SDK-12-C/HP Extended Flute Shell Mills Carrying SDHT 1205... Inserts | APM DC | OAL X | DCONMS | DHUB | |||||
| Designation | DC | APMX | NOF(2) | CICT(3) | OAL | DCONMS | DHUB | Arbor( | 4) WT(5) |
| SDK D63-55-05-27-12-C | 63.00 | 55.00 | 5 | 25 | 80.00 | 27.00 | 60.00 | A | 0.94 |
| SDK D63-55-05-27-12-HP(1) | 63.00 | 55.00 | 5 | 25 | 80.00 | 27.00 | 60.00 | A | 0.94 |
| SDK D63-66-04-27-12-C | 63.00 | 66.00 | 4 | 24 | 93.00 | 27.00 | 60.00 | A | 1.07 |
| SDK D63-98-04-27-12-C | 63.00 | 98.00 | 4 | 36 | 125.00 | 27.00 | 60.00 | A | 1.38 |
| SDK D80-66-05-32-12-C | 80.00 | 66.00 | 5 | 30 | 95.00 | 32.00 | 77.60 | A | 2.06 |
| SDK D80-109-05-32-12-C | 80.00 | 109.00 | 5 | 50 | 143.00 | 32.00 | 77.60 | A | 3.06 |
| SDK D100-76-06-40-12-C | 100.00 | 76.00 | 6 | 42 | 110.00 | 40.00 | 92.00 | A | 3.97 |
| SDK D100-130-06-40-12-C | 100.00 | 130.00 | 6 | 72 | 165.00 | 40.00 | 92.00 | A | 5.87 |
(1) With coolant nozzles for high pressure coolant (2) Number of flutes (3) Number of inserts (4) For adaptation see page (5) Item weight
Spare Parts
| Designation | ||||
| SDK D63-55-05-27-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | |
| SDK D63-55-05-27-12-HP | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | |
| SDK D63-66-04-27-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | SR M12X80DIN912 |
| SDK D63-98-04-27-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | SR M12X110DIN912 |
| SDK D80-66-05-32-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | SR M16X70DIN912 |
| SDK D80-109-05-32-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | SR M16X120 DIN912 |
| SDK D100-76-06-40-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T | |
| SDK D100-130-06-40-12-C | SR M4X0.7-L9.5 IP15-4623 | BLD IP15/M7 | SW6-T |
SDHT/X 120508
Square Inserts for Machining Titanium, High Temperature Alloys and Stainless Steel
SDHT RE SDHX
L S Dimensions Tough 1 Hard
Recommended Machining Data
fz
| Designation | L | S | RE | (mm/t) | ||
| SDHT 120508-PDEN (1) | 12.70 | 4.90 | 0.80 | • | 0.05-0.15 | |
| SDHX 120508-PD-N (2) | 12.70 | 4.94 | 0.80 | • | • | 0.05-0.15 |
(1) First choice for machining stainless steel (2) First choice for machining titanium
