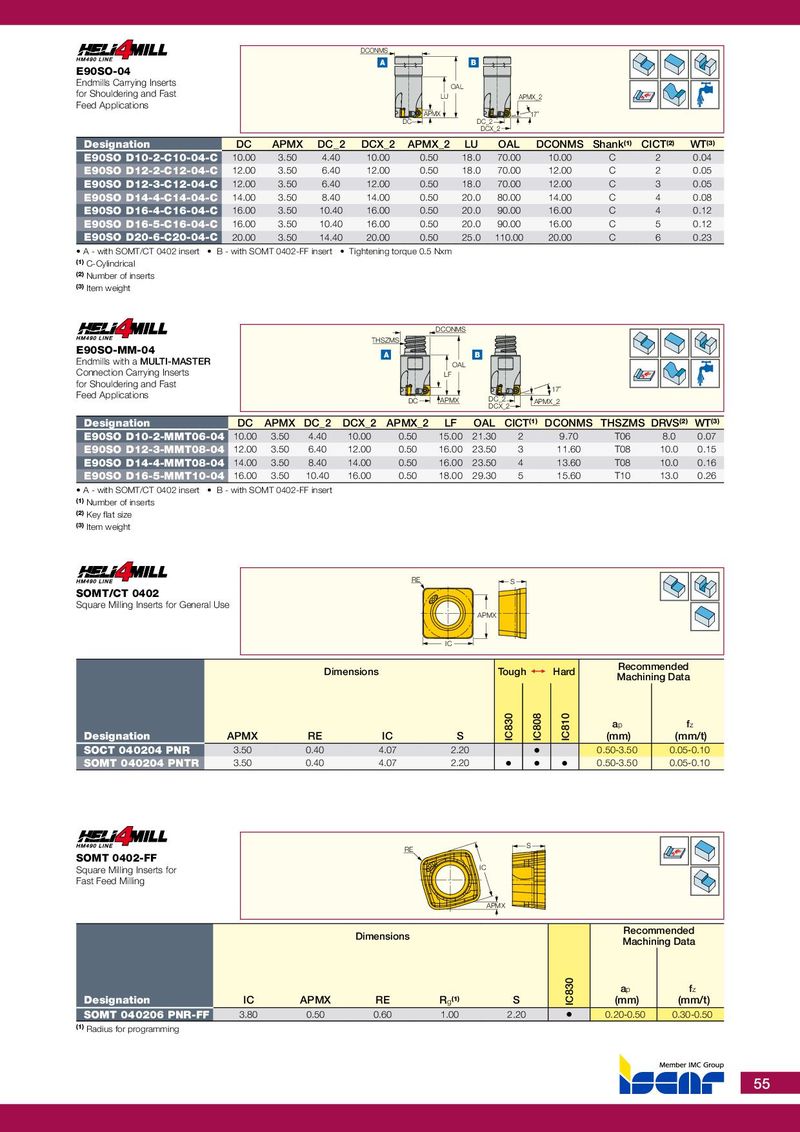

| E90SO-04 | DCONMS A | B | ||||||||||
| Endmills Carrying Inserts for Shouldering and Fast Feed Applications | LU APMX DC | OAL DC D | 2 CX2 A | 1 PMX | 7˚ 2 | |||||||
| Designation | DC | APMX | DC2 | DCX2 | APMX2 | LU | OAL | DCONMS | Shank( | 1) CICT | (2) WT(3) | |
| E90SO D10-2-C10-04-C | 10.00 | 3.50 | 4.40 | 10.00 | 0.50 | 18.0 | 70.00 | 10.00 | C | 2 | 0.04 | |
| E90SO D12-2-C12-04-C | 12.00 | 3.50 | 6.40 | 12.00 | 0.50 | 18.0 | 70.00 | 12.00 | C | 2 | 0.05 | |
| E90SO D12-3-C12-04-C | 12.00 | 3.50 | 6.40 | 12.00 | 0.50 | 18.0 | 70.00 | 12.00 | C | 3 | 0.05 | |
| E90SO D14-4-C14-04-C | 14.00 | 3.50 | 8.40 | 14.00 | 0.50 | 20.0 | 80.00 | 14.00 | C | 4 | 0.08 | |
| E90SO D16-4-C16-04-C | 16.00 | 3.50 | 10.40 | 16.00 | 0.50 | 20.0 | 90.00 | 16.00 | C | 4 | 0.12 | |
| E90SO D16-5-C16-04-C | 16.00 | 3.50 | 10.40 | 16.00 | 0.50 | 20.0 | 90.00 | 16.00 | C | 5 | 0.12 | |
| E90SO D20-6-C20-04-C | 20.00 | 3.50 | 14.40 | 20.00 | 0.50 | 25.0 | 110.00 | 20.00 | C | 6 | 0.23 |
- A - with SOMT/CT 0402 insert
- B - with SOMT 0402-FF insert
- Tightening torque 0.5 Nxm
(1) C-Cylindrical (2) Number of inserts (3) Item weight
| E90SO-MM-04 | T | HSZMS A | DCONMS | B | ||||||||
| Endmills with aMULTI-MASTER Connection Carrying Inserts for Shouldering and Fast Feed Applications | DC | OAL LF APMX | DC DC | X2 2 | APMX2 17˚ | |||||||
| Designation | DC | APMX | DC2 | DCX2 | APMX2 | LF | OAL | CIC | T(1) DCONMS | THSZMS D | RVS(2) | WT(3) |
| E90SO D10-2-MMT06-04 | 10.00 | 3.50 | 4.40 | 10.00 | 0.50 | 15.00 | 21.30 | 2 | 9.70 | T06 | 8.0 | 0.07 |
| E90SO D12-3-MMT08-04 | 12.00 | 3.50 | 6.40 | 12.00 | 0.50 | 16.00 | 23.50 | 3 | 11.60 | T08 | 10.0 | 0.15 |
| E90SO D14-4-MMT08-04 | 14.00 | 3.50 | 8.40 | 14.00 | 0.50 | 16.00 | 23.50 | 4 | 13.60 | T08 | 10.0 | 0.16 |
| E90SO D16-5-MMT10-04 | 16.00 | 3.50 | 10.40 | 16.00 | 0.50 | 18.00 | 29.30 | 5 | 15.60 | T10 | 13.0 | 0.26 |
- A - with SOMT/CT 0402 insert
- B - with SOMT 0402-FF insert
(1) Number of inserts (2) Key flat size (3) Item weight
SOMT/CT 0402
Square Milling Inserts for General Use
Dimensions
RE
IC
S
APMX
Tough 1 Hard
Recommended Machining Data
ap fz
| Designation | APMX | RE | IC | S | (mm) | (mm/t) | |||
| SOCT 040204 PNR | 3.50 | 0.40 | 4.07 | 2.20 | • | 0.50-3.50 | 0.05-0.10 | ||
| SOMT 040204 PNTR | 3.50 | 0.40 | 4.07 | 2.20 | • | • | • | 0.50-3.50 | 0.05-0.10 |
SOMT 0402-FF
Square Milling Inserts for Fast Feed Milling
RE
Dimensions
IC
APMX
S
Recommended Machining Data
a p fz
| Designation | IC | APMX | RE | Rg(1) | S | (mm) | (mm/t) | |
| SOMT 040206 PNR-FF | 3.80 | 0.50 | 0.60 | 1.00 | 2.20 | • | 0.20-0.50 | 0.30-0.50 |
(1) Radius for programming
