CNT

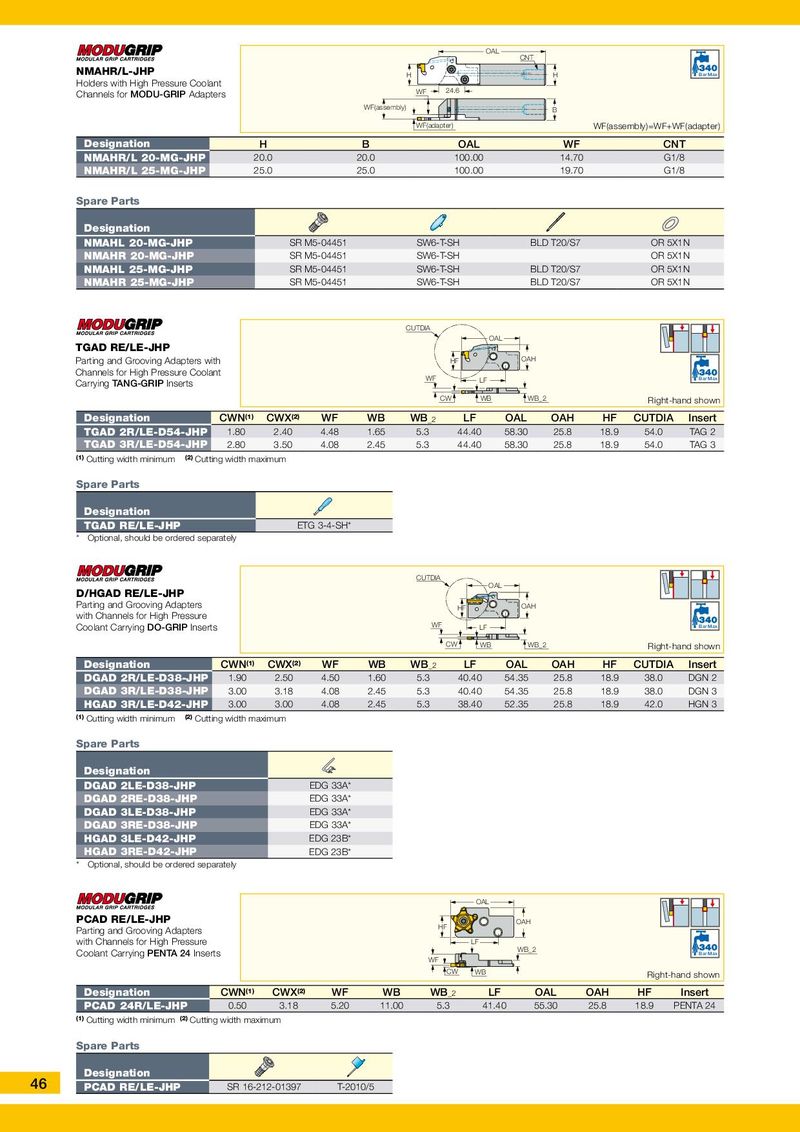

NMAHR/L-JHP
| H | H | Bar Max | |
| Holders with High Pressure Coolant |
| Channels for MODU-GRIP Adapters | WF | 24.6 | |||
| WF(assembly) | B | ||||
| WF(adapter) | WF(assembly)=WF+WF(adapter) |
| Designation | H | B | OAL | WF | CNT |
| NMAHR/L 20-MG-JHP | 20.0 | 20.0 | 100.00 | 14.70 | G1/8 |
| NMAHR/L 25-MG-JHP | 25.0 | 25.0 | 100.00 | 19.70 | G1/8 |
| Spare Parts | |||||
| Designation |
| NMAHL 20-MG-JHP | SR M5-04451 | SW6-T-SH | BLD T20/S7 | OR 5X1N |
| NMAHR 20-MG-JHP | SR M5-04451 | SW6-T-SH | OR 5X1N | |
| NMAHL 25-MG-JHP | SR M5-04451 | SW6-T-SH | BLD T20/S7 | OR 5X1N |
| NMAHR 25-MG-JHP | SR M5-04451 | SW6-T-SH | BLD T20/S7 | OR 5X1N |
CUTDIA OAL
TGAD RE/LE-JHP
| Parting and Grooving Adapters with | HF | OAH |
| Channels for High Pressure Coolant |
Carrying TANG-GRIP Inserts WF LF Bar Max
CW WB WB_2 Right-hand shown
| Designation | CWN(1) | CWX(2) | WF | WB | WB_2 | LF | OAL | OAH | HF | CUTDIA | Insert |
| TGAD 2R/LE-D54-JHP | 1.80 | 2.40 | 4.48 | 1.65 | 5.3 | 44.40 | 58.30 | 25.8 | 18.9 | 54.0 | TAG 2 |
| TGAD 3R/LE-D54-JHP | 2.80 | 3.50 | 4.08 | 2.45 | 5.3 | 44.40 | 58.30 | 25.8 | 18.9 | 54.0 | TAG 3 |
(1) Cutting width minimum (2) Cutting width maximum Spare Parts Designation TGAD RE/LE-JHP ETG 3-4-SH*
- Optional, should be ordered separately
CUTDIA OAL
D/HGAD RE/LE-JHP
Parting and Grooving Adapters OAH HF with Channels for High Pressure
Coolant Carrying DO-GRIP Inserts WF LF Bar Max
CW WB WB_2 Right-hand shown
| Designation | CWN(1) | CWX(2) | WF | WB | WB_2 | LF | OAL | OAH | HF | CUTDIA | Insert | |
| DGAD 2R/LE-D38-JHP | 1.90 | 2.50 | 4.50 | 1.60 | 5.3 | 40.40 | 54.35 | 25.8 | 18.9 | 38.0 | DGN 2 | |
| DGAD 3R/LE-D38-JHP | 3.00 | 3.18 | 4.08 | 2.45 | 5.3 | 40.40 | 54.35 | 25.8 | 18.9 | 38.0 | DGN 3 | |
| HGAD 3R/LE-D42-JHP | 3.00 | 3.00 | 4.08 | 2.45 | 5.3 | 38.40 | 52.35 | 25.8 | 18.9 | 42.0 | HGN 3 | |
| (1) Cutting width minimum (2) Cutting width maximum | ||||||||||||
| Spare Parts | ||||||||||||
| Designation | ||||||||||||
| DGAD 2LE-D38-JHP | EDG 33A* | |||||||||||
| DGAD 2RE-D38-JHP | EDG 33A* | |||||||||||
| DGAD 3LE-D38-JHP | EDG 33A* | |||||||||||
| DGAD 3RE-D38-JHP | EDG 33A* | |||||||||||
| HGAD 3LE-D42-JHP | EDG 23B* | |||||||||||
| HGAD 3RE-D42-JHP | EDG 23B* |
- Optional, should be ordered separately
OAL
PCAD RE/LE-JHP
OAH Parting and Grooving Adapters HF with Channels for High Pressure LF Coolant Carrying PENTA 24 Inserts WB_2 Bar Max WF
CW WB Right-hand shown
| Designation | CWN(1) | CWX(2) | WF | WB | WB_2 | LF | OAL | OAH | HF | Insert |
| PCAD 24R/LE-JHP | 0.50 | 3.18 | 5.20 | 11.00 | 5.3 | 41.40 | 55.30 | 25.8 | 18.9 | PENTA 24 |
| (1) Cutting width minimum (2) Cutting width maximum | ||||||||||
| Spare Parts | ||||||||||
| Designation | ||||||||||
| PCAD RE/LE-JHP | SR 16-212-01397 | T-2010/5 |
