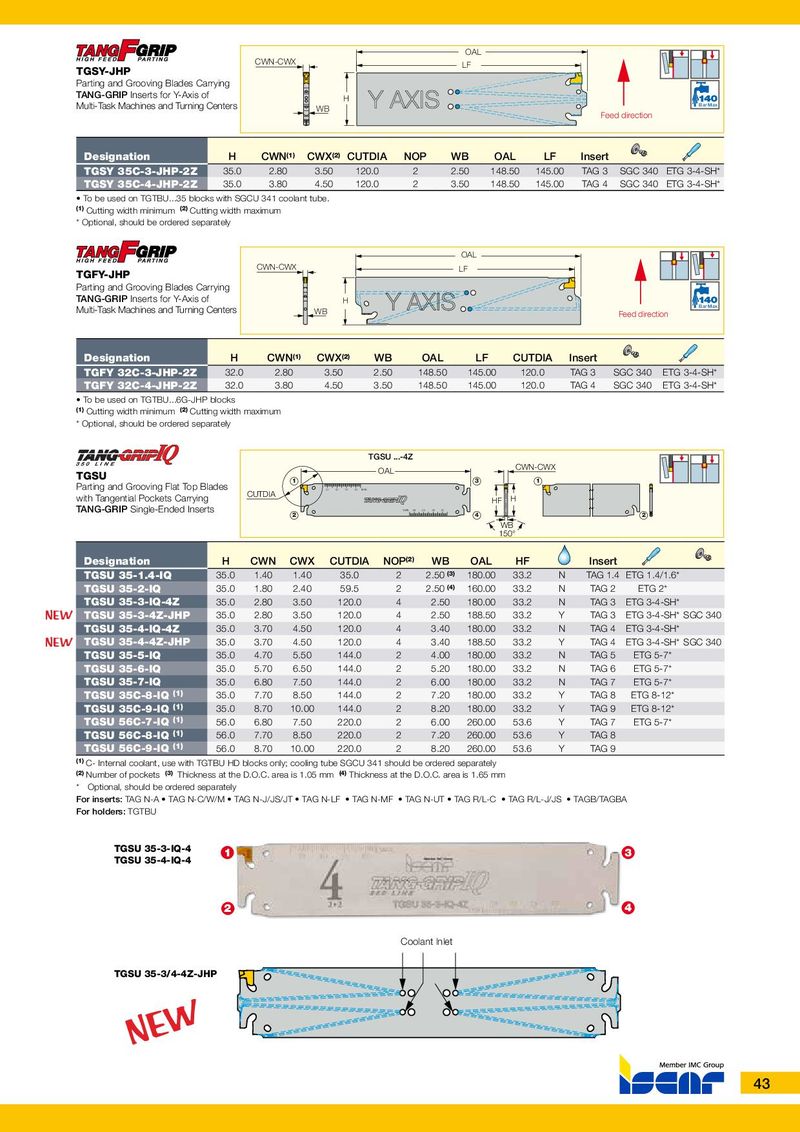

| TGSY-JHP | CWN-CWX | LF OAL | |||||||||
| Parting and Grooving Blades Carr TANG-GRIPInserts for Y-Axis of Multi-Task Machines and Turning C | ying enters | H WB | Fee | d direction | Bar Max | ||||||
| Designation | H | CWN(1) | CWX(2) | CUTDIA | NOP | WB | OAL | LF | Insert | ||
| TGSY 35C-3-JHP-2Z | 35.0 | 2.80 | 3.50 | 120.0 | 2 | 2.50 | 148.50 | 145.00 | TAG 3 | SGC 340 | ETG 3-4-SH |
| TGSY 35C-4-JHP-2Z | 35.0 | 3.80 | 4.50 | 120.0 | 2 | 3.50 | 148.50 | 145.00 | TAG 4 | SGC 340 | ETG 3-4-SH |
- To be used on TGTBU...35 blocks with SGCU 341 coolant tube.
(1) Cutting width minimum (2) Cutting width maximum
- Optional, should be ordered separately
| TGFY-JHP | CWN-CWX | LF OAL | ||||||||
| Parting and Grooving Blades Carr TANG-GRIPInserts for Y-Axis of Multi-Task Machines and Turning C | ying enters | H WB | Feed direc | tion Bar Max | ||||||
| Designation | H | CWN(1) | CWX(2) | WB | OAL | LF | CUTDIA | Insert | ||
| TGFY 32C-3-JHP-2Z | 32.0 | 2.80 | 3.50 | 2.50 | 148.50 | 145.00 | 120.0 | TAG 3 | SGC 340 | ETG 3-4-SH |
| TGFY 32C-4-JHP-2Z | 32.0 | 3.80 | 4.50 | 3.50 | 148.50 | 145.00 | 120.0 | TAG 4 | SGC 340 | ETG 3-4-SH |
- To be used on TGTBU...6G-JHP blocks
(1) Cutting width minimum (2) Cutting width maximum
- Optional, should be ordered separately
| TGSU | 1 | T | OAL GSU ...-4Z | 3 | CWN- | CWX 1 | ||||||
| Parting and Grooving Flat Top Bla with Tangential Pockets Carrying TANG-GRIPSingle-Ended Inserts | des | CUTDIA | 2 | 30 40 50 60 MAX. | 60 MAX. | 30 40 50 | W 1 HF 4 | B 50° H | 2 | |||
| Designation | H | CWN | CWX | CUTDIA | NOP(2) | WB | OAL | HF | Insert | |||
| TGSU 35-1.4-IQ | 35.0 | 1.40 | 1.40 | 35.0 | 2 | 2.50(3) | 180.00 | 33.2 | N | TAG 1.4 | ETG 1.4/1.6 | |
| TGSU 35-2-IQ | 35.0 | 1.80 | 2.40 | 59.5 | 2 | 2.50(4) | 160.00 | 33.2 | N | TAG 2 | ETG 2 | |
| TGSU 35-3-IQ-4Z | 35.0 | 2.80 | 3.50 | 120.0 | 4 | 2.50 | 180.00 | 33.2 | N | TAG 3 | ETG 3-4-SH | |
| TGSU 35-3-4Z-JHP | 35.0 | 2.80 | 3.50 | 120.0 | 4 | 2.50 | 188.50 | 33.2 | Y | TAG 3 | ETG 3-4-SH | SGC 340 |
| TGSU 35-4-IQ-4Z | 35.0 | 3.70 | 4.50 | 120.0 | 4 | 3.40 | 180.00 | 33.2 | N | TAG 4 | ETG 3-4-SH | |
| TGSU 35-4-4Z-JHP | 35.0 | 3.70 | 4.50 | 120.0 | 4 | 3.40 | 188.50 | 33.2 | Y | TAG 4 | ETG 3-4-SH | SGC 340 |
| TGSU 35-5-IQ | 35.0 | 4.70 | 5.50 | 144.0 | 2 | 4.00 | 180.00 | 33.2 | N | TAG 5 | ETG 5-7 | |
| TGSU 35-6-IQ | 35.0 | 5.70 | 6.50 | 144.0 | 2 | 5.20 | 180.00 | 33.2 | N | TAG 6 | ETG 5-7 | |
| TGSU 35-7-IQ | 35.0 | 6.80 | 7.50 | 144.0 | 2 | 6.00 | 180.00 | 33.2 | N | TAG 7 | ETG 5-7 | |
| TGSU 35C-8-IQ(1) | 35.0 | 7.70 | 8.50 | 144.0 | 2 | 7.20 | 180.00 | 33.2 | Y | TAG 8 | ETG 8-12 | |
| TGSU 35C-9-IQ(1) | 35.0 | 8.70 | 10.00 | 144.0 | 2 | 8.20 | 180.00 | 33.2 | Y | TAG 9 | ETG 8-12 | |
| TGSU 56C-7-IQ(1) | 56.0 | 6.80 | 7.50 | 220.0 | 2 | 6.00 | 260.00 | 53.6 | Y | TAG 7 | ETG 5-7 | |
| TGSU 56C-8-IQ(1) | 56.0 | 7.70 | 8.50 | 220.0 | 2 | 7.20 | 260.00 | 53.6 | Y | TAG 8 | ||
| TGSU 56C-9-IQ (1) | 56.0 | 8.70 | 10.00 | 220.0 | 2 | 8.20 | 260.00 | 53.6 | Y | TAG 9 |
(1) C- Internal coolant, use with TGTBU HD blocks only; cooling tube SGCU 341 should be ordered separately (2) Number of pockets (3) Thickness at the D.O.C. area is 1.05 mm (4) Thickness at the D.O.C. area is 1.65 mm
- Optional, should be ordered separately
For inserts: TAG N-A TAG N-C/W/M TAG N-J/JS/JT TAG N-LF TAG N-MF TAG N-UT TAG R/L-C TAG R/L-J/JS TAGB/TAGBA For holders: TGTBU
TGSU 35-3-IQ-4 1 3
TGSU 35-4-IQ-4
2 4
Coolant lnlet
TGSU 35-3/4-4Z-JHP
