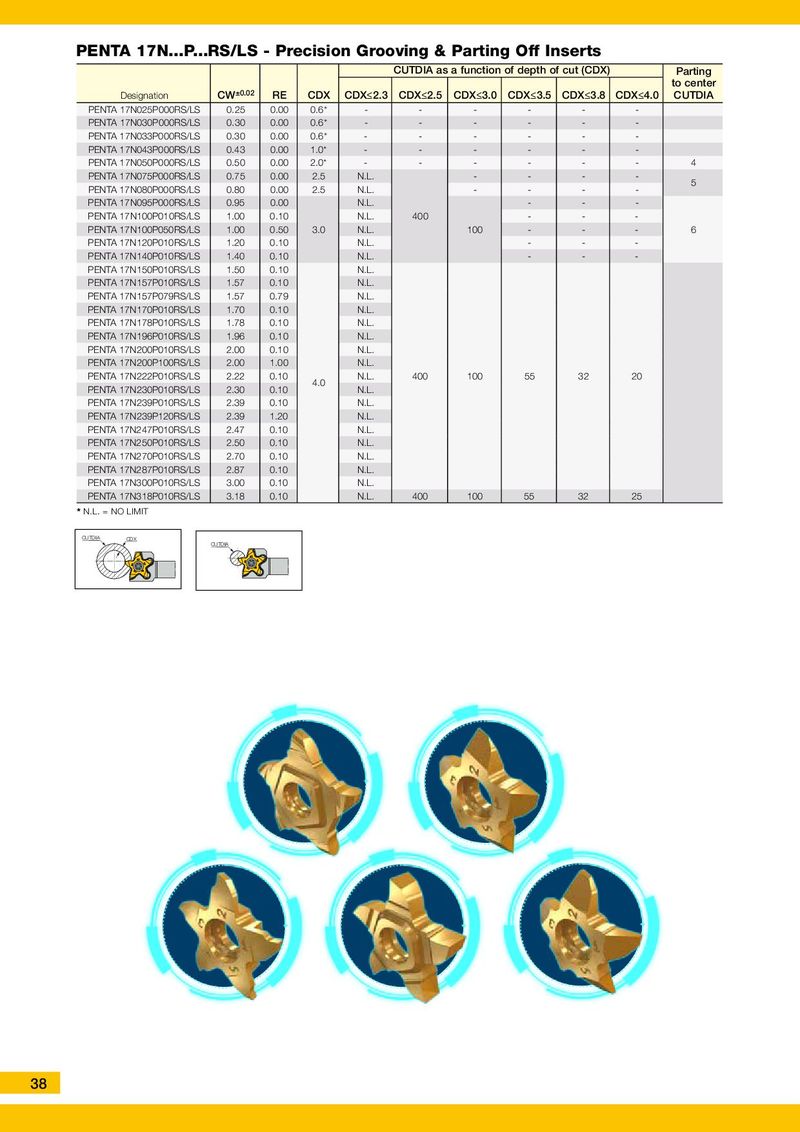

PENTA 17N...P...RS/LS - Precision Grooving & Parting Off Inserts
| CUTDIA as | a function | of depth o | f cut(CDX) | Parting | ||||||
| to center | ||||||||||
| Designation | CW±0.02 | RE | CDX | CDX≤2.3 | CDX≤2.5 | CDX≤3.0 | CDX≤3.5 | CDX≤3.8 | CDX≤4.0 | CUTDIA |
| PENTA 17N025P000RS/LS | 0.25 | 0.00 | 0.6 | - | - | - | - | - | - | |
| PENTA 17N030P000RS/LS | 0.30 | 0.00 | 0.6 | - | - | - | - | - | - | |
| PENTA 17N033P000RS/LS | 0.30 | 0.00 | 0.6 | - | - | - | - | - | - | |
| PENTA 17N043P000RS/LS | 0.43 | 0.00 | 1.0 | - | - | - | - | - | - | |
| PENTA 17N050P000RS/LS | 0.50 | 0.00 | 2.0 | - | - | - | - | - | - | 4 |
| PENTA 17N075P000RS/LS | 0.75 | 0.00 | 2.5 | N.L. | - | - | - | - | 5 | |
| PENTA 17N080P000RS/LS | 0.80 | 0.00 | 2.5 | N.L. | - | - | - | - | ||
| PENTA 17N095P000RS/LS | 0.95 | 0.00 | N.L. | - | - | - | ||||
| PENTA 17N100P010RS/LS | 1.00 | 0.10 | N.L. | 400 | - | - | - | |||
| PENTA 17N100P050RS/LS | 1.00 | 0.50 | 3.0 | N.L. | 100 | - | - | - | 6 | |
| PENTA 17N120P010RS/LS | 1.20 | 0.10 | N.L. | - | - | - | ||||
| PENTA 17N140P010RS/LS | 1.40 | 0.10 | N.L. | - | - | - | ||||
| PENTA 17N150P010RS/LS | 1.50 | 0.10 | N.L. | |||||||
| PENTA 17N157P010RS/LS | 1.57 | 0.10 | N.L. | |||||||
| PENTA 17N157P079RS/LS | 1.57 | 0.79 | N.L. | |||||||
| PENTA 17N170P010RS/LS | 1.70 | 0.10 | N.L. | |||||||
| PENTA 17N178P010RS/LS | 1.78 | 0.10 | N.L. | |||||||
| PENTA 17N196P010RS/LS | 1.96 | 0.10 | N.L. | |||||||
| PENTA 17N200P010RS/LS | 2.00 | 0.10 | N.L. | |||||||
| PENTA 17N200P100RS/LS | 2.00 | 1.00 | N.L. | |||||||
| PENTA 17N222P010RS/LS | 2.22 | 0.10 | 40 | N.L. | 400 | 100 | 55 | 32 | 20 | |
| PENTA 17N230P010RS/LS | 2.30 | 0.10 | . | N.L. | ||||||
| PENTA 17N239P010RS/LS | 2.39 | 0.10 | N.L. | |||||||
| PENTA 17N239P120RS/LS | 2.39 | 1.20 | N.L. | |||||||
| PENTA 17N247P010RS/LS | 2.47 | 0.10 | N.L. | |||||||
| PENTA 17N250P010RS/LS | 2.50 | 0.10 | N.L. | |||||||
| PENTA 17N270P010RS/LS | 2.70 | 0.10 | N.L. | |||||||
| PENTA 17N287P010RS/LS | 2.87 | 0.10 | N.L. | |||||||
| PENTA 17N300P010RS/LS | 3.00 | 0.10 | N.L. | |||||||
| PENTA 17N318P010RS/LS | 3.18 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 25 |
* N.L. = NO LIMIT
CUTDIA CDX CUTDIA
