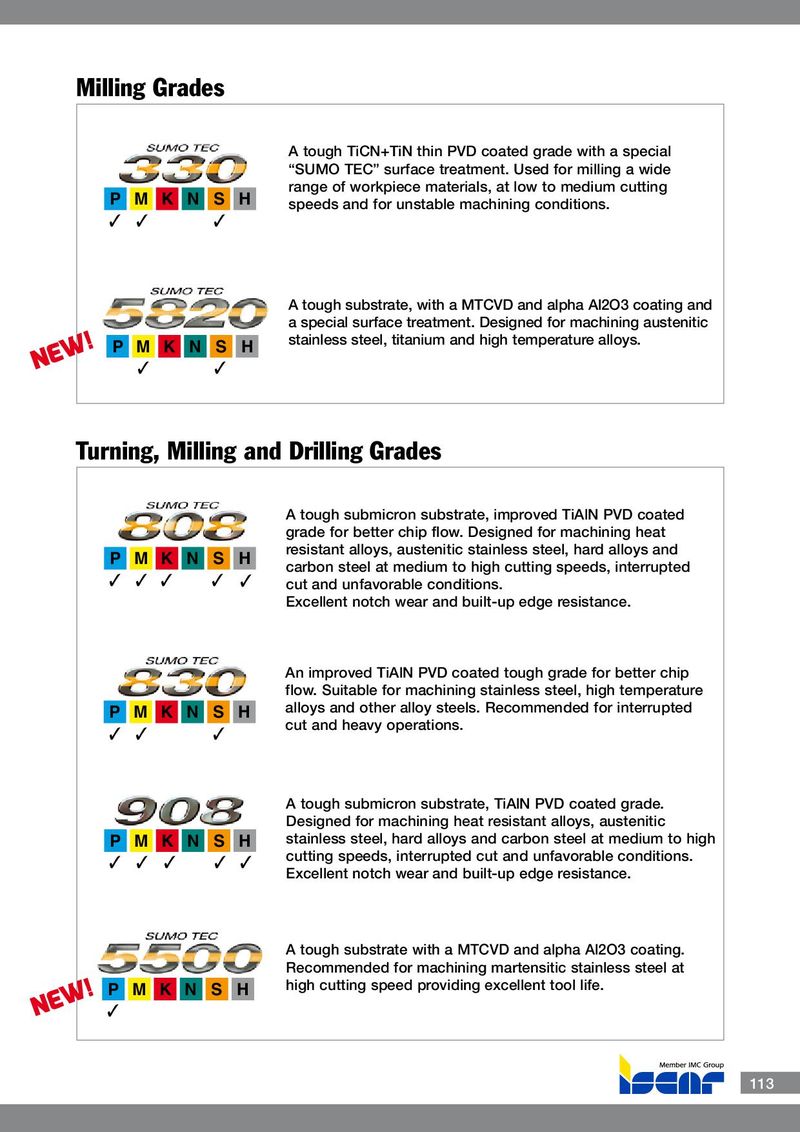

Milling Grades

PMKNSH 3 3 3

A tough TiCN+TiN thin PVD coated grade with a special “SUMO TEC” surface treatment. Used for milling a wide range of workpiece materials, at low to medium cutting speeds and for unstable machining conditions.

A tough substrate, with a MTCVD and alpha Al2O3 coating and a special surface treatment. Designed for machining austenitic

NEW! PMKNSH stainless steel, titanium and high temperature alloys.

3 3

Turning, Milling and Drilling Grades

A tough submicron substrate, improved TiAlN PVD coated grade for better chip flow. Designed for machining heat PMKNSH resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted

3 3 3 3 3 cut and unfavorable conditions.

Excellent notch wear and built-up edge resistance.

An improved TiAlN PVD coated tough grade for better chip flow. Suitable for machining stainless steel, high temperature PMKNSH alloys and other alloy steels. Recommended for interrupted cut and heavy operations. 3 3 3

A tough submicron substrate, TiAlN PVD coated grade. Designed for machining heat resistant alloys, austenitic PMKNSH stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavorable conditions. 3 3 3 3 3 Excellent notch wear and built-up edge resistance.

PMKNSH

NEW!

3

A tough substrate with a MTCVD and alpha Al2O3 coating. Recommended for machining martensitic stainless steel at high cutting speed providing excellent tool life.
