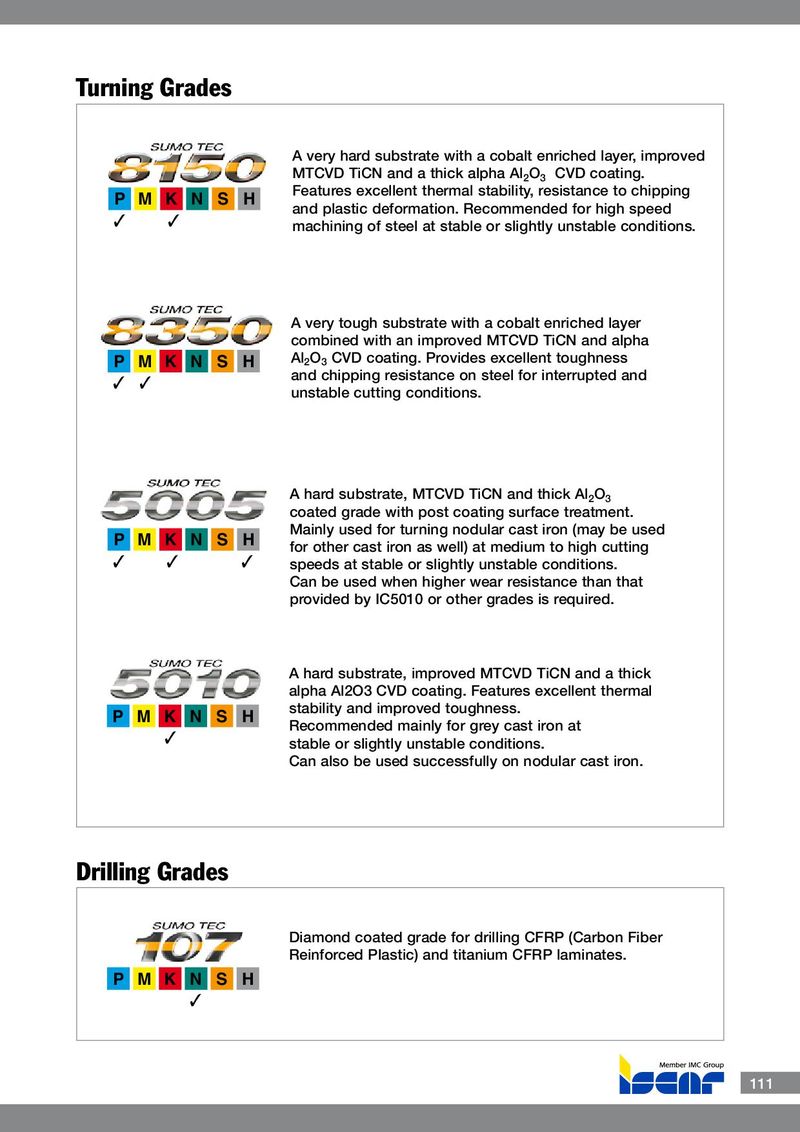

Turning Grades

A very hard substrate with a cobalt enriched layer, improved MTCVD TiCN and a thick alpha Al O CVD coating. 2 3 PMKNSH Features excellent thermal stability, resistance to chipping and plastic deformation. Recommended for high speed

3 3 machining of steel at stable or slightly unstable conditions.

A very tough substrate with a cobalt enriched layer combined with an improved MTCVD TiCN and alpha PMKNSH Al O CVD coating. Provides excellent toughness 2 3 and chipping resistance on steel for interrupted and 3 3 unstable cutting conditions.

A hard substrate, MTCVD TiCN and thick Al O 2 3 coated grade with post coating surface treatment. Mainly used for turning nodular cast iron (may be used PMKNSH for other cast iron as well) at medium to high cutting

3 3 3 speeds at stable or slightly unstable conditions.

Can be used when higher wear resistance than that provided by IC5010 or other grades is required.

A hard substrate, improved MTCVD TiCN and a thick alpha Al2O3 CVD coating. Features excellent thermal PMKNSH stability and improved toughness. Recommended mainly for grey cast iron at 3 stable or slightly unstable conditions. Can also be used successfully on nodular cast iron.

Drilling Grades

PMKNSH 3

Diamond coated grade for drilling CFRP (Carbon Fiber Reinforced Plastic) and titanium CFRP laminates.
