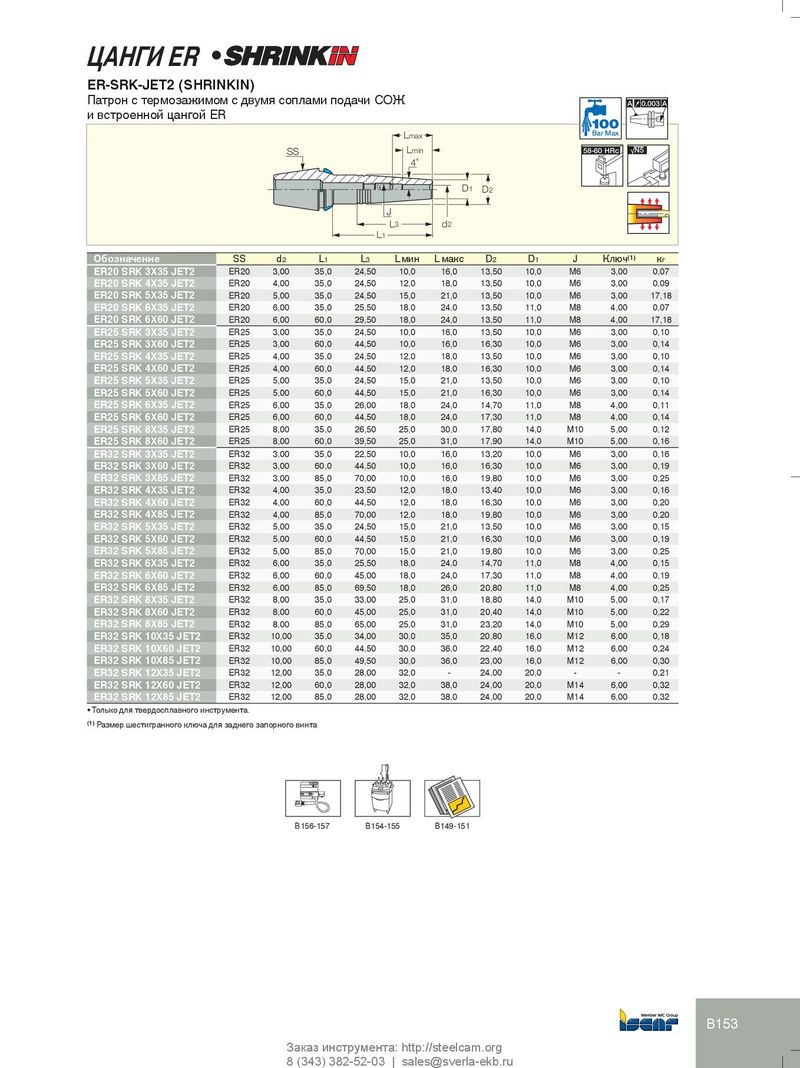

ER-SRK-JET2 (SHRINKIN)
Патрон с термозажимом с двумя соплами подачи СОЖ
| атрон с термозажим | мсдву | мя соп | ами по | дачи | A | A 0.003 | ||||||
| встроенной цангой | R | Lmax | Bar Max | |||||||||
| SS | 4˚ Lmin | 58 | -60 HRc | √ | N5 | |||||||
| D1 | D2 | |||||||||||
| L3 J | d2 | |||||||||||
| L1 | ||||||||||||
| Обозначение | SS | d2 | L1 | L3 | L мин | L макс | D2 | D1 | J | Ключ | (1) | кг |
| ER20 SRK 3X35 JET2 | ER20 | 3,00 | 35,0 | 24,50 | 10,0 | 16,0 | 13,50 | 10,0 | M6 | 3,00 | 0,07 | |
| ER20 SRK 4X35 JET2 | ER20 | 4,00 | 35,0 | 24,50 | 12,0 | 18,0 | 13,50 | 10,0 | M6 | 3,00 | 0,09 | |
| ER20 SRK 5X35 JET2 | ER20 | 5,00 | 35,0 | 24,50 | 15,0 | 21,0 | 13,50 | 10,0 | M6 | 3,00 | 17,18 | |
| ER20 SRK 6X35 JET2 | ER20 | 6,00 | 35,0 | 25,50 | 18,0 | 24,0 | 13,50 | 11,0 | M8 | 4,00 | 0,07 | |
| ER20 SRK 6X60 JET2 | ER20 | 6,00 | 60,0 | 29,50 | 18,0 | 24,0 | 13,50 | 11,0 | M8 | 4,00 | 17,18 | |
| ER25 SRK 3X35 JET2 | ER25 | 3,00 | 35,0 | 24,50 | 10,0 | 16,0 | 13,50 | 10,0 | M6 | 3,00 | 0,10 | |
| ER25 SRK 3X60 JET2 | ER25 | 3,00 | 60,0 | 44,50 | 10,0 | 16,0 | 16,30 | 10,0 | M6 | 3,00 | 0,14 | |
| ER25 SRK 4X35 JET2 | ER25 | 4,00 | 35,0 | 24,50 | 12,0 | 18,0 | 13,50 | 10,0 | M6 | 3,00 | 0,10 | |
| ER25 SRK 4X60 JET2 | ER25 | 4,00 | 60,0 | 44,50 | 12,0 | 18,0 | 16,30 | 10,0 | M6 | 3,00 | 0,14 | |
| ER25 SRK 5X35 JET2 | ER25 | 5,00 | 35,0 | 24,50 | 15,0 | 21,0 | 13,50 | 10,0 | M6 | 3,00 | 0,10 | |
| ER25 SRK 5X60 JET2 | ER25 | 5,00 | 60,0 | 44,50 | 15,0 | 21,0 | 16,30 | 10,0 | M6 | 3,00 | 0,14 | |
| ER25 SRK 6X35 JET2 | ER25 | 6,00 | 35,0 | 26,00 | 18,0 | 24,0 | 14,70 | 11,0 | M8 | 4,00 | 0,11 | |
| ER25 SRK 6X60 JET2 | ER25 | 6,00 | 60,0 | 44,50 | 18,0 | 24,0 | 17,30 | 11,0 | M8 | 4,00 | 0,14 | |
| ER25 SRK 8X35 JET2 | ER25 | 8,00 | 35,0 | 26,50 | 25,0 | 30,0 | 17,80 | 14,0 | M10 | 5,00 | 0,12 | |
| ER25 SRK 8X60 JET2 | ER25 | 8,00 | 60,0 | 39,50 | 25,0 | 31,0 | 17,90 | 14,0 | M10 | 5,00 | 0,16 | |
| ER32 SRK 3X35 JET2 | ER32 | 3,00 | 35,0 | 22,50 | 10,0 | 16,0 | 13,20 | 10,0 | M6 | 3,00 | 0,16 | |
| ER32 SRK 3X60 JET2 | ER32 | 3,00 | 60,0 | 44,50 | 10,0 | 16,0 | 16,30 | 10,0 | M6 | 3,00 | 0,19 | |
| ER32 SRK 3X85 JET2 | ER32 | 3,00 | 85,0 | 70,00 | 10,0 | 16,0 | 19,80 | 10,0 | M6 | 3,00 | 0,25 | |
| ER32 SRK 4X35 JET2 | ER32 | 4,00 | 35,0 | 23,50 | 12,0 | 18,0 | 13,40 | 10,0 | M6 | 3,00 | 0,16 | |
| ER32 SRK 4X60 JET2 | ER32 | 4,00 | 60,0 | 44,50 | 12,0 | 18,0 | 16,30 | 10,0 | M6 | 3,00 | 0,20 | |
| ER32 SRK 4X85 JET2 | ER32 | 4,00 | 85,0 | 70,00 | 12,0 | 18,0 | 19,80 | 10,0 | M6 | 3,00 | 0,20 | |
| ER32 SRK 5X35 JET2 | ER32 | 5,00 | 35,0 | 24,50 | 15,0 | 21,0 | 13,50 | 10,0 | M6 | 3,00 | 0,15 | |
| ER32 SRK 5X60 JET2 | ER32 | 5,00 | 60,0 | 44,50 | 15,0 | 21,0 | 16,30 | 10,0 | M6 | 3,00 | 0,19 | |
| ER32 SRK 5X85 JET2 | ER32 | 5,00 | 85,0 | 70,00 | 15,0 | 21,0 | 19,80 | 10,0 | M6 | 3,00 | 0,25 | |
| ER32 SRK 6X35 JET2 | ER32 | 6,00 | 35,0 | 25,50 | 18,0 | 24,0 | 14,70 | 11,0 | M8 | 4,00 | 0,15 | |
| ER32 SRK 6X60 JET2 | ER32 | 6,00 | 60,0 | 45,00 | 18,0 | 24,0 | 17,30 | 11,0 | M8 | 4,00 | 0,19 | |
| ER32 SRK 6X85 JET2 | ER32 | 6,00 | 85,0 | 69,50 | 18,0 | 26,0 | 20,80 | 11,0 | M8 | 4,00 | 0,25 | |
| ER32 SRK 8X35 JET2 | ER32 | 8,00 | 35,0 | 33,00 | 25,0 | 31,0 | 18,80 | 14,0 | M10 | 5,00 | 0,17 | |
| ER32 SRK 8X60 JET2 | ER32 | 8,00 | 60,0 | 45,00 | 25,0 | 31,0 | 20,40 | 14,0 | M10 | 5,00 | 0,22 | |
| ER32 SRK 8X85 JET2 | ER32 | 8,00 | 85,0 | 65,00 | 25,0 | 31,0 | 23,20 | 14,0 | M10 | 5,00 | 0,29 | |
| ER32 SRK 10X35 JET2 | ER32 | 10,00 | 35,0 | 34,00 | 30,0 | 35,0 | 20,80 | 16,0 | M12 | 6,00 | 0,18 | |
| ER32 SRK 10X60 JET2 | ER32 | 10,00 | 60,0 | 44,50 | 30,0 | 36,0 | 22,40 | 16,0 | M12 | 6,00 | 0,24 | |
| ER32 SRK 10X85 JET2 | ER32 | 10,00 | 85,0 | 49,50 | 30,0 | 36,0 | 23,00 | 16,0 | M12 | 6,00 | 0,30 | |
| ER32 SRK 12X35 JET2 | ER32 | 12,00 | 35,0 | 28,00 | 32,0 | - | 24,00 | 20,0 | - | - | 0,21 | |
| ER32 SRK 12X60 JET2 | ER32 | 12,00 | 60,0 | 28,00 | 32,0 | 38,0 | 24,00 | 20,0 | M14 | 6,00 | 0,32 | |
| ER32 SRK 12X85 JET2 | ER32 | 12,00 | 85,0 | 28,00 | 32,0 | 38,0 | 24,00 | 20,0 | M14 | 6,00 | 0,32 |
- Только для твердосплавного инструмента.
(1) Размер шестигранного ключа для заднего запорного винта
B156-157 B154-155 B149-151
