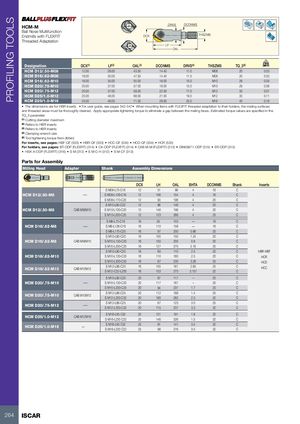

Каталог Iscar торцевые фрезы 2022 - страница 80

PROFILING TOOLS HCM-M DRVS DCONMS Ball Nose Multifunction Endmills with FLEXFIT DCX THSZMS Threaded Adaptation LF OAL Designation DCX(1) LF(2) OAL(3) DCONMS DRVS(4) THSZMS TQ_3(5) kg HCM D12/.50-M08 12.00 26.00 43.50 14.40 11.0 M08 20 0.03 HCM D16/.62-M08 16.00 30.00 47.50 14.40 11.0 M08 20 0.03 HCM D16/.62-M10 16.00 35.00 55.00 18.00 15.0 M10 29 0.05 HCM D20/.75-M10 20.00 37.00 57.00 18.00 15.0 M10 29 0.06 HCM D20/.75-M12 20.00 37.00 59.00 22.50 17.0 M12 33 0.07 HCM D25/1.0-M12 25.00 46.00 68.00 21.00 19.0 M12 33 0.11 HCM D25/1.0-M16 25.00 46.00 71.00 29.00 25.0 M16 40 0.16 • The dimensions are for HBR inserts • For user guide, see pages 542-547• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) Clamping wrench size (5) Tool tightening torque Nxm (lbfxin) For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) Parts for Assembly Milling Head Adapter Shank Assembly Dimensions DCX LH OAL BHTA DCONMS Shank Inserts S M08-L73-C16 12 51 99 4 16 C HCM D12/.50-M8 –— S M08-L128-C16 12 106 154 4 16 C S M08-L170-C20 12 93 196 4 20 C S M10-L80-C20 12 96 146 4 20 C HCM D12/.50-M8 CAB M08M10 S M10-L130-C20 12 146 196 4 20 C S M10-L200-C25 12 123 266 4 25 C S M8-L73-C16 16 55 103 — 16 C HCM D16/.62-M8 –— S M8-L128-C16 16 110 158 — 16 C S M8-L170-C20 16 97 200 0.96 20 C S M10-L80-C20 16 100 150 1.24 20 C HCM D16/.62-M8 CAB M08M10 S M10-L130-C20 16 150 200 0.8 20 C S M10-L200-C25 16 127 270 2.16 25 C S M10-L80-C20 16 60 110 2.5 20 C HBR HBF HCM D16/.62-M10 S M10-L130-C20 16 110 160 2.5 20 C HCR S M10-L200-C25 16 87 230 3.26 25 C HCD HCM D16/.62-M10 CAB M10M12 S M12-L86-C25 16S M12-C32-L20016105 161 2.651532753.1572532 CC HCC S M10-L80-C20 20 67 117 – 20 C HCM D20/.75-M10 –— S M10-L130-C20 20 117 167 – 20 C S M10-L200-C25 20 94 237 1.7 25 C HCM D20/.75-M10 CAB M10M12 S M12-L86-C25 20S M12-L200-C3220112 168 1.41602822.3 2532 CC HCM D20/.75-M12 S M12-L86-C25 20 67 123 3.0 25 C–—S M12-L200-C32201152373.332C HCM D25/1.0-M12 CAB M12M16 S M16-L95 C32 25S M16-L230 C3225131 191 1.81463261.5 3232 CC HCM D25/1.0-M16 S M16-L95 C32 25 81 141 3.5 32 C—S M16-L230 C3225962763.532C 264 ISCAR
