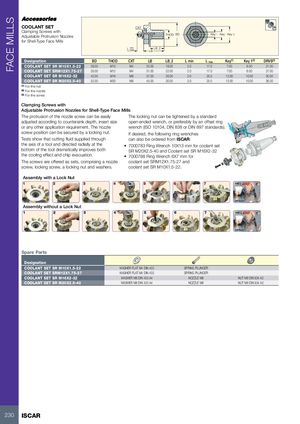

COOLANT SET
CXT
Clamping Screws with
| Adjustable Protrusion Nozzles | THOD BD | Key 1 | Key | Key 2 |
| for Shell-Type Face Mills |
| L min | LB_2 | |
| max | LB |
| Designation | BD | THOD | CXT | LB | LB_2 | L min | L | Key(1) | Key 1(2) | DRVS(3) |
| max | ||||||||||
| COOLANT SET SR M10X1.5-22 | 28.00 | M10 | M4 | 25.00 | 18.00 | 2.0 | 17.0 | 7.00 | 6.00 | 21.00 |
| COOLANT SET SRM12X1.75-27 | 35.00 | M12 | M4 | 31.00 | 22.00 | 2.0 | 17.0 | 7.00 | 6.00 | 27.00 |
| COOLANT SET SR M16X2-32 | 42.00 | M16 | M8 | 37.00 | 26.00 | 3.0 | 25.0 | 13.00 | 10.00 | 30.00 |
| COOLANT SET SR M20X2.5-40 | 52.00 | M20 | M8 | 45.00 | 30.00 | 3.0 | 25.0 | 13.00 | 10.00 | 36.00 |
(1) For the nut (2) For the nozzle (3) For the screw Clamping Screws with
Adjustable Protrusion Nozzles for Shell-Type Face Mills
| The protrusion of the nozzle screw can be easily | The locking nut can be tightened by a standard |
| adjusted according to countersink depth, insert size | open-ended wrench, or preferably by an offset ring |
| or any other application requirement. The nozzle | wrench (ISO 10104, DIN 838 or DIN 897 standards). |
| screw position can be secured by a locking nut. | If desired, the following ring wrenches |
| Tests show that cutting fluid supplied through | can also be ordered from ISCAR: |
the axis of a tool and directed radially at the • 7000783 Ring Wrench 10X13 mm for coolant set bottom of the tool dramatically improves both SR M20X2.5-40 and Coolant set SR M16X2-32 the cooling effect and chip evacuation. • 7000788 Ring Wrench 6X7 mm for The screws are offered as sets, comprising a nozzle coolant set SRM12X1.75-27 and
screw, locking screw, a locking nut and washers. coolant set SR M10X1.5-22.
Assembly with a Lock Nut
11 22 33 44 55 66 77
7103284 06/08
Assembly without a Lock Nut
11 22 33 44 55 66 77
Spare Parts
| Designation | |||
| COOLANT SET SR M10X1.5-22 | WASHER FLAT M4 DIN 433 | SPRING PLUNGER | |
| COOLANT SET SRM12X1.75-27 | WASHER FLAT M4 DIN 433 | SPRING PLUNGER | |
| COOLANT SET SR M16X2-32 | WASHER M8 DIN 433 A4 | NOZZLE M8 | NUT M8 DIN 934 A2 |
| COOLANT SET SR M20X2.5-40 | WASHER M8 DIN 433 A4 | NOZZLE M8 | NUT M8 DIN 934 A2 |
