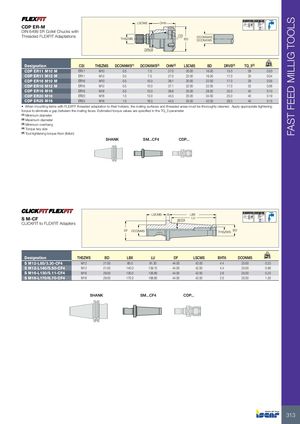

FAST FEED MILLIG TOOLS A 0.003 A 58-60 HRc LSCMS OHN CDP ER-M DIN 6499 ER Collet Chucks with Threaded FLEXFIT Adaptations CSI DCONNWS THSZMS BD DCONXWS DRVS kg Designation CSI THSZMS DCONNWS(1) DCONXWS(2) OHN(3) LSCMS BD DRVS(4) TQ_3(5) CDP ER11 M10 M ER11 M10 0.5 7.0 27.0 20.00 16.00 15.0 29 0.03 CDP ER11 M12 M ER11 M12 0.5 7.0 27.0 22.00 16.00 17.0 33 0.04 CDP ER16 M10 M ER16 M10 0.5 10.0 38.1 20.00 22.00 17.0 29 0.05 CDP ER16 M12 M ER16 M12 0.5 10.0 37.1 22.00 22.00 17.0 33 0.06 CDP ER16 M16 ER16 M16 0.5 10.0 36.6 25.00 28.00 25.0 40 0.10 CDP ER20 M16 ER20 M16 1.0 13.0 45.5 25.00 34.00 25.0 40 0.19 CDP ER25 M16 ER25 M16 1.0 16.0 44.5 25.00 42.00 28.0 40 0.15 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Minimum diameter (2) Maximum diameter (3) Minimum overhang (4) Torque key size (5) Tool tightening torque Nxm (lbfxin) SHANK SM...CF4 CDP... A 0.005 A 58-60 HRc LSCMS 8 LBX S M-CF LU BHTA CLICKFIT to FLEXFIT Adapters DF DCONMS BD THSZWS kg Designation THSZWS BD LBX LU DF LSCMS BHTA DCONMS S M12-L85/3.30-CF4 M12 21.00 85.0 81.30 44.00 42.00 4.4 25.00 0.23 S M12-L140/5.50-CF4 M12 21.00 140.0 139.10 44.00 42.00 4.4 25.00 0.98 S M16-L130/5.11-CF4 M16 29.00 130.0 126.80 44.00 42.00 2.6 25.00 0.23 S M16-L170/6.70-CF4 M16 29.00 170.0 168.60 44.00 42.00 2.0 25.00 1.30 SHANK SM...CF4 CDP... 313
