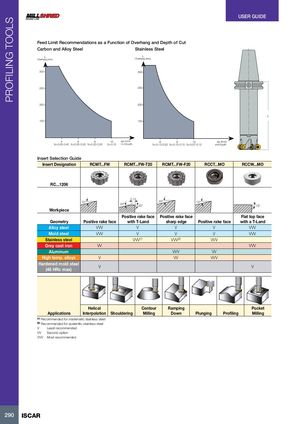

PROFILING TOOLS USER GUIDE Feed Limit Recommendations as a Function of Overhang and Depth of Cut Carbon and Alloy Steel Stainless Steel LOverhang (mm) LOverhang (mm) 300 300 250 250 200 200 L 150 150 4 6 8 10 ap (mm) 6 8 10 ap (mm) fz=0.30-0.40 fz=0.25-0.30 fz=0.20-0.25 fz=0.15 mm/tooth fz=0.12-0.20 fz=0.10-0.15 fz=0.07-0.12 mm/tooth Insert Selection Guide Insert Designation RCMT...FW RCMT...FW-T20 RCMT...FW-F20 RCCT...MO RCCW...MO RC...1206 0.15 12° 20°20°20° 12° 15° Workpiece Positive rake face Positive rake face Flat top face Geometry Positive rake face with T-Land sharp edge Positive rake face with a T-Land Alloy steel VVV V V V VVV Mold steel VVV V V V VVV Stainless steel VVV(1) VVV(2) VVV Grey cast iron VV VVV Aluminum VVV VV High temp. alloys V VV VVV Hardened mold steel(45 HRc max) V V Helical Contour Ramping Pocket Applications Interpolation Shouldering Milling Down Plunging Profiling Milling (1) Recommended for martensitic stainless steel (2) Recommended for austenitic stainless steel V Least recommended VV Second option VVV Most recommended 290 ISCAR
