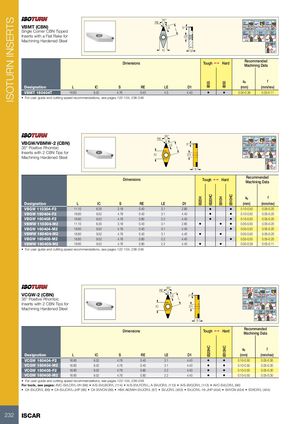

ISOTURN INSERTS 35° RE 35° 48° MAX 95º MAX VBMT (CBN) LE L 5° 107.5º 95º Single Corner CBN Tipped 31° 52° 50° MAX MAX MAX Inserts with a Flat Rake for D1 93° Machining Hardened Steel 112° 91° 70°MAX IC S 72.5 º Recommended Dimensions Tough 1 Hard Machining Data ap f IB55 IB50 Designation L IC S RE LE D1 (mm) (mm/rev) VBMT 160404T 16.60 9.52 4.76 0.40 4.5 4.40 • • 0.05-0.39 0.05-0.11 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 35° RE 35° 48° MAX 95º MAX VBGW/VBMW-2 (CBN) LE 5° 107.5º 95º 35° Positive Rhombic L 31° 52° 50° MAX MAX MAX Inserts with 2 CBN Tips for IC D1 93° Machining Hardened Steel 112° 91° 70°MAX 72.5 º S Recommended Dimensions Tough 1 Hard Machining Data IB20HC IB10HC ap f IB20H IB10H Designation L IC S RE LE D1 (mm) (mm/rev) VBGW 110304-F2 11.10 6.35 3.18 0.40 3.1 2.80 • • 0.10-0.50 0.05-0.20 VBGW 160404-F2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.20 VBGW 160408-F2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.20 VBMW 110304-M2 11.10 6.35 3.18 0.40 3.1 2.80 • • • 0.05-0.50 0.05-0.20 VBGW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • 0.05-0.50 0.05-0.20 VBMW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.05-0.50 0.05-0.20 VBGW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • 0.05-0.50 0.05-0.20 VBMW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.05-0.39 0.05-0.11 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 35° RE 35° MAX 95º VCGW-2 (CBN) LE 7° 117.5° 107.5º 35° Positive Rhombic L 31° 52° 48° MAX MAX Inserts with 2 CBN Tips for MAX IC D1 Machining Hardened Steel 95º 112° 91° 50° 70°MAX MAX 93° 72.5 º S Recommended Dimensions Tough 1 Hard Machining Data IB20HC IB10HC ap f Designation L IC S RE LE D1 (mm) (mm/rev) VCGW 160404-F2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.30 VCGW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.30 VCGW 160408-F2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.30 VCGW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: AVC-SVLCR/L-VH (98) • A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96) • C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454) 232 ISCAR
