| DCONWS | OHX | DCON CNT | S DCON | DCONWS MS | ||||
| AV-D | O | AL | ||||||

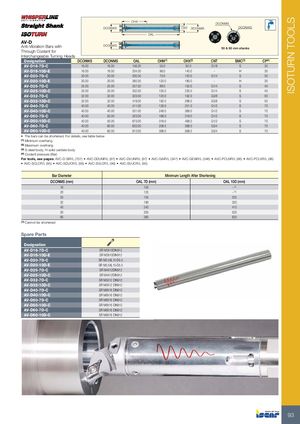

| Anti-Vibration Bars with Through Coolant for Interchangeable Turning Hea | ds | DCONWS | 50 | & 60 mm shanks | ||||
| Designation | DCONWS | DCONMS | OAL | OHN(1) | OHX(2) | CNT | BMC(3) | CP(4) |
| AV-D16-7D-C | 16.00 | 16.00 | 156.30 | 55.0 | 92.0 | G1/8 | S | 30 |
| AV-D16-10D-E | 16.00 | 16.00 | 204.30 | 96.0 | 140.0 | - | H | 30 |
| AV-D20-7D-C | 20.00 | 20.00 | 200.30 | 70.0 | 120.0 | G1/4 | S | 30 |
| AV-D20-10D-E | 20.00 | 20.00 | 260.30 | 120.0 | 180.0 | - | H | 30 |
| AV-D25-7D-C | 25.00 | 25.00 | 257.50 | 88.0 | 155.0 | G1/4 | S | 40 |
| AV-D25-10D-C | 25.00 | 25.00 | 332.50 | 155.0 | 230.0 | G1/4 | S | 40 |
| AV-D32-7D-C | 32.00 | 32.00 | 323.00 | 120.0 | 192.0 | G3/8 | S | 50 |
| AV-D32-10D-C | 32.00 | 32.00 | 419.00 | 192.0 | 288.0 | G3/8 | S | 50 |
| AV-D40-7D-C | 40.00 | 40.00 | 411.00 | 128.0 | 251.0 | G1/2 | S | 70 |
| AV-D40-10D-C | 40.00 | 40.00 | 531.00 | 248.0 | 368.0 | G1/2 | S | 70 |
| AV-D50-7D-C | 40.00 | 50.00 | 523.00 | 168.0 | 318.0 | G1/2 | S | 70 |
| AV-D50-10D-C | 40.00 | 50.00 | 673.00 | 318.0 | 468.0 | G1/2 | S | 70 |
| AV-D60-7D-C | 40.00 | 60.00 | 633.00 | 208.0 | 388.0 | G3/4 | S | 70 |
| AV-D60-10D-C | 40.00 | 60.00 | 813.00 | 388.0 | 568.0 | G3/4 | S | 70 |
- The bars can be shortened. For details, see table below
(1) Minimum overhang (2) Maximum overhang (3) S-steel body, H-solid carbide body (4) Coolant pressure (Bar)
For tools, see pages: AVC-D-SIR/L (707) AVC-DDUNR/L (97) AVC-DVUNR/L (97) AVC-GAIR/L (347) AVC-GEAIR/L (346) AVC-PCLNR/L (96) AVC-PCLXR/L (96)
- AVC-SCLCR/L (95)
- AVC-SDUCR/L (95)
- AVC-SVLCR/L (96)
- AVC-SVUCR/L (95)
| Bar Diameter | Minimum Length After Shortening |
| DCONMS (mm) | OAL 7D (mm) OAL 10D (mm) |
| 16 | 100 -(1) |
| 20 | 125 -(1) |
| 25 | 155 255 |
| 32 | 190 320 |
| 40 | 240 410 |
| 50 | 305 520 |
| 60 | 380 630 |
(1) Cannot be shortened
Spare Parts
Designation
| AV-D16-7D-C | SR M3X10DIN912 |
| AV-D16-10D-E | SR M3X10DIN912 |
| AV-D20-7D-C | SR M3.5XL10-D5.5 |
| AV-D20-10D-E | SR M3.5XL10-D5.5 |
| AV-D25-7D-C | SR M4X12DIN912 |
| AV-D25-10D-C | SR M4X12DIN912 |
| AV-D32-7D-C | SR M5X12 DIN912 |
| AV-D32-10D-C | SR M5X12 DIN912 |
| AV-D40-7D-C | SR M6X16 DIN912 |
| AV-D40-10D-C | SR M6X16 DIN912 |
| AV-D50-7D-C | SR M6X16 DIN912 |
| AV-D50-10D-C | SR M6X16 DIN912 |
| AV-D60-7D-C | SR M6X16 DIN912 |
| AV-D60-10D-C | SR M6X16 DIN912 |
