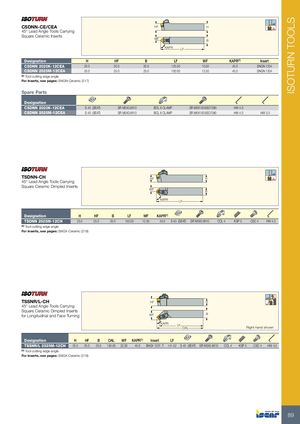

| CSDNN-CE/CEA 45° Lead Angle Tools Carrying | HF | H | 45° | |||
| Square Ceramic Inserts | WF | B | ||||
| KAPR LF | ||||||
| Designation | H | HF | B LF | WF | KAPR(1) | Insert |
| CSDNN 2020K-12CEA | 20.0 | 20.0 | 20.0 125.00 | 10.00 | 45.0 | SNGN 1204 |
| CSDNN 2525M-12CEA | 25.0 | 25.0 | 25.0 150.00 | 12.50 | 45.0 | SNGN 1204 |
(1) Tool cutting edge angle
For inserts, see pages: SNGN-Ceramic (217)
Spare Parts
| Designation | ||||||
| CSDNN 2020K-12CEA | S 40 (SEAT) | SR M5X0.8X10 | BCL 6 CLAMP | SR M6X1X25ISO7380 | HW 4.0 | |
| CSDNN 2525M-12CEA | S 40(SEAT) | SR M5X0.8X10 | BCL 6 CLAMP | SR M6X1X25ISO7380 | HW 4.0 | HW 3.0 |
TSDNN-CH
45° Lead Angle Tools Carrying
Square Ceramic Dimpled Inserts
Designation H
TSDNN 2525M-12CH 25.0 (1) Tool cutting edge angle
For inserts, see pages: SNGX-Ceramic (218)
HF
25.0
B
25.0
LF
150.00
45° HF H
WF B KAPR LF
WF KAPR(1)
12.50 45.0 S 40 (SEAT) SR M5X0.8X10 CCL 4 KSP 5 CSC 4 HW 4.0
45º TSSNR/L-CH 45º HF H
45° Lead Angle Tools Carrying
Square Ceramic Dimpled Inserts
| for Longitudinal and Face Turning | WF | B | ||||
| KAPR | ||||||
| LF | ||||||
| OAL | Right-hand shown |
| Designation | H | HF | B | OAL | WF | KAPR(1) | Insert | LF | |||||
| TSSNR/L 2525M-12CH | 25.0 | 25.0 | 25.0 | 150.00 | 32.00 | 45.0 | SNGX 1207..T 141.52 S 40 (SEAT) SR M5X0.8X10 | CCL 4 | KSP 5 | CSC 4 | HW 4.0 |
(1) Tool cutting edge angle For inserts, see pages: SNGX-Ceramic (218)
