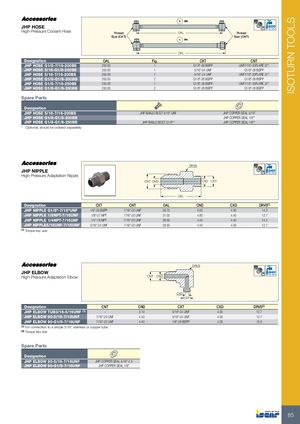

Каталог Iscar токарные державки ISO 2022 - страница 87

Предыдущая страница Следующая страница

Навигация

JHP HOSE High-Pressure Coolant HoseThread Size (CXT)2 1 BB BS OAL OALThread Size (CNT) Bar Max
DesignationOALFig.CXTCNT
JHP HOSE G1/8-7/16-200BS200.001G1/8"-28 BSPPUNF7/16"-20FLARE 37°
JHP HOSE 5/16-G1/8-200BS200.0015/16"-24 UNFG1/8"-28 BSPP
JHP HOSE 5/16-7/16-200BS200.0015/16"-24 UNFUNF7/16"-20FLARE 37°
JHP HOSE G1/8-G1/8-200BB200.002G1/8"-28 BSPPG1/8"-28 BSPP
JHP HOSE G1/8-7/16-250BS250.001G1/8"-28 BSPPUNF7/16"-20FLARE 37°
JHP HOSE G1/8-G1/8-250BB250.002G1/8"-28 BSPPG1/8"-28 BSPP
Spare Parts
Designation
JHP HOSE 5/16-7/16-200BSJHP BANJO BOLT 5/16" UNFJHP COPPER SEAL 5/16"
JHP HOSE G1/8-G1/8-200BBJHP COPPER SEAL 1/8"
JHP HOSE G1/8-G1/8-250BBJHP BANJO BOLT G1/8"JHP COPPER SEAL 1/8"

* Optional, should be ordered separately

JHP NIPPLE High-Pressure Adaptation NippleCXD CXT DRVS CND CNTBar Max
OAL
DesignationCXTCNT OAL CND CXDDRVS(1)
JHP NIPPLE G1/8"-7/16"UNF1/8"-28 BSPP7/16"-20 UNF 28.75 4.00 4.0014.3
JHP NIPPLE 1/8NPT-7/16UNF1/8"-27 NPT7/16"-20 UNF 31.00 4.80 4.4012.7
JHP NIPPLE 1/4NPT-7/16UNF1/4"-18 NPT7/16"-20 UNF 36.00 4.40 4.4014.3
JHP NIPPLE5/16UNF-7/16UNF5/16"-24 UNF7/16"-20 UNF 29.50 4.40 4.0012.7

(1) Torque key size

JHP ELBOW High-Pressure Adaptation ElbowDRVS CXD CNT CND CXTBar Max
DesignationCNTCND CXTCXDDRVS(2)
JHP ELBOW TUB3/16-5/16UNF(1)-3.10 5/16"-24 UNF4.0012.7
JHP ELBOW 90-5/16-7/16UNF7/16"-20 UNF4.40 5/16"-24 UNF4.0012.7
JHP ELBOW 90-G1/8-7/16UNF7/16"-20 UNF4.40 1/8"-28 BSPP4.0015.9

(1) For connection to a simple 3/16" stainless or copper tube (2) Torque key size

Spare Parts

Designation

JHP ELBOW 90-5/16-7/16UNF JHP COPPER SEAL 5/16"-2.5 JHP ELBOW 90-G1/8-7/16UNF JHP COPPER SEAL 1/8"
