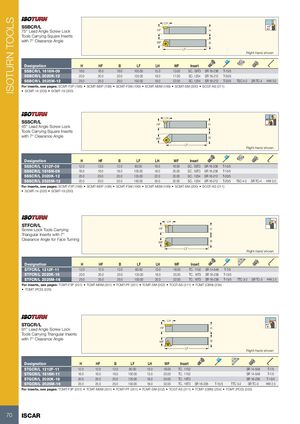

| SSBCR/L 75° Lead Angle Screw Lock | LH HF | H | 75º | |||||||||
| Tools Carrying Square Inserts | ||||||||||||
| with 7° Clearance Angle | WF | B | ||||||||||
| LF | R | ight-hand | shown | |||||||||
| Designation | H | HF | B | LF | LH | WF | Insert | |||||
| SSBCR/L 1616H-09 | 16.0 | 16.0 | 16.0 | 100.00 | 15.0 | 13.00 | SC.. 09T3 | SR 16-236 | T-15/5 | |||
| SSBCR/L 2020K-12 | 20.0 | 20.0 | 20.0 | 125.00 | 19.0 | 17.00 | SC..1204 | SR 16-212 | T-20/5 | |||
| SSBCR/L 2525M-12 | 25.0 | 25.0 | 25.0 | 150.00 | 19.0 | 22.00 | SC..1204 | SR 16-212 | T-20/5 | TSC 4-2 | SR TC-4 | HW 3.0 |
For inserts, see pages: SCMT-F3P (198) SCMT-M3P (199) SCMT-F3M (199) SCMT-M3M (199) SCMT-SM (200) SCGT-AS (211)
- SCMT-14 (200)
- SCMT-19 (200)
| SSSCR/L 45° Lead Angle Screw Lock | L HF | H | H | 45º 45º | ||||||||
| Tools Carrying Square Inserts | ||||||||||||
| with 7° Clearance Angle | WF | B | ||||||||||
| LF | R | ight-hand | shown | |||||||||
| Designation | H | HF | B | LF | LH | WF | Insert | |||||
| SSSCR/L 1212F-09 | 12.0 | 12.0 | 12.0 | 80.00 | 18.0 | 16.00 | SC.. 09T3 | SR 16-236 | T-15/5 | |||
| SSSCR/L 1616H-09 | 16.0 | 16.0 | 16.0 | 100.00 | 18.0 | 20.00 | SC.. 09T3 | SR 16-236 | T-15/5 | |||
| SSSCR/L 2020K-12 | 20.0 | 20.0 | 20.0 | 125.00 | 22.0 | 25.00 | SC.. 1204 | SR 16-212 | T-20/5 | |||
| SSSCR/L 2525M-12 | 25.0 | 25.0 | 25.0 | 150.00 | 25.0 | 32.00 | SC.. 1204 | SR 16-212 | T-20/5 | TSC 4-2 | SR TC-4 | HW 3.0 |
For inserts, see pages: SCMT-F3P (198) SCMT-M3P (199) SCMT-F3M (199) SCMT-M3M (199) SCMT-SM (200) SCGT-AS (211)
- SCMT-14 (200)
- SCMT-19 (200)
| TFCR/L | LH | 91º | ||||||||||
| crew Lock Tools Carrying iangular Inserts with 7° | HF | H | ||||||||||
| learance Angle for Face Turni | ng | WF | B | |||||||||
| LF | R | ight-hand | shown | |||||||||
| Designation | H | HF | B | LF | LH | WF | Insert | |||||
| STFCR/L 1212F-11 | 12.0 | 12.0 | 12.0 | 80.00 | 13.0 | 16.00 | TC.. 1102 | SR 14-548 | T-7/5 | |||
| STFCR/L 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 18.0 | 25.00 | TC.. 16T3 | SR 16-236 | T-15/5 | |||
| STFCR/L 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 20.0 | 32.00 | TC.. 16T3 | SR 16-236 | T-15/5 | TTC 3-2 | SR TC-3 | HW 2.5 |
For inserts, see pages: TCMT-F3P (201) TCMT-M3M (201) TCMT-PF (201) TCMT-SM (202) TCGT-AS (211) TCMT (CBN) (234)
- TCMT (PCD) (223)
| STGCR/L 91° Lead Angle Screw Lock | LH HF | H | 91º | |||||||||
| Tools Carrying Triangular Inserts | ||||||||||||
| with 7° Clearance Angle | WF | LF | B | Right-hand | shown | |||||||
| Designation | H | HF | B | LF | LH | WF | Insert | |||||
| STGCR/L 1212F-11 | 12.0 | 12.0 | 12.0 | 80.00 | 13.0 | 16.00 | TC.. 1102 | SR 14-548 | T-7/5 | |||
| STGCR/L 1616H-11 | 16.0 | 16.0 | 16.0 | 100.00 | 13.0 | 20.00 | TC.. 1102 | SR 14-548 | T-7/5 | |||
| STGCR/L 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 18.0 | 25.00 | TC.. 16T3 | SR 16-236 | T-15/5 | |||
| STGCR/L 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 18.0 | 32.00 | TC.. 16T3 | SR 16-236 | T-15/5 | TTC 3-2 | SR TC-3 | HW 2.5 |
For inserts, see pages: TCMT-F3P (201) TCMT-M3M (201) TCMT-PF (201) TCMT-SM (202) TCGT-AS (211) TCMT (CBN) (234) TCMT (PCD) (223)
